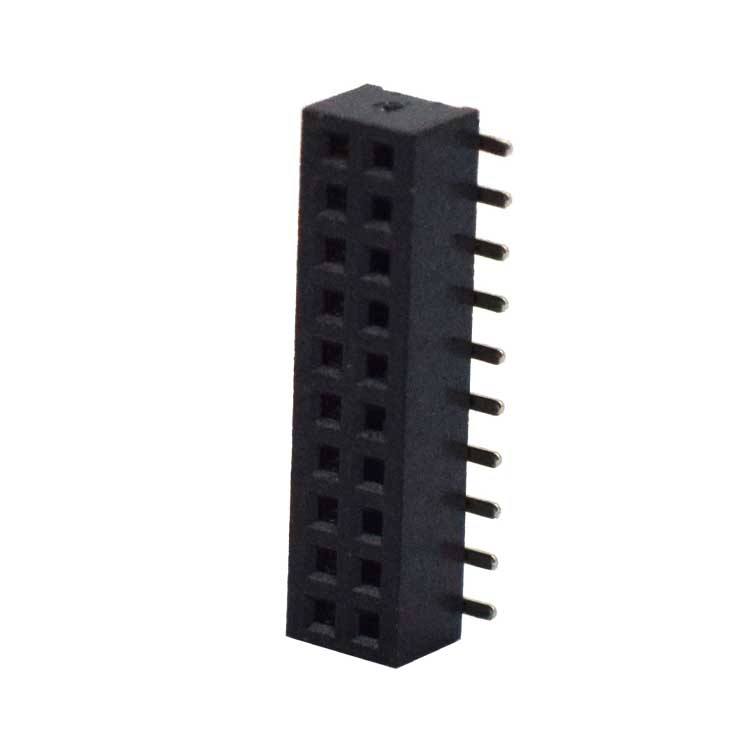

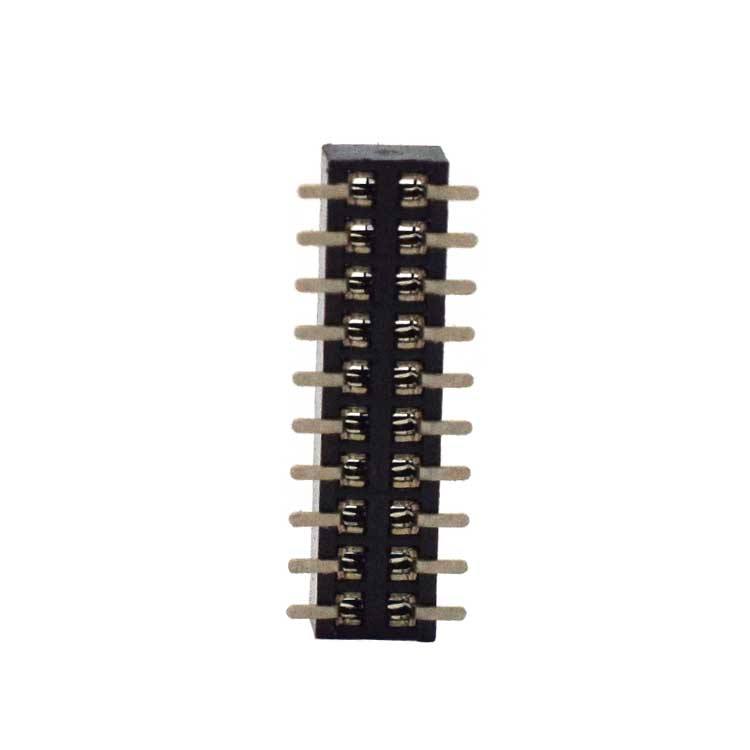

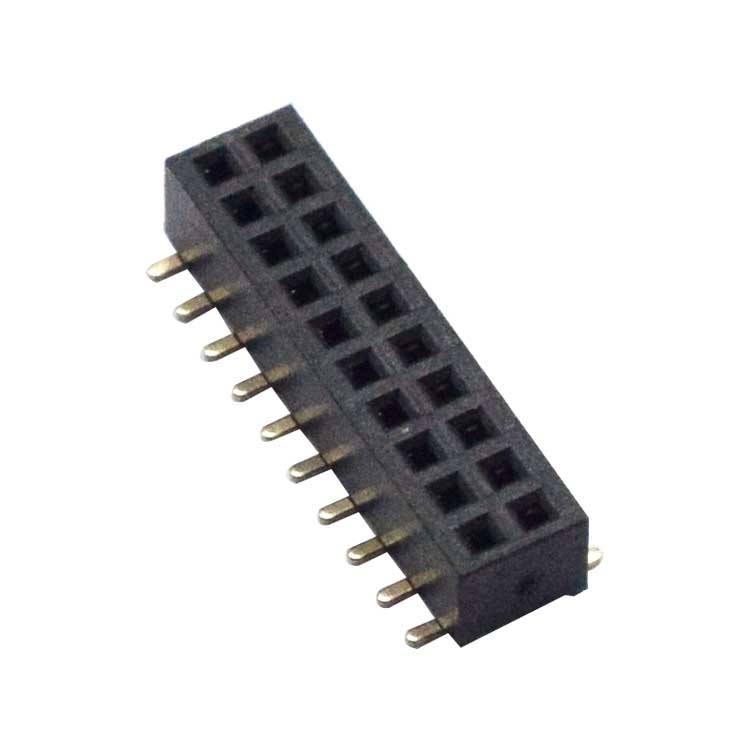

1.0mm pitch dual SMD SMT female pin header socket connector double support customization

Short Description:

Place of Origin China

Brand SHOUHAN

product name pin header connector

model number 1.0mm pin header

current rating 0.75A

Withstand voltage AC 500V

Insulation resistance 1000MΩ Min

contact resistance 20mΩ Max

Operating Temperature -40℃~+105℃

Insrlator Material polyester

Contact material phosphor bronze
