    1.0mm pitch dual SMD SMT female pin header socket connector

    1.0mm pitch dual SMD SMT female pin header socket connector Featured Image
    • 1.0mm pitch dual SMD SMT female pin header socket connector
    • 1.0mm pitch dual SMD SMT female pin header socket connector
    • 1.0mm pitch dual SMD SMT female pin header socket connector
    • 1.0mm pitch dual SMD SMT female pin header socket connector

    Short Description:

    product name
    pin header connector
    model number
    1.0mm pin header
    current rating
    0.75A
    Withstand voltage
    AC 500V
    Insulation resistance
    1000MΩ Min
    contact resistance
    20mΩ Max
    Operating Temperature
    -40℃~+105℃
    Insrlator Material
    polyester
    Contact material
    phosphor bronze

    Product Detail

    Product Tags

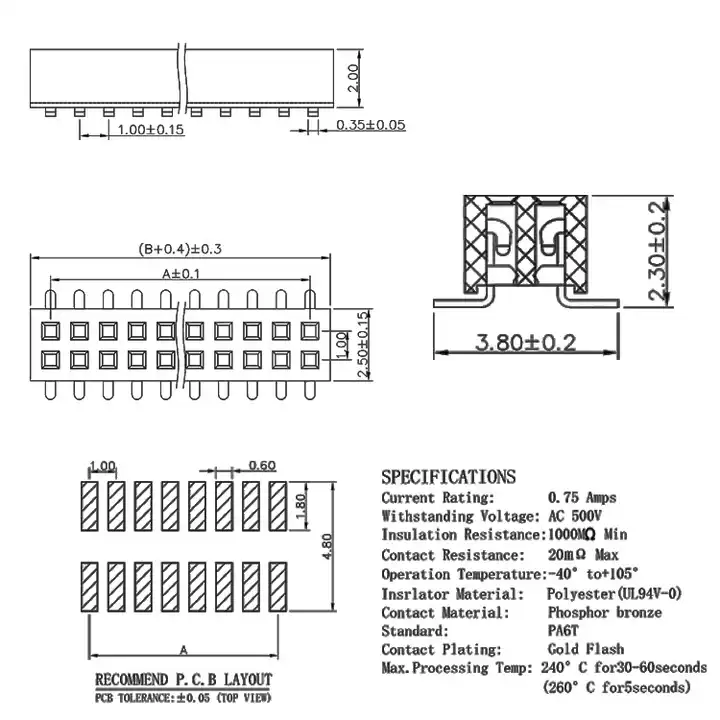

    Hcb7e594ef45345a1a64fe86264f5b4baD.jpg_720x720q50
