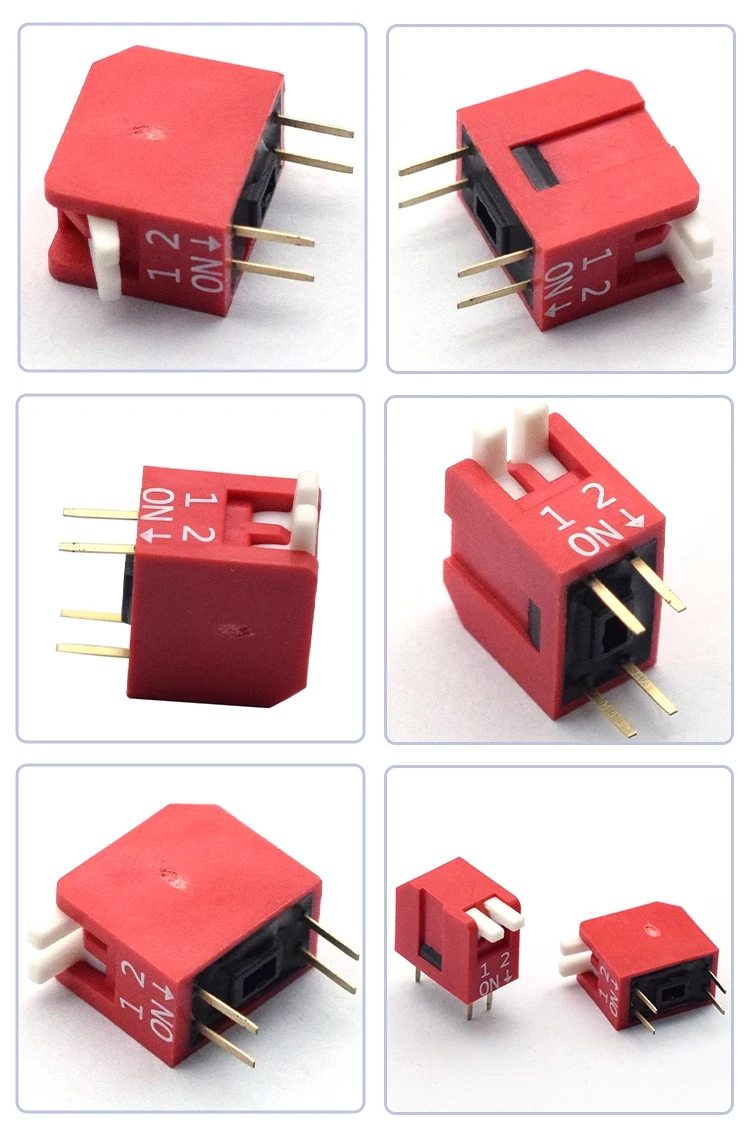

    1-12 positions 2.54mm pitch dip switch straight insert flat code dial switch

    1-12 positions 2.54mm pitch dip switch straight insert flat code dial switch Featured Image
    • 1-12 positions 2.54mm pitch dip switch straight insert flat code dial switch
    • 1-12 positions 2.54mm pitch dip switch straight insert flat code dial switch
    • 1-12 positions 2.54mm pitch dip switch straight insert flat code dial switch
    • 1-12 positions 2.54mm pitch dip switch straight insert flat code dial switch
    • 1-12 positions 2.54mm pitch dip switch straight insert flat code dial switch

    Short Description:

    product name DIP Switch
    model number HJ12-DP-08
    Max. Voltage 50VDC
    Max. Current 100mA
    Number of Positions 1/2/3/4/5/6/7/8/9/10/12 positions
    Color Red Blue Black
    Material Plastic,copper
    Operation Temperature -25 ℃ to 85 ℃
    Pitch 1.27 mm / 2.54mm

    Product Detail

    Product Tags

    Hf0798d85257b4182a39aded33aef3edc0.webp H59f073f5b35343e8990e6df0e87279ddF.webp
