    1.27/2.54mm pitch DS series DIP switch Red Blue Black 1/2/3/4/5/6/7/8/9/10/12 positions dial switch custom

    1.27/2.54mm pitch DS series DIP switch Red Blue Black 1/2/3/4/5/6/7/8/9/10/12 positions dial switch custom Featured Image
    • 1.27/2.54mm pitch DS series DIP switch Red Blue Black 1/2/3/4/5/6/7/8/9/10/12 positions dial switch custom
    • 1.27/2.54mm pitch DS series DIP switch Red Blue Black 1/2/3/4/5/6/7/8/9/10/12 positions dial switch custom
    • 1.27/2.54mm pitch DS series DIP switch Red Blue Black 1/2/3/4/5/6/7/8/9/10/12 positions dial switch custom
    • 1.27/2.54mm pitch DS series DIP switch Red Blue Black 1/2/3/4/5/6/7/8/9/10/12 positions dial switch custom
    • 1.27/2.54mm pitch DS series DIP switch Red Blue Black 1/2/3/4/5/6/7/8/9/10/12 positions dial switch custom
    • 1.27/2.54mm pitch DS series DIP switch Red Blue Black 1/2/3/4/5/6/7/8/9/10/12 positions dial switch custom

    Short Description:

    product name dip switch
    model number DS series 2.54
    Max. Voltage 24VDC
    Electrical life 2000cycles Min
    Color Red Blue Black
    Pitch 1.27 mm / 2.54mm
    Rating 24VDC 25mA
    Number of Positions 1/2/3/4/5/6/7/8/9/10/12 positions
    Operation Temperature -25 ℃ to 85 ℃
    Material Plastic,copper

    Product Detail

    Product Tags

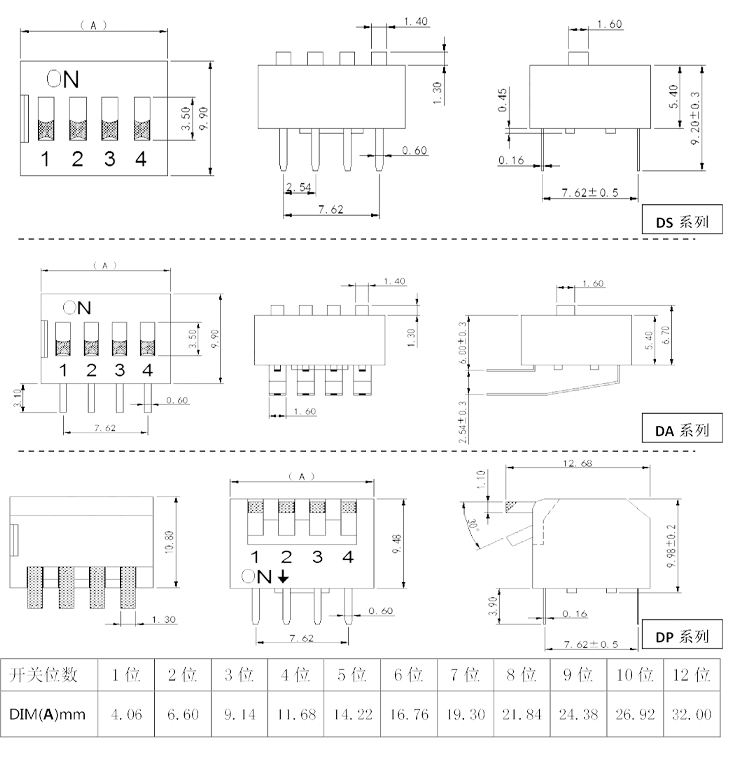

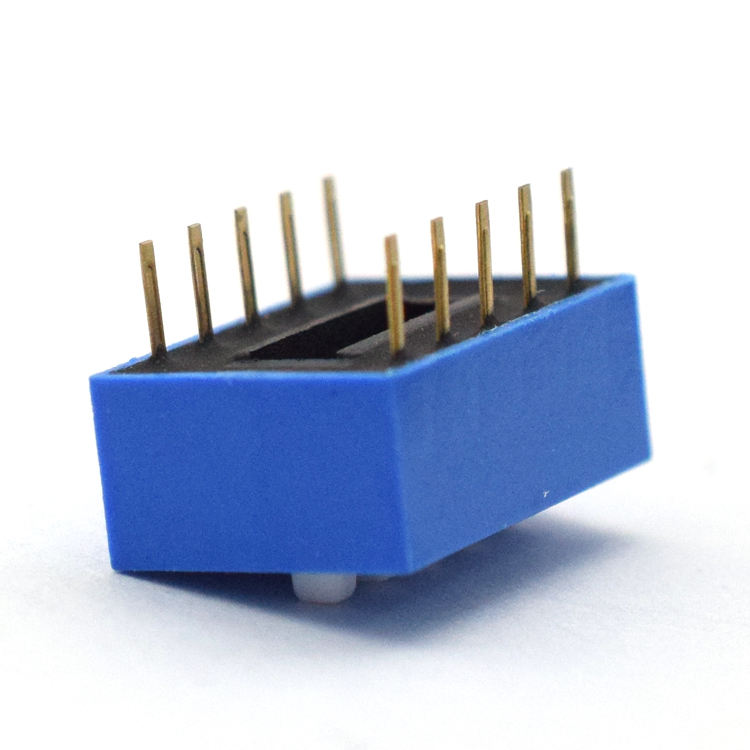

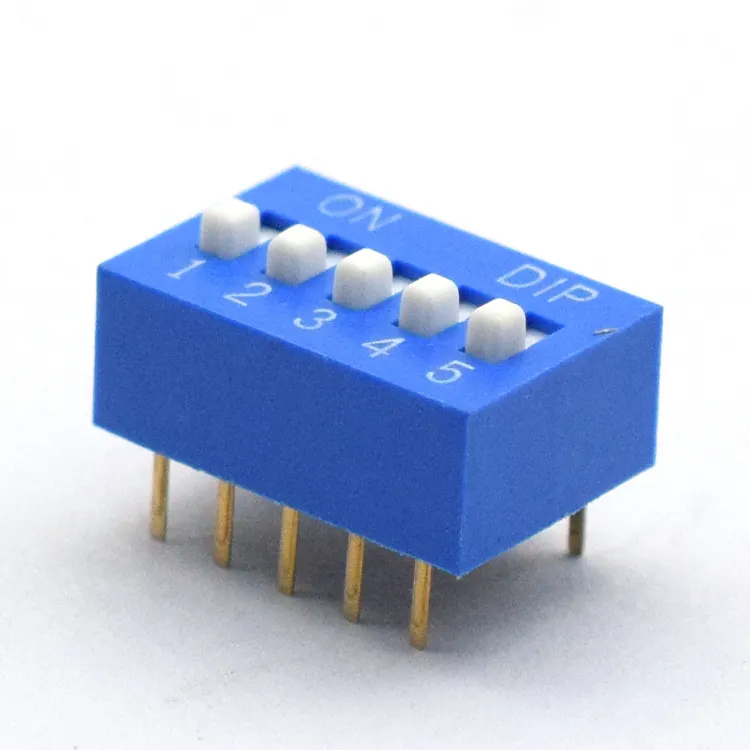

    Main-02 Main-03 Main-05 Main-04
