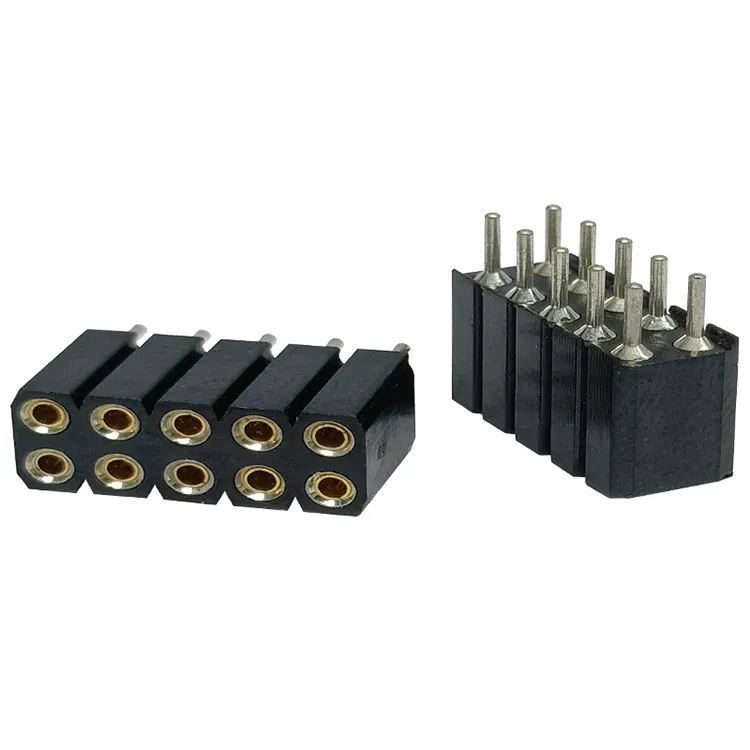

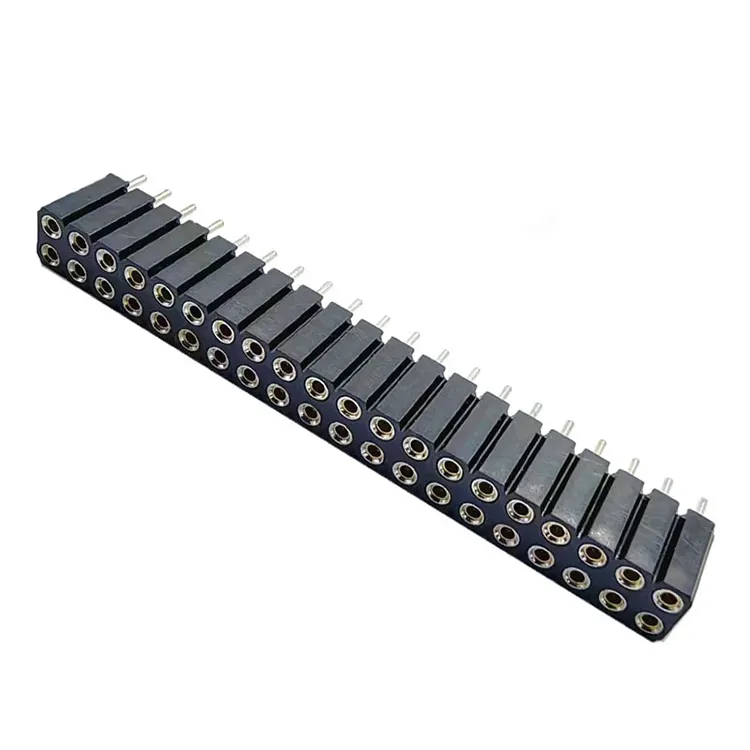

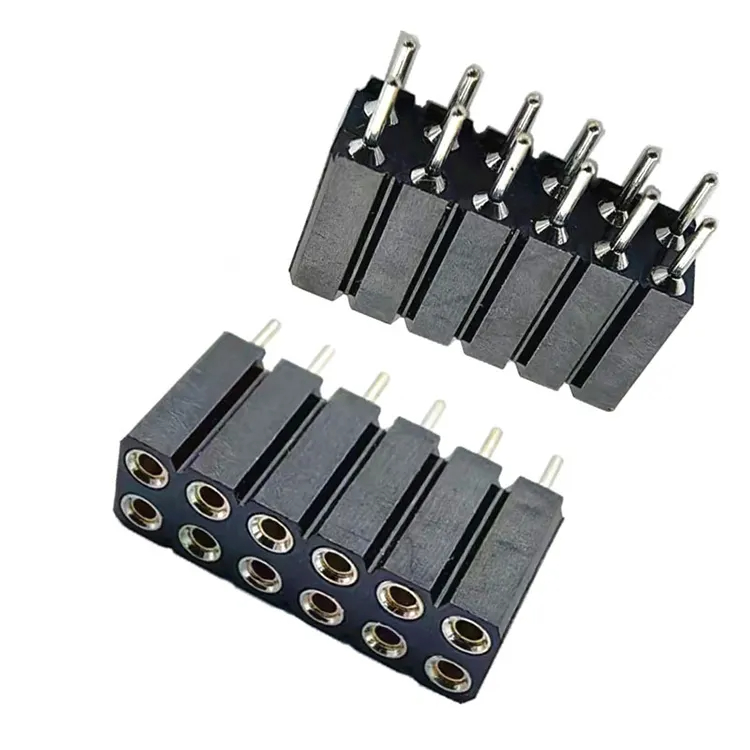

    1-40 pin 2.54mm round hole double row plastic height 7mm female pin header connector gold plated

    1-40 pin 2.54mm round hole double row plastic height 7mm female pin header connector gold plated Featured Image
    • 1-40 pin 2.54mm round hole double row plastic height 7mm female pin header connector gold plated
    • 1-40 pin 2.54mm round hole double row plastic height 7mm female pin header connector gold plated
    • 1-40 pin 2.54mm round hole double row plastic height 7mm female pin header connector gold plated
    • 1-40 pin 2.54mm round hole double row plastic height 7mm female pin header connector gold plated
    • 1-40 pin 2.54mm round hole double row plastic height 7mm female pin header connector gold plated

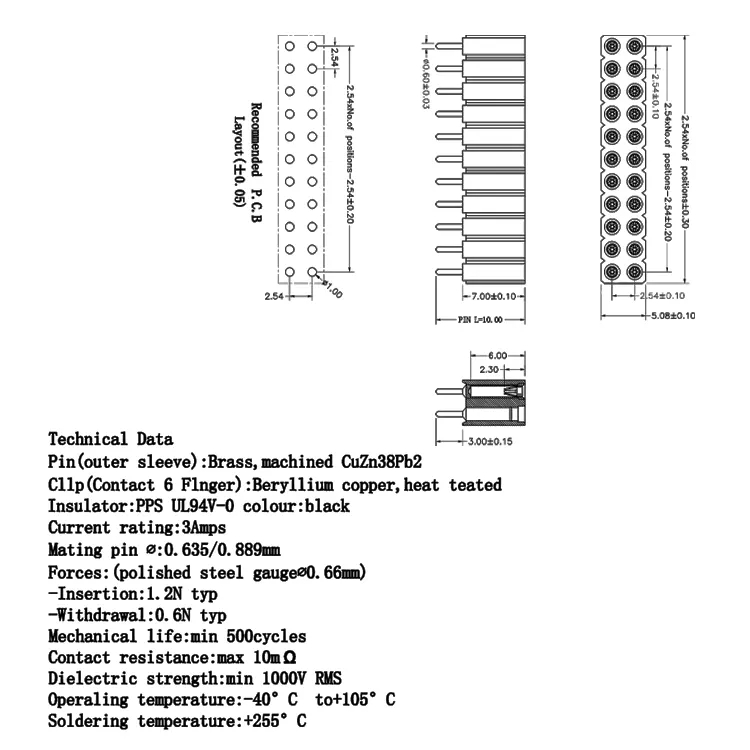

    Short Description:

    product name pin header connector
    model number 2.54mm pin header
    Insulator PPS UL94V-0
    Current rating 3Amps
    Mechanical life min 500cycles
    Contact resistance max 10mΩ
    Operating Temperature -40℃~+105℃

    Product Detail

    Product Tags

    Main-02 Main-01 Main-03 Main-04
