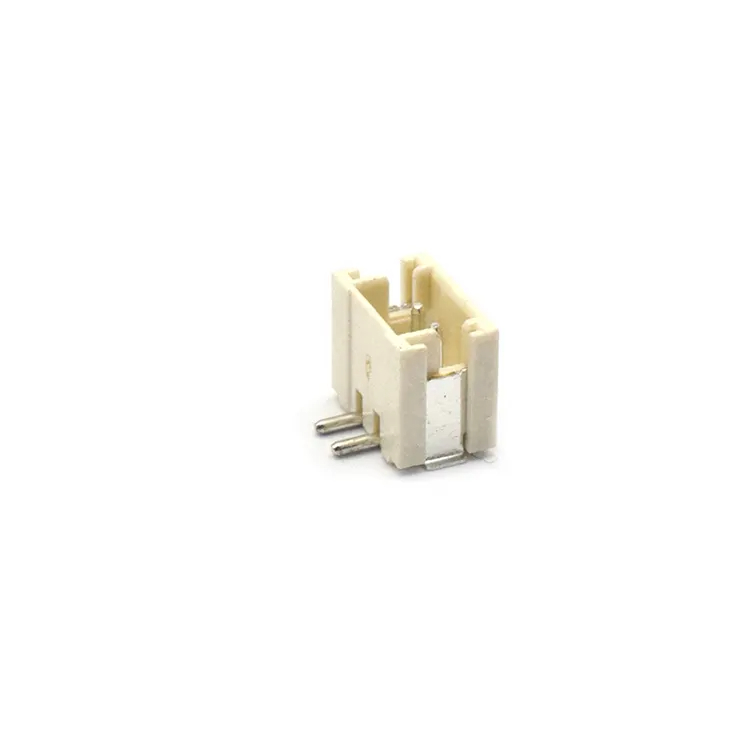

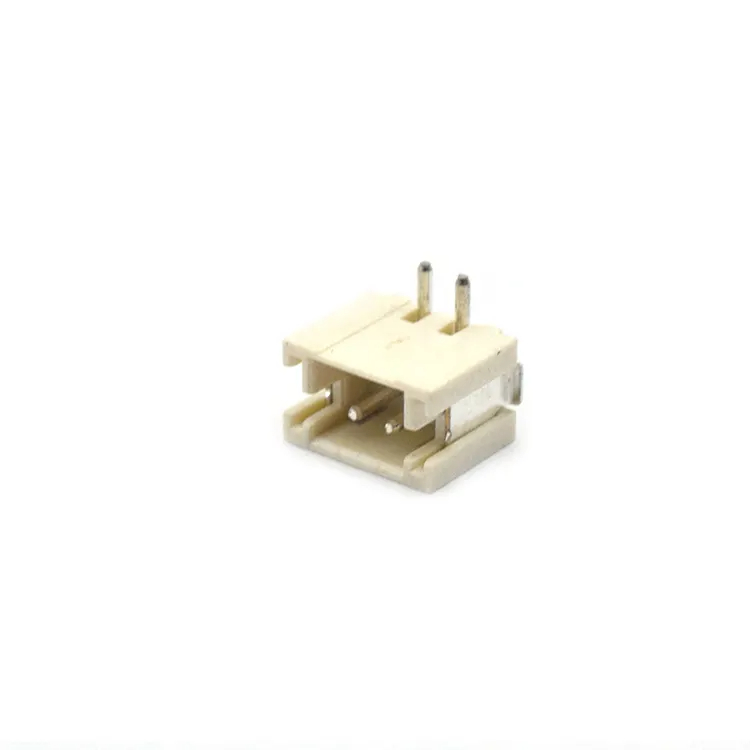

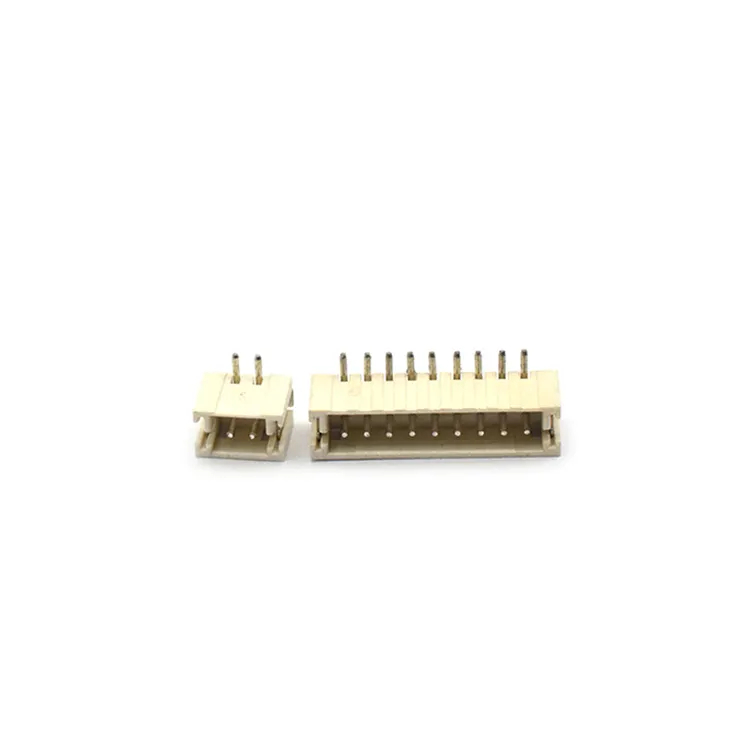

    125V 1A Pin 1.5mm SMT wafer connector pcb board connector

    125V 1A Pin 1.5mm SMT wafer connector pcb board connector Featured Image
    • 125V 1A Pin 1.5mm SMT wafer connector pcb board connector
    • 125V 1A Pin 1.5mm SMT wafer connector pcb board connector
    • 125V 1A Pin 1.5mm SMT wafer connector pcb board connector
    • 125V 1A Pin 1.5mm SMT wafer connector pcb board connector
    • 125V 1A Pin 1.5mm SMT wafer connector pcb board connector
    • 125V 1A Pin 1.5mm SMT wafer connector pcb board connector

    Short Description:

    brand SHOUHAN
    product name wafer connector
    model 1.5mm SMTwafer connector
    Insulation resistance 500MΩ Min
    Contact resistance 20mΩ Max
    temperature range - 25℃~+105℃
    PIN number 2Pin etc,customizable
    Insulator material LCP
    Rated current 1A AC,DC
    Rated voltage 125V AC,DC
    Support customization Yes

    Product Detail

    Product Tags

    JKUN-GCCP-0100-A1501AWV Model (1) Main-07 Main-05 Main-04 Main-06
