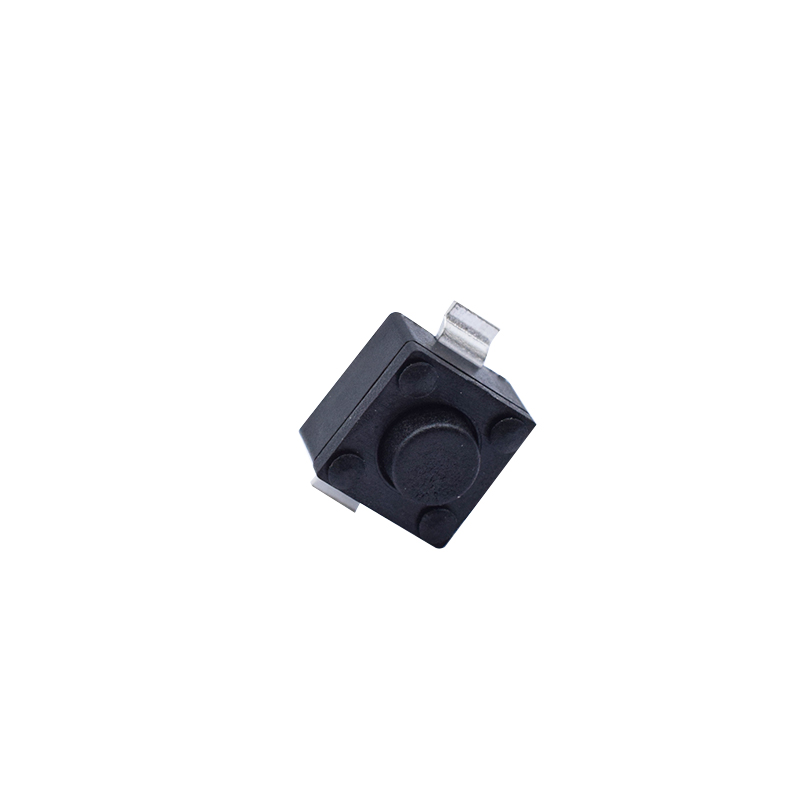

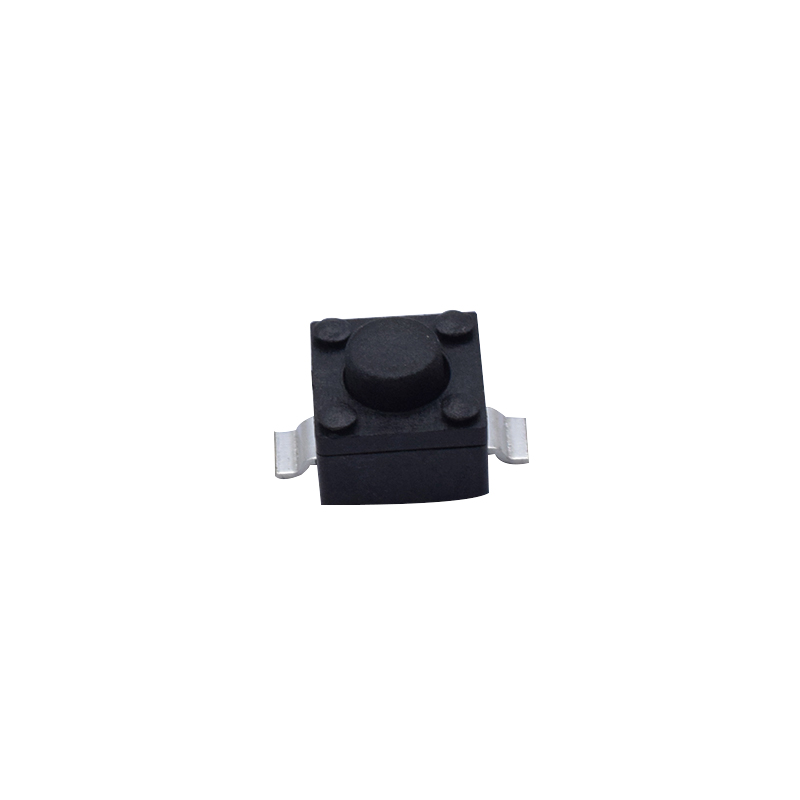

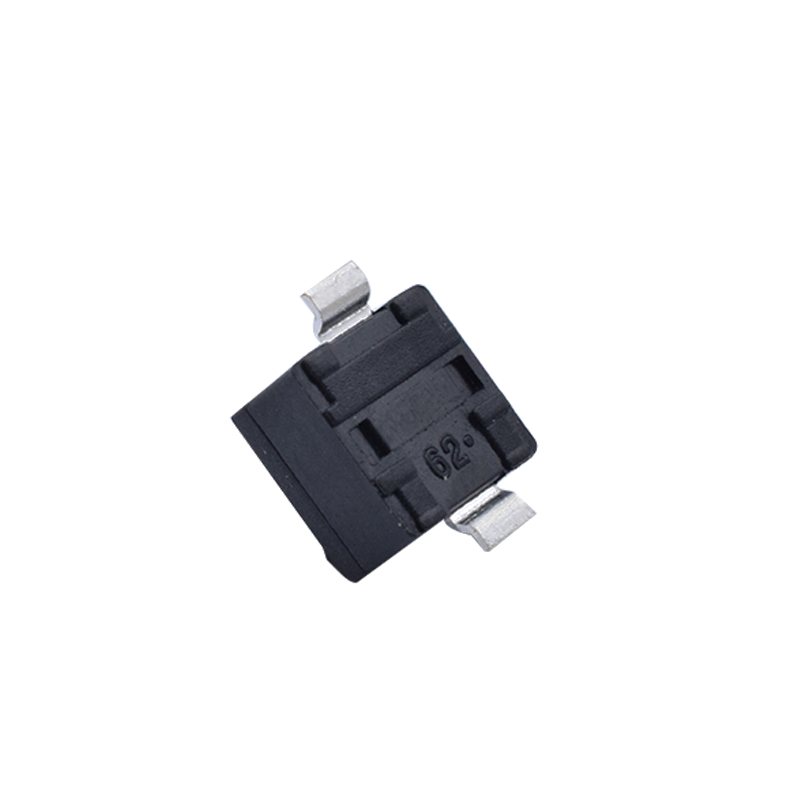

    12V 50mA 6*6*5mm tact switch smd 2 pin tactile switch smt push button switches SH-D047

    12V 50mA 6*6*5mm tact switch smd 2 pin tactile switch smt push button switches SH-D047 Featured Image
    • 12V 50mA 6*6*5mm tact switch smd 2 pin tactile switch smt push button switches SH-D047
    • 12V 50mA 6*6*5mm tact switch smd 2 pin tactile switch smt push button switches SH-D047
    • 12V 50mA 6*6*5mm tact switch smd 2 pin tactile switch smt push button switches SH-D047
    • 12V 50mA 6*6*5mm tact switch smd 2 pin tactile switch smt push button switches SH-D047

    Short Description:

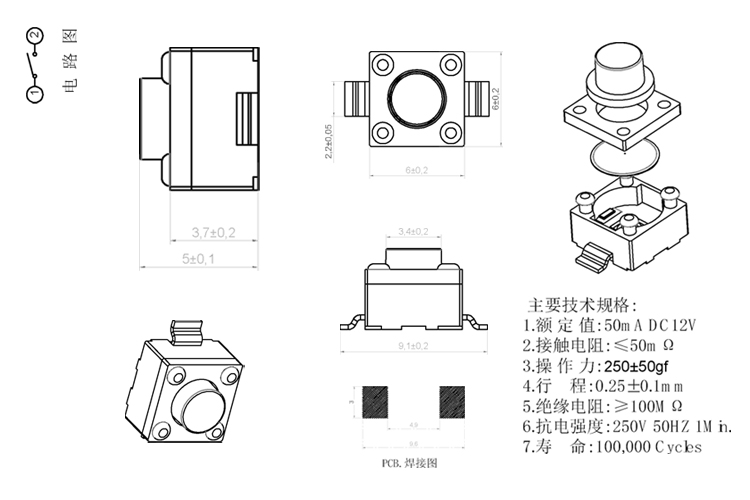

    model SH-D047
    product name tact switch
    Rated value 50m A D C 12V
    Contact resistance ≤50m Ω
    operating force 250±50gf
    journey 0.25±0.1m m
    Insulation resistance ≥100M Ω
    Dielectric strength 250V 50H Z 1M in.
    life 100,000 C ycles

    Product Detail

    Product Tags

    Detail-03 Detail-06 Detail-07 Detail-04
