18 Years Factory On Off Switch Mini Rocker - white color 3x6x5 2pin smd smt tact switch – Shouhan Detail:

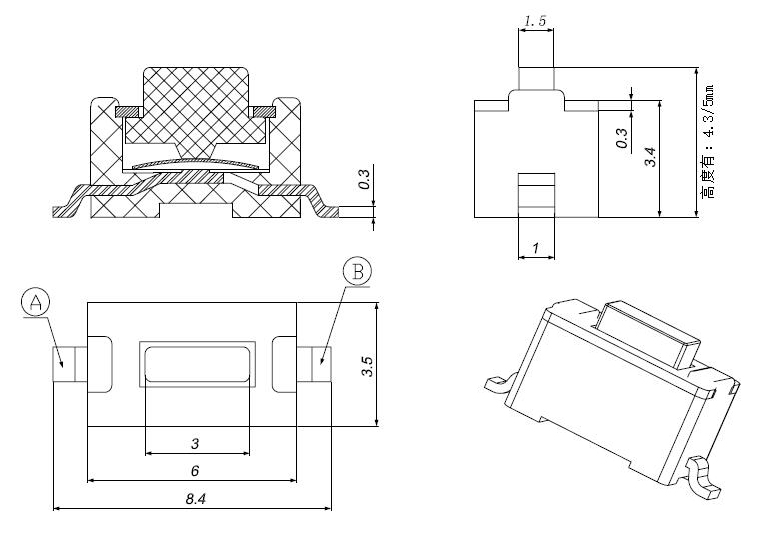

Title: white color 3x6x5 2pin smd smt tact switch

Rating: DC12V 50mA

Travel: 0.25±0.1mm

Operation Force260±30gf

Being measure at across spring piece and across Key stoke for ergo meter.

Contact Resistance50mΩMax.

Addition 1.5-2 time force on the top of the key strok and press the switch,DC50V100mA

Life time50000 Cycles Min.

Operation at a rate of 30-50 cycles a minute.

Factory strengths: with 13 years of industry experience, the company has passed ISO9001 certification, a number of patent certificates, more than 5300 cooperative customers, many customers of listed companies, 106 employees, 12 hardware punches, 18 injection molding machines, 26 full-automatic assembly machines, 32 full-automatic testing machines, 21 semi-automatic testing machines, 12 life testing machines and 25 other testing equipment.



Product advantages: fast delivery, free samples, the switch with ROHS 2.0 and CE certification, life time is more than 300000 times, small volume, high temperature resistance of patch, good press feeling and rebound, technical support and best sales service.

Application fields: mobile phone, wearable watches, instruments and equipment, consumer electronics, household appliances, security products



The whole boxes of switch should keep in the temperature -30–80℃and less than 80%RH with ortacidic,alkalescence,caustic gas in the environment of the storage.

1. Notification Items

② This product complies with RoHS Directive (on the restriction of the use of certain hazardous substances

in electrical and electronic equipment) (2011/65/EU).

③ The materials used in this product contain only the substances listed in the List of Existing Chemical Substances

specified in ‘Act on the Evaluation of Chemical Substances and Regulation of Their Manufacture, etc’.

1.2 Application Limits

The following shall be described for safety precaution:

[Limitation of Application]

- This product has been designed and manufactured for general electronic devices,

such as home electronics, soffice equipment, information device and communication devices.

In an event that this product is used for more sophisticated applications requiring higher safety and

reliability and its failure or malfunction of this product may impose damage to human life or property,

agreement on product specifications for approval suitable for such applications are required.

Such applications shall include the following:

aircraft equipment, aerospace equipment, disaster prevention / crime prevention equipment,

medical equipment, transportation equipment (vehicles, trains, ships, etc.), information

processing equipment that are highly publicized, and other equivalent equipment

- Regardless of its applications, in an event that this product is used for the equipment requiring

high safety levels, place protective circuits or redundant circuits and perform safety tests to improve

your products safety.







Product detail pictures:

18 Years Factory On Off Switch Mini Rocker - white color 3x6x5 2pin smd smt tact switch – Shouhan detail pictures
