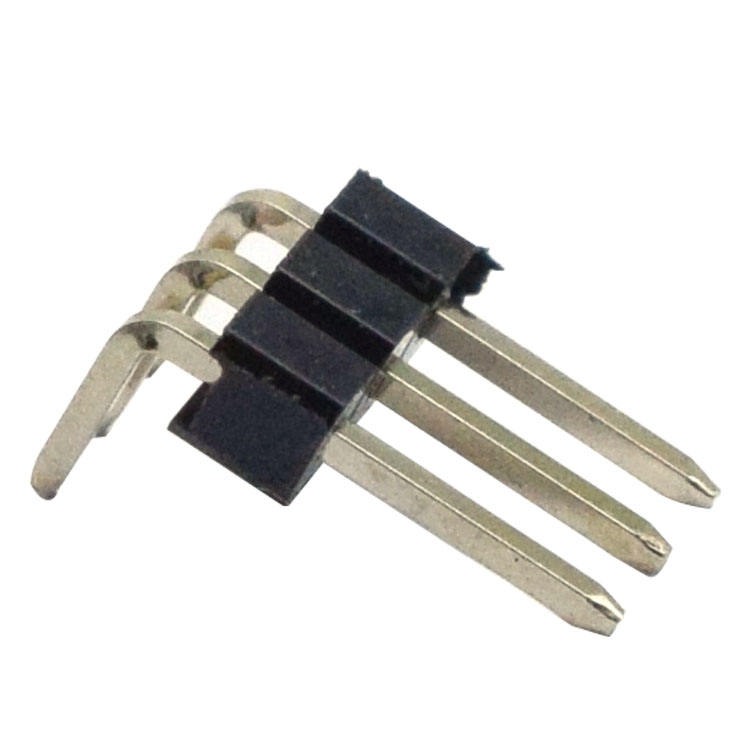

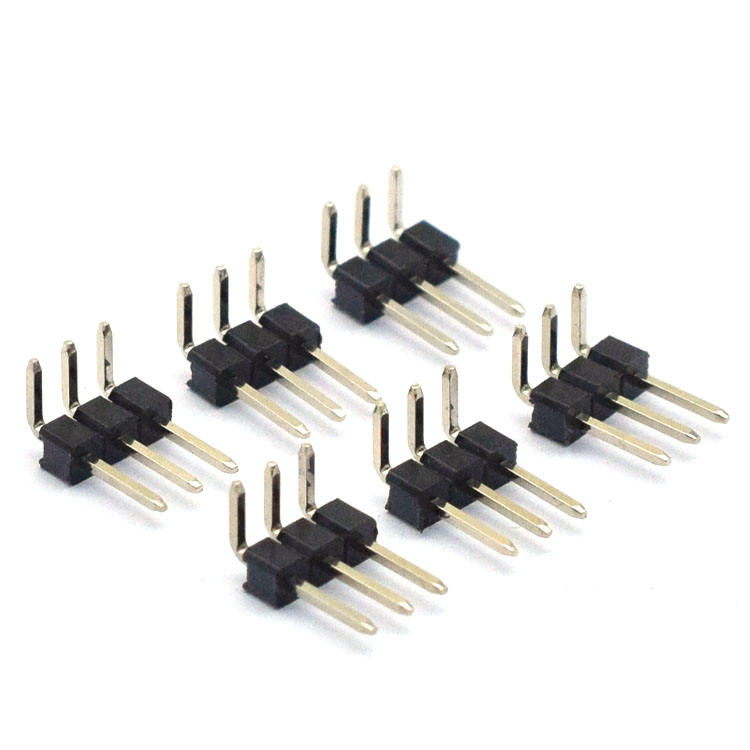

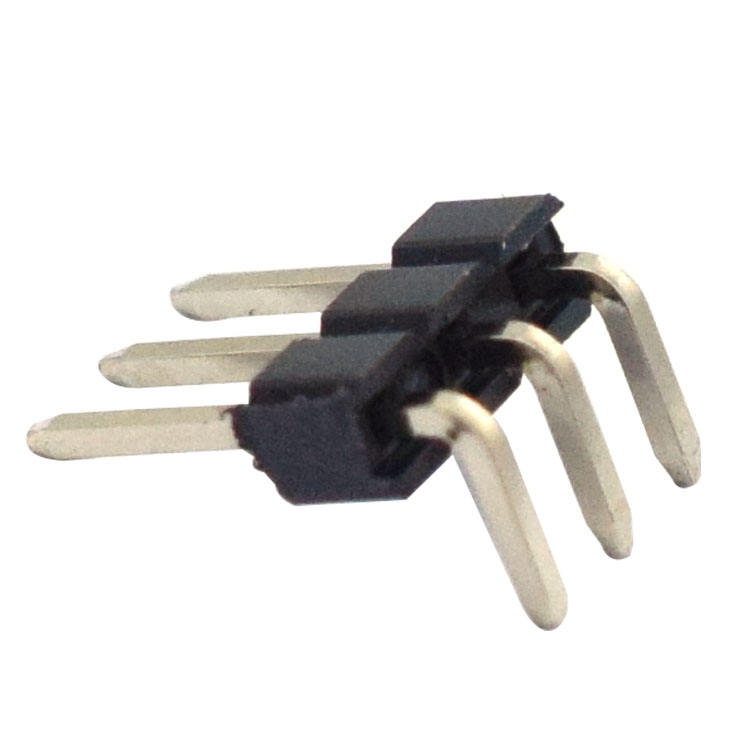

2.0/2.54mm 3PIN pin header connector Board to Board support customization

Short Description:

Place of Origin: China

Brand: SHOUHAN

Product name: Pin header connector

Model number: 2.54PH H2.5 3PIN

Current rating: 3Amps

Insulation Resisitance: 1000MΩ Min

Contact resistance: 20mΩ Max

Withstand voltage : 1000V

Operation Temperature ： -40~+105°

Contact material ：brass

Standard : PA6T

Insrlator Material : polyester(UL 94V-0)

Send email to us

Product Detail

Product Tags

With a pitch of 2.0/2.54mm, this connector offers a versatile solution that is compatible with a wide range of devices and applications. It features a sturdy, compact design that allows for easy installation and removal, making it an ideal choice for both prototyping and production applications.

The Pin Header Connector is made from high-quality materials that ensure excellent conductivity and long-lasting performance. Its gold-plated contacts provide low contact resistance and superior signal transfer, resulting in reliable data transmission and reduced signal loss.

This connector also boasts a high pin count, allowing for multiple connections in a single interface. It is available in various configurations, such as straight, right angle, and SMT, giving you the flexibility to choose the one that suits your specific requirements.
