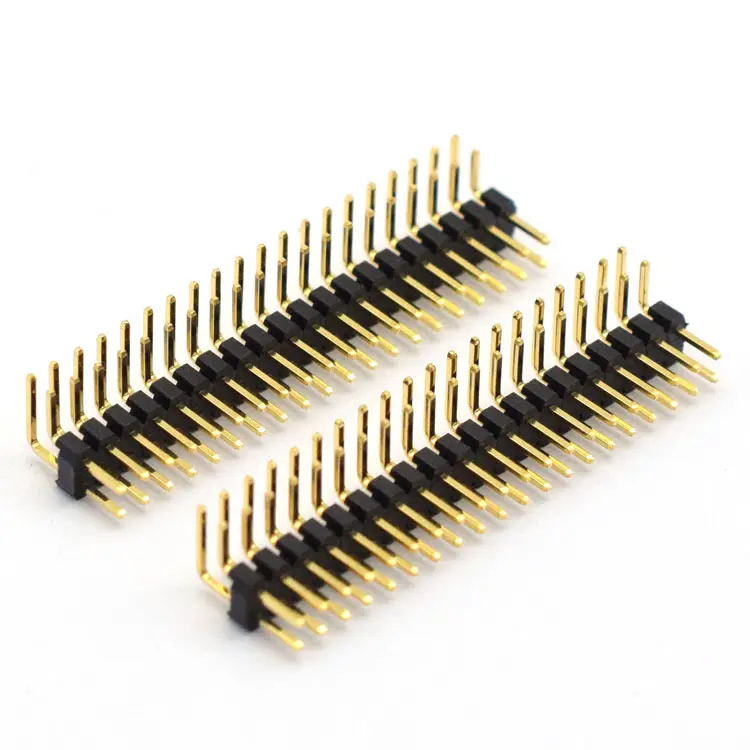

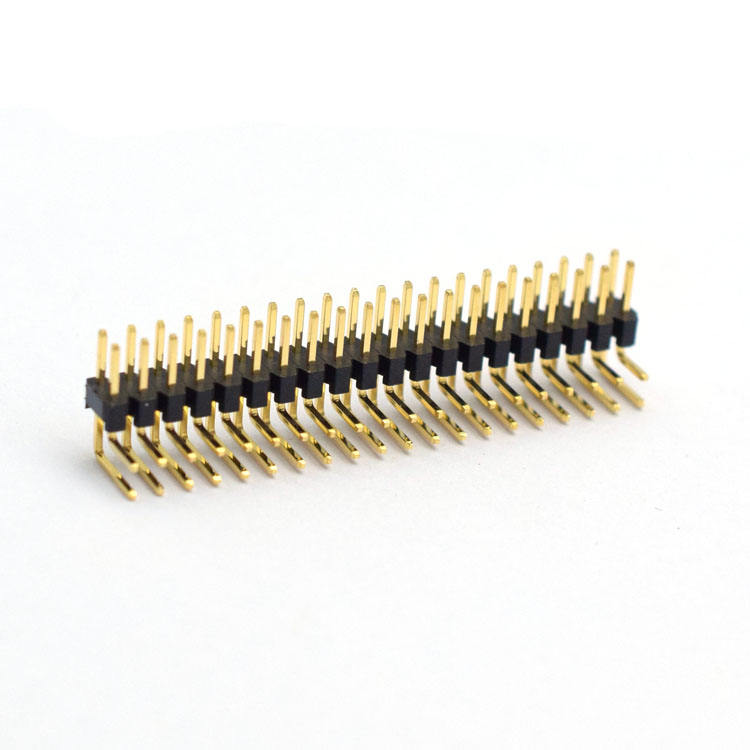

    2.0mm double rows bent needles male pin header PCB connector 2/3/4/5/6/7/8/9/10/40 pin

    2.0mm double rows bent needles male pin header PCB connector 2/3/4/5/6/7/8/9/10/40 pin Featured Image
    • 2.0mm double rows bent needles male pin header PCB connector 2/3/4/5/6/7/8/9/10/40 pin
    • 2.0mm double rows bent needles male pin header PCB connector 2/3/4/5/6/7/8/9/10/40 pin
    • 2.0mm double rows bent needles male pin header PCB connector 2/3/4/5/6/7/8/9/10/40 pin
    • 2.0mm double rows bent needles male pin header PCB connector 2/3/4/5/6/7/8/9/10/40 pin

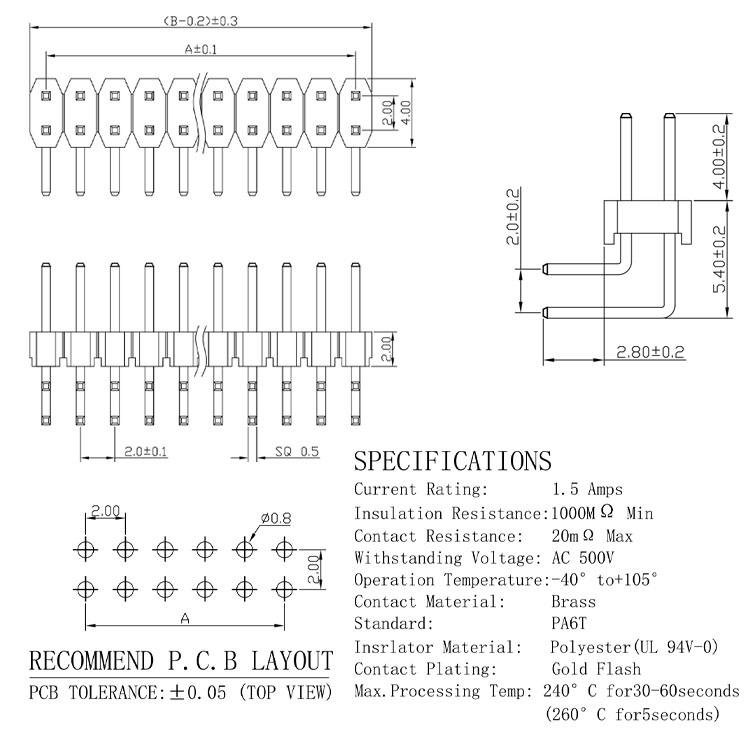

    Short Description:

    product name pin header connector
    model number 2.0PH 20PIN
    current rating 1.5 Amps
    Insulation resistance 1000MΩ Min
    contact resistance 20mΩ Max
    Withstand voltage AC 500V
    Operating temperature -40℃~+105℃
    Contact material brass
    standard PBT
    Insrlator Material polyester(UL 94V-0)
    contact plating Gold Flash

    Product Detail

    Product Tags

    Main-03 Main-07 Main-04
