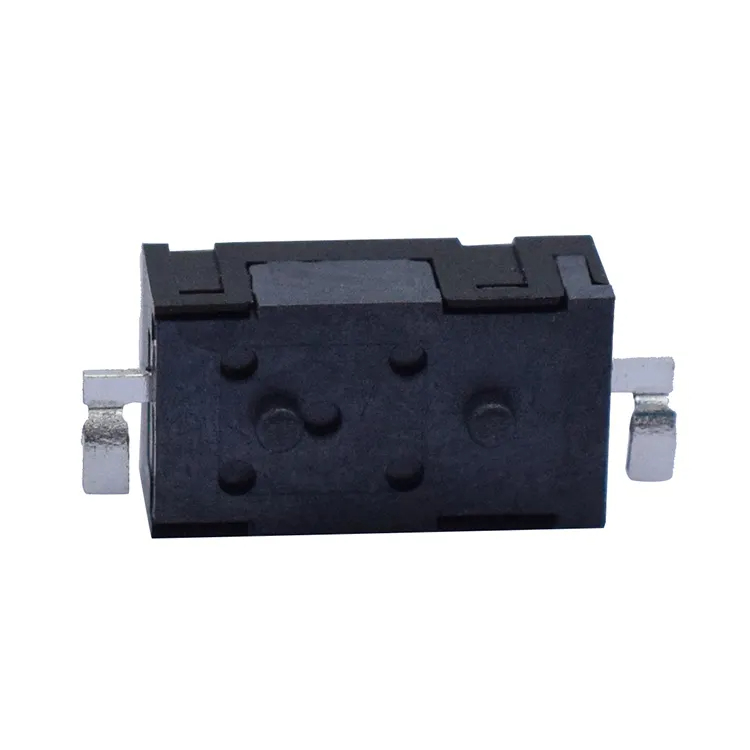

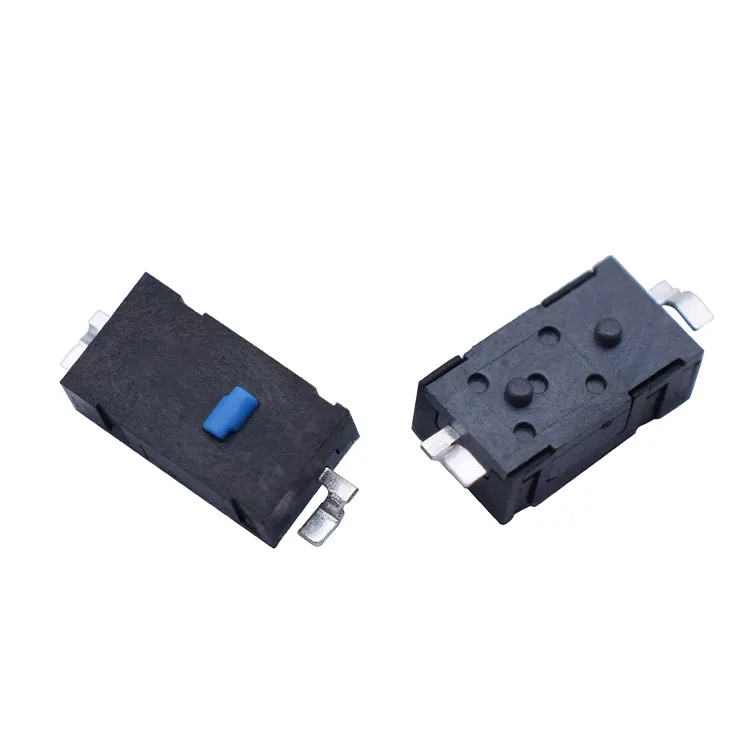

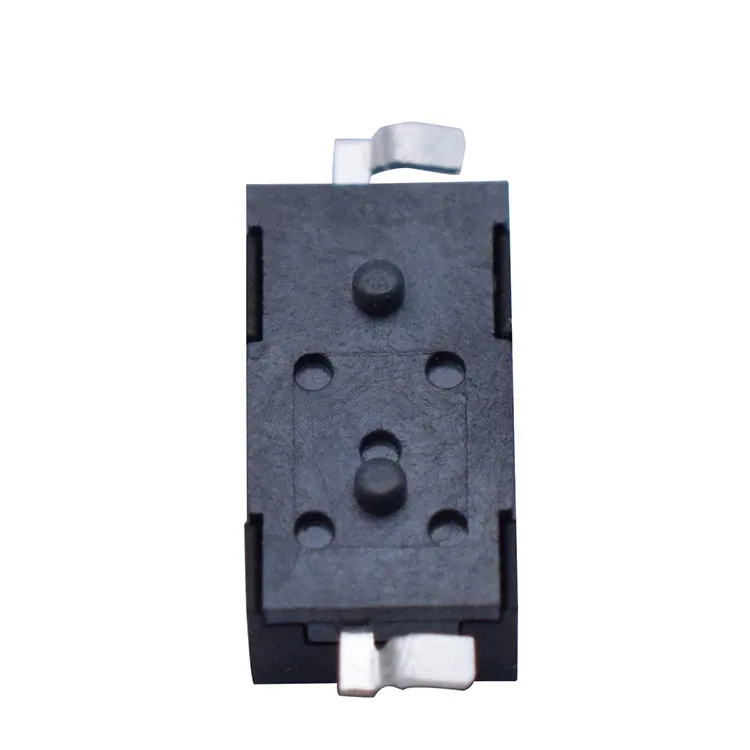

    2 pin mini micro limit switch automotive with game controller SH-W001

    2 pin mini micro limit switch automotive with game controller SH-W001 Featured Image
    • 2 pin mini micro limit switch automotive with game controller SH-W001
    • 2 pin mini micro limit switch automotive with game controller SH-W001
    • 2 pin mini micro limit switch automotive with game controller SH-W001
    • 2 pin mini micro limit switch automotive with game controller SH-W001
    • 2 pin mini micro limit switch automotive with game controller SH-W001

    Short Description:

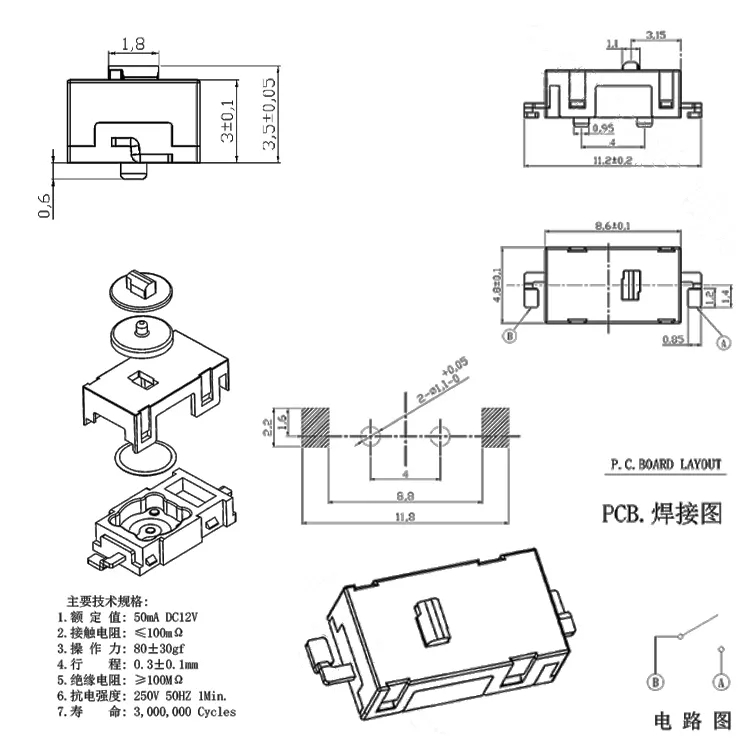

    product name Micro Switch
    model number SH-W001  CMI873101S100
    rating 50mA DC12V
    Contact resistance ≤100mΩ
    Operating force 80±30gf
    stroke 0.3±0.1mm
    Insulation resistance ≥100MΩ
    Electric strength 250V 50HZ 1Min.
    Life span ≥3000000 times
    weight 1g

    Product Detail

    Product Tags

    Main-02 Main-05 Main-04 Main-03
