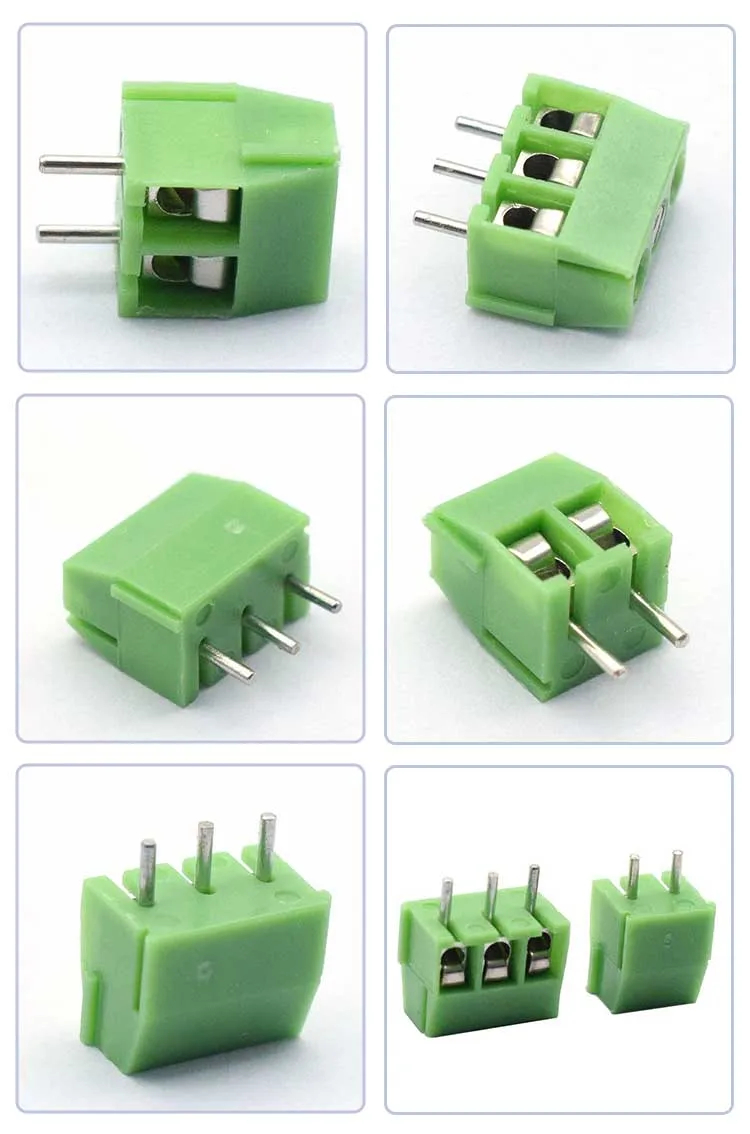

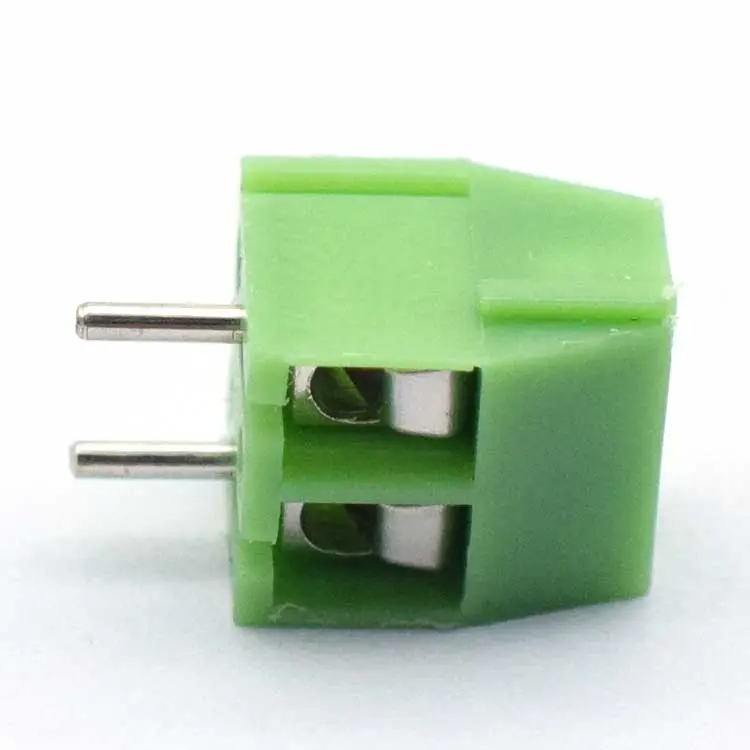

    2P 3P 3.5mm PCB mini screw wire terminal cable connector

    2P 3P 3.5mm PCB mini screw wire terminal cable connector Featured Image
    • 2P 3P 3.5mm PCB mini screw wire terminal cable connector
    • 2P 3P 3.5mm PCB mini screw wire terminal cable connector
    • 2P 3P 3.5mm PCB mini screw wire terminal cable connector
    • 2P 3P 3.5mm PCB mini screw wire terminal cable connector
    • 2P 3P 3.5mm PCB mini screw wire terminal cable connector

    Short Description:

    product name terminal cable connector
    model number DG350-3.5-03P-14-00A   DG350-3.5-02P-14-00A-H
    interval 3.5mm
    PIN number customizable
    Installation mode Straight needle
    Rated current 10A
    Rated voltage 130V
    Operating temperature range -40℃~+105℃
    colour green

    Product Detail

    Product Tags

    Main-02 Main-03 Detail-04
