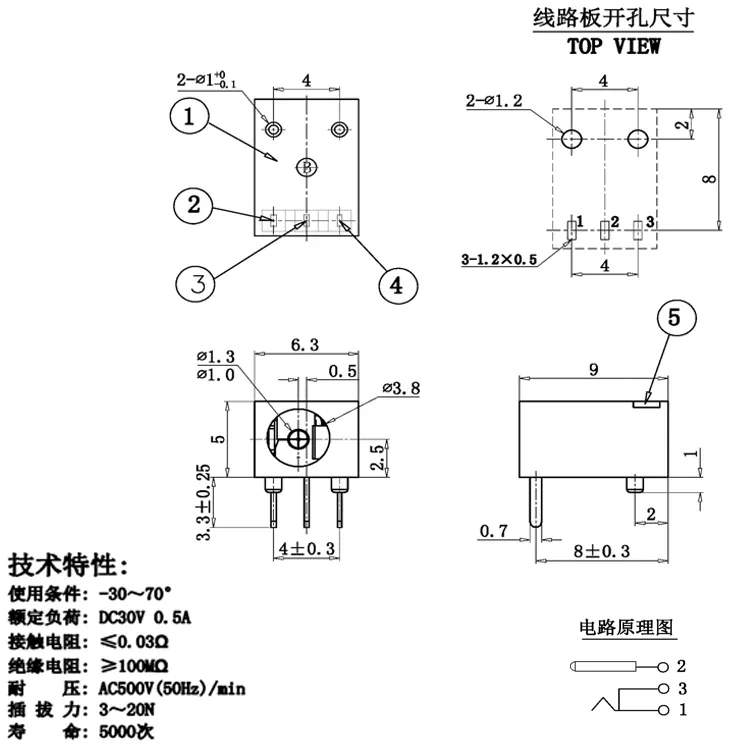

3 PIN horizontal plug-in DC003A DC power jack with positioning column 1.3 inner needle charging seat DC power socket
Product Description
Temperature: -30C ~ +70C
Rated Load: DC 30V 0.5A
Contact resistance: ≤ 30mΩ MAX
Insulation resistance: ≥ 100MΩ MIN
Withstand voltage: 500V AC/ 1 minute
Actuating force: 0.3-2.0kgs
Life: 5000times
Rated Load: DC 30V 0.5A
Contact resistance: ≤ 30mΩ MAX
Insulation resistance: ≥ 100MΩ MIN
Withstand voltage: 500V AC/ 1 minute
Actuating force: 0.3-2.0kgs
Life: 5000times
Usage: A/V Products, PCB Products
Why Choose Us?
1) We can provide you with different types of micro switches for your selection.
2) MOQ: 2000pcs,mixed order acceptable, welcome trial order.
3) We can provide free samples for your test.
4) Various operating force, height and colour for one item for your choice.
5) Safety, on-time delivery, excellent quality with competitive price.
6) OEM and ODM professional design.
