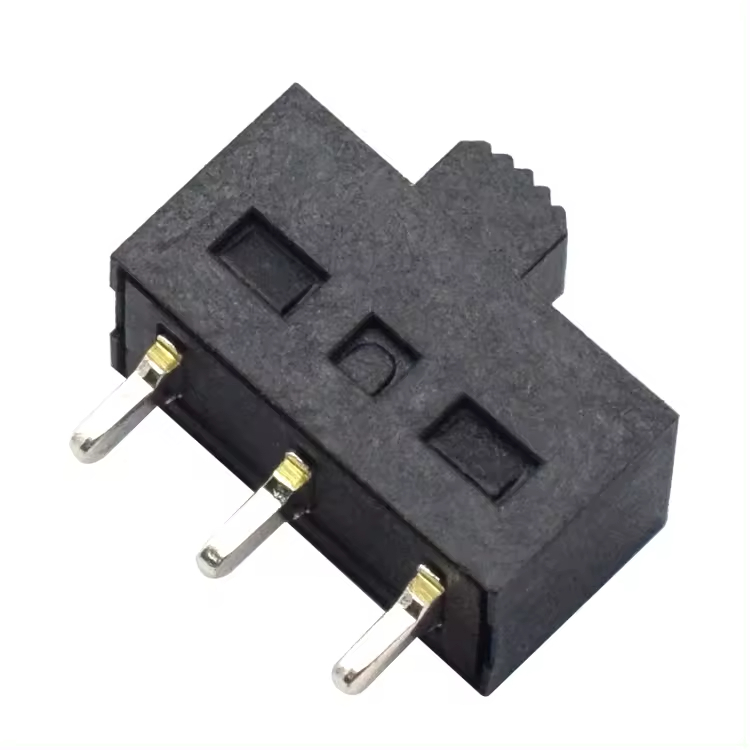

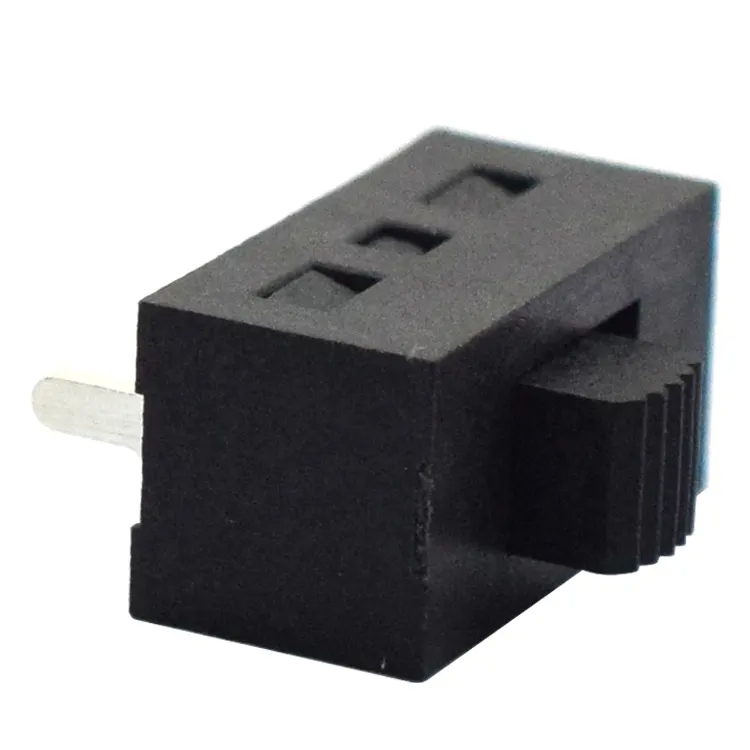

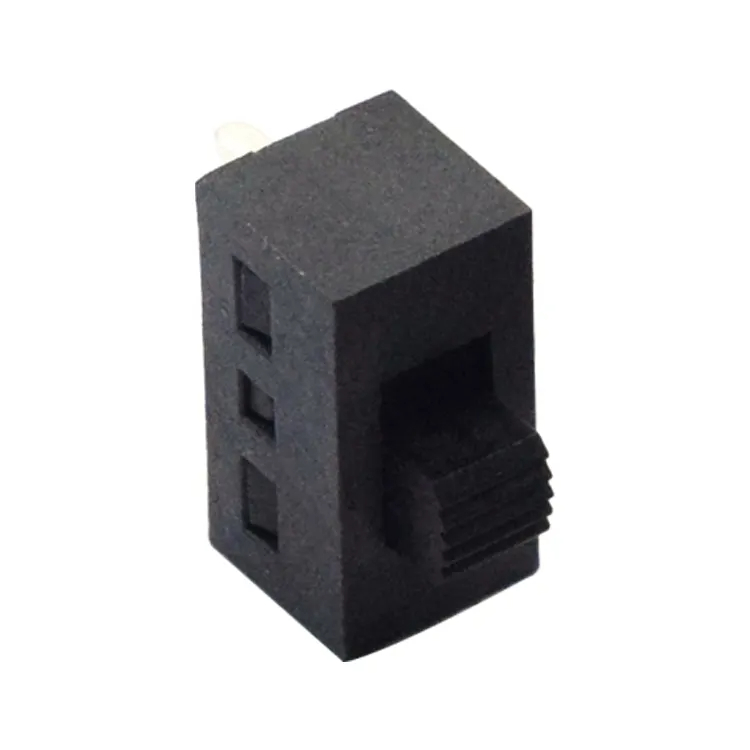

    3 pin slide switches AC 125V 2A PCB slide switch 2 position SS-12D15G3

    3 pin slide switches AC 125V 2A PCB slide switch 2 position SS-12D15G3 Featured Image
    • 3 pin slide switches AC 125V 2A PCB slide switch 2 position SS-12D15G3
    • 3 pin slide switches AC 125V 2A PCB slide switch 2 position SS-12D15G3
    • 3 pin slide switches AC 125V 2A PCB slide switch 2 position SS-12D15G3
    • 3 pin slide switches AC 125V 2A PCB slide switch 2 position SS-12D15G3
    • 3 pin slide switches AC 125V 2A PCB slide switch 2 position SS-12D15G3
    • 3 pin slide switches AC 125V 2A PCB slide switch 2 position SS-12D15G3

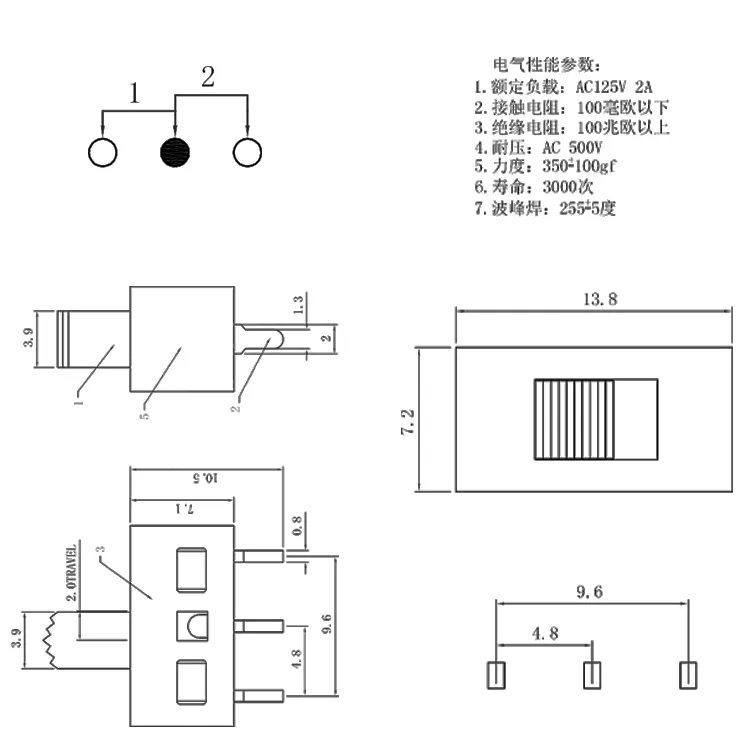

    Short Description:

    product name slide switch
    model number SS-12D15G3-3.5
    rating AC 125V 2A
    Temoerature range - 25℃~+70℃
    Insulation resistance ≥100mΩ
    Contact resistance ≤100mΩ
    Operating force 350±100gf
    life ≥3000 times

    Product Detail

    Product Tags

    Main-03 Main-06 Main-05 Main-04
