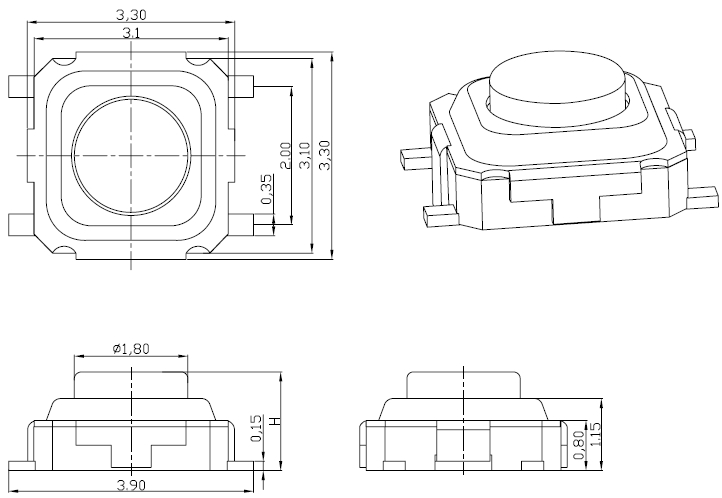

    3x3x1.5 height 1.5mm squar 4pin smd smt tact switch

    3x3x1.5 height 1.5mm squar 4pin smd smt tact switch Featured Image
    • 3x3x1.5 height 1.5mm squar 4pin smd smt tact switch

    Short Description:

    Product description
    Item name: 3x3x1.5 push button switch
    Model No.: TS3315A
    Rating: 50mA. 12VDC
    Dielectric strength: 250VAC for 1 min
    Insulation resistance: 100mΩ min. 100V DC
    Contact resistance: 50mΩ max
    Operating temperature: -30℃~+85℃
    Lifetime: 500,000 cycles min
    Operating force: 90gf,180gf;250gf
    Travel: 0.20±0.1mm
    Usage:
    - Mobile phone PCBA circuit board.
    - For operating various devices that require high density mounting such as mobile phones,communication sets.
