    manufacturer 4.5×4.5 4 pin DIP tact switch

    manufacturer 4.5×4.5 4 pin DIP tact switch Featured Image
    • manufacturer 4.5×4.5 4 pin DIP tact switch
    • manufacturer 4.5×4.5 4 pin DIP tact switch
    • manufacturer 4.5×4.5 4 pin DIP tact switch

    Short Description:

    Product description

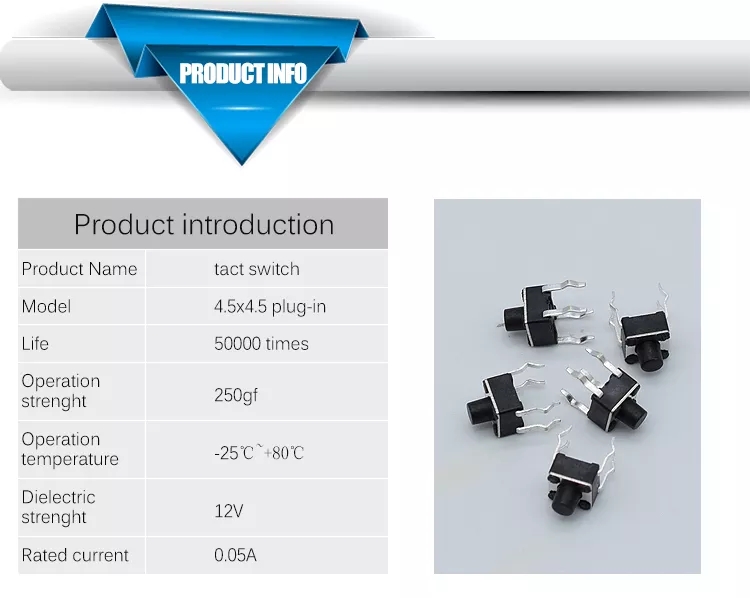

    Item name: 4.5×4.5 DIP tact switch
    Model: TS4545CJ
    Rating: 50mA. 12VDC
    Dielectric strength: 250VAC for 1 min
    Contact resistance: 50mW max
    Operating temperature: -30℃~+85℃
    Lifetime: 50,000 cycles min
    Operating force: 180gf;250gf
    Travel: 0.25±0.1mm
    Usage:
    - Operating switches in all types of electronic equipment such as audio apparatus,office equipment,communication apparatus,measuring instruments,TV sets,VCRs,etc.
