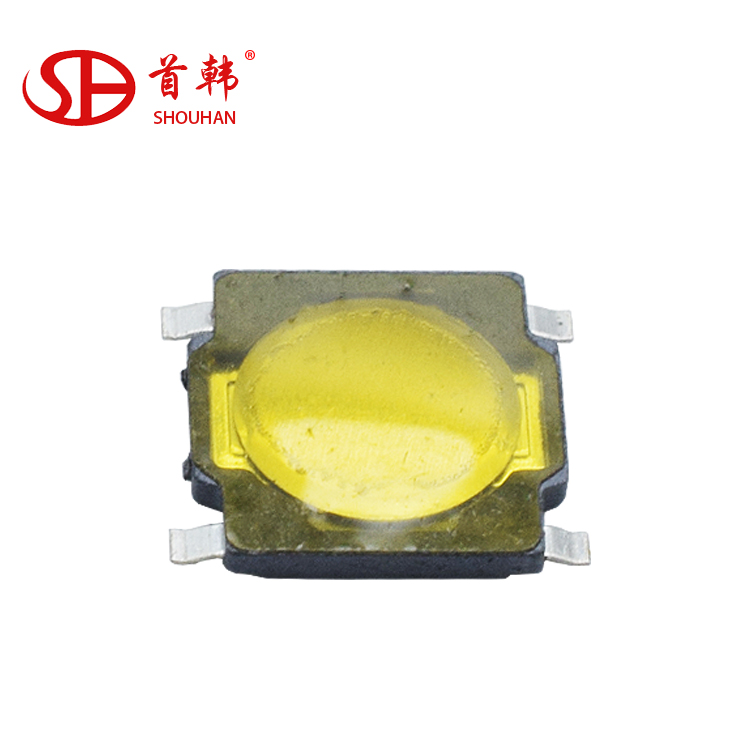

    Car Remote Control Key Switches Buttons Touch Tactile Push Button Switch Tact 4.5×4.5 Switch RKA2SGS055SMTR

    Car Remote Control Key Switches Buttons Touch Tactile Push Button Switch Tact 4.5×4.5 Switch RKA2SGS055SMTR Featured Image
    • Car Remote Control Key Switches Buttons Touch Tactile Push Button Switch Tact 4.5×4.5 Switch RKA2SGS055SMTR
    • Car Remote Control Key Switches Buttons Touch Tactile Push Button Switch Tact 4.5×4.5 Switch RKA2SGS055SMTR
    • Car Remote Control Key Switches Buttons Touch Tactile Push Button Switch Tact 4.5×4.5 Switch RKA2SGS055SMTR

    Short Description:

    Product description:

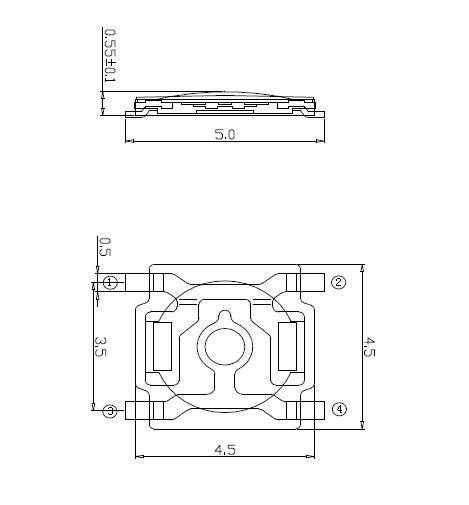

    Item name: 4.5×4.5×0.55 film switch

    RKA2SGS055SMTR
    Rating: DC 12V, 50MA
    Insulation Resistance: ≥100MΩ
    Dielectric voltage proof: AC250V(50HZ)/min
    Contact Resistance:≤100mΩ
    Travel: 0.3±0.05mm
    Operating Force: 250±30gf
    Lifetime: 30000 cycles min min
    Relative humidity: (40±2℃)≤95%

    Product Detail

    Product Tags

    Quick Details

    Certification:      ROHS
    Model Number:       TS45055

    Max. Current:       50mA
    Max. Voltage:        12V DC
    size:4.5×4.5×0.55 touch switch SMD
    feature: waterproof tactile switch
    Operating temperature: -30℃~ 85℃
    Rating: DC12V 50mA
    Contact Resistance:
    100mΩ Max
    Resistance Insulation:
    100MΩ Min
    Dielectric Voltage:
    250VAC (50~60Hz,cut off current 2mA)
    Mechanical Life:
    100,000 cycles
    Operating force:
    160gf/250gf/300gf/350gf
