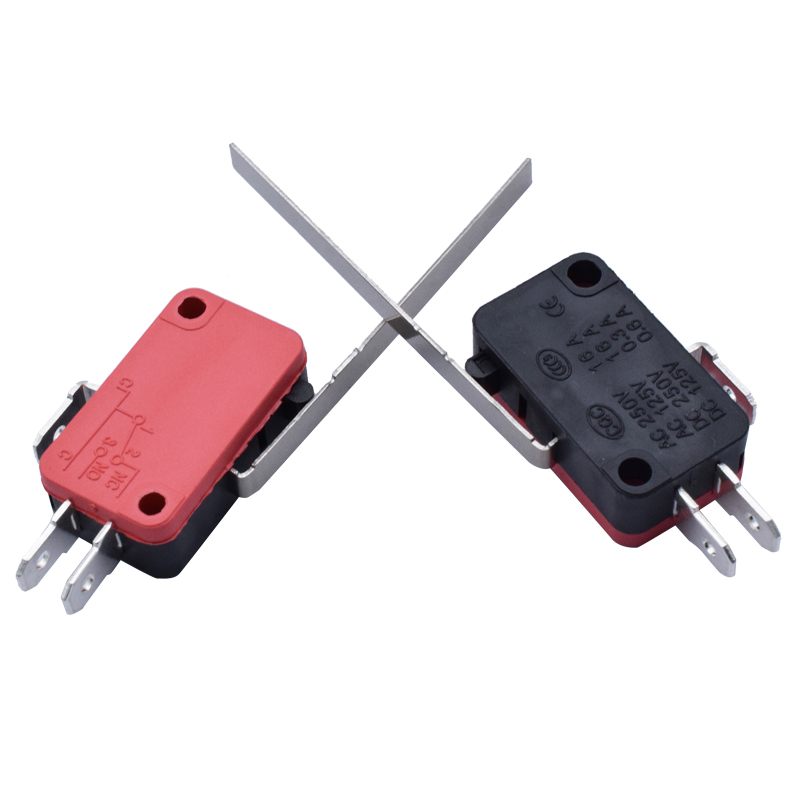

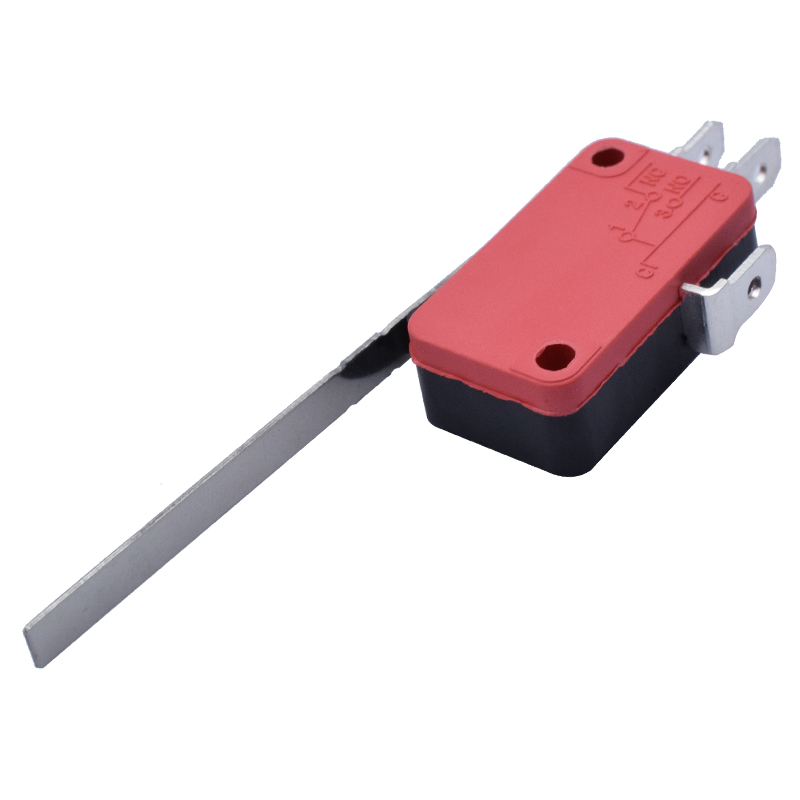

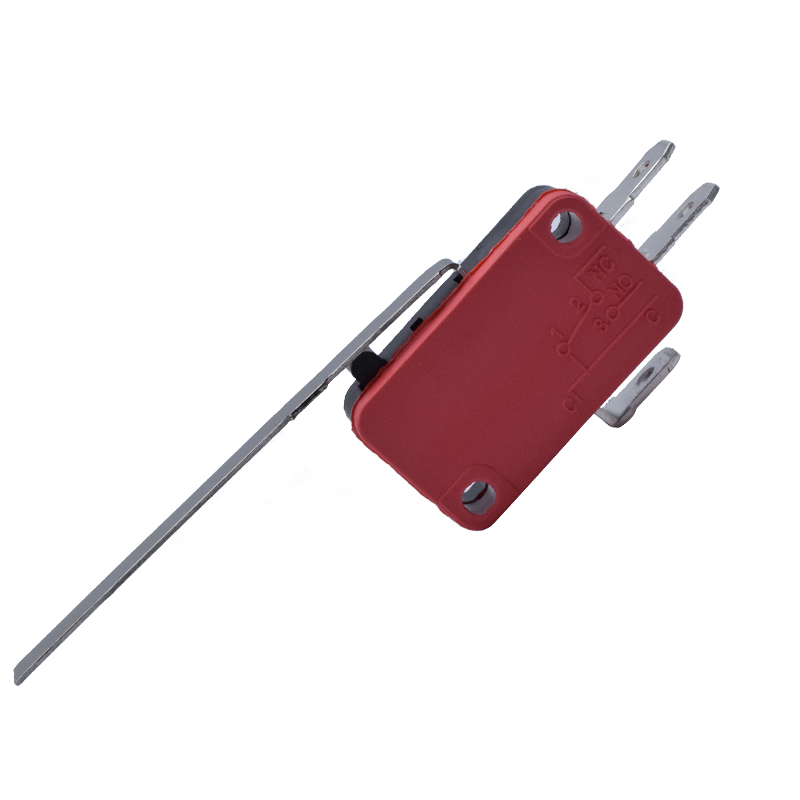

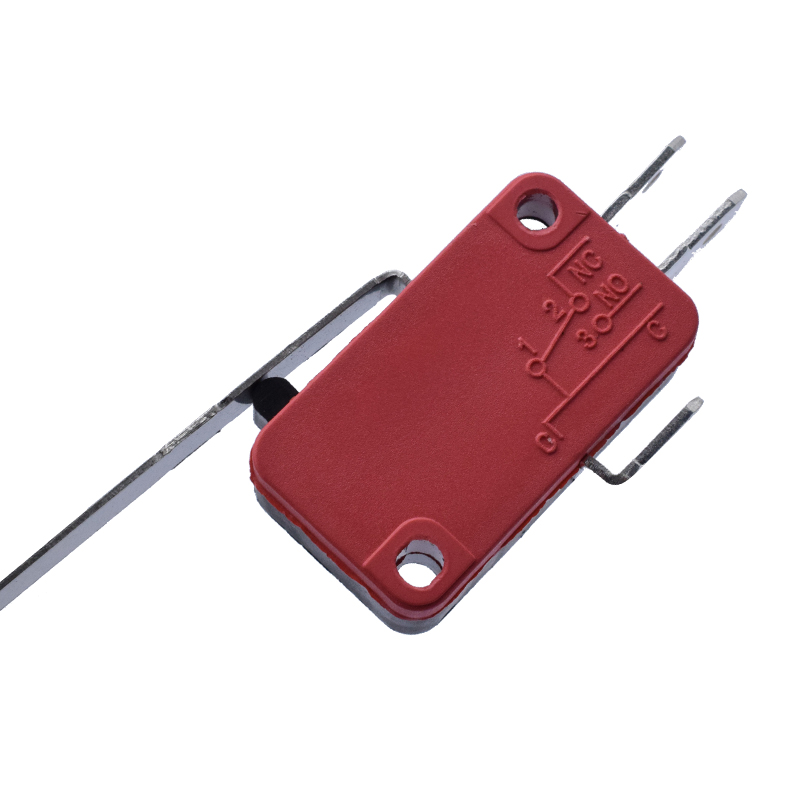

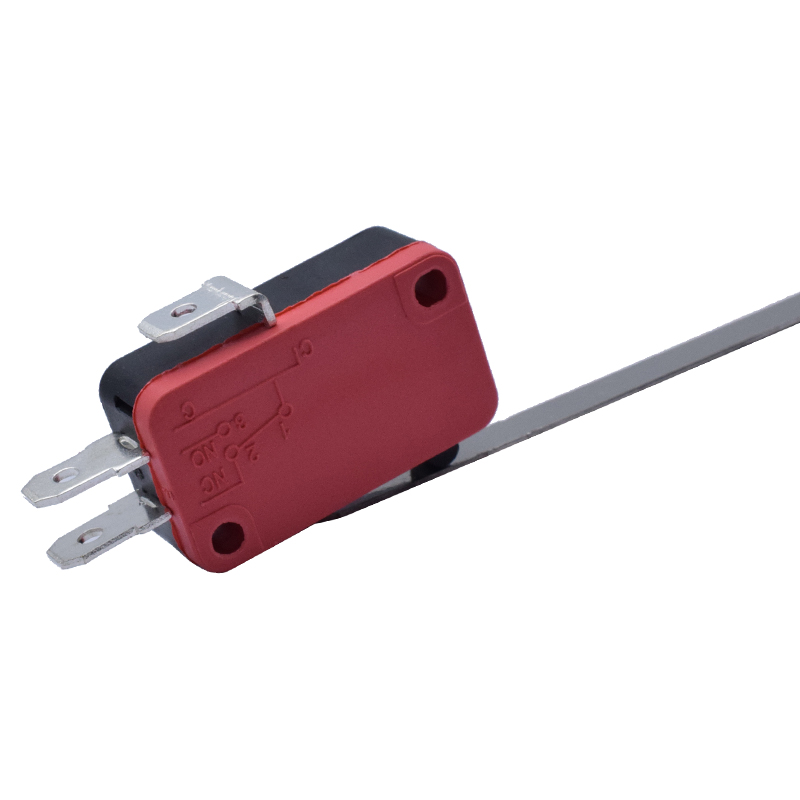

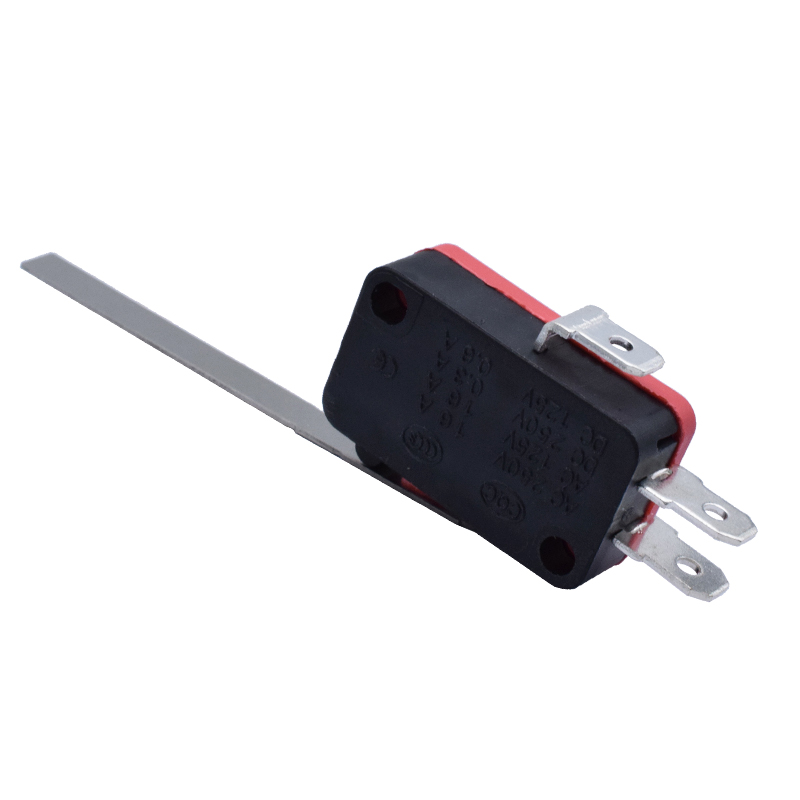

| Product Name | 3 pin Micro switch With Long Handle |
| Size | 28*16*10.5mm(Height) |
| Model | ZW7-9/SH003-3 |
| Max. Voltage/Current | 250VAC / 16A |
| Protection Level | IP40 |
| Dielectric Strength | ≥500VAC/1min |
| Application | PCB |
| Operating Temperature | -25℃ ~+85℃ |
| Color | Black Red |
| Insulation Resistance | 20M Ohm Min |
| Durability | ≥500,000 cycles min |
| Handle length | 53mm |
| Brand Name | SHOUHAN |
Micro switch is a tiny contact interval and fast mechanism, with provisions of stroke and force on the contact of switch action,
use the shell cover, the external drive of a switch, because of the switch contact spacing is small, so the micro switch,
also called sensitive switch Also known as the sensitive switch Quick switch pressure actuated on off quickly Used for door switches
in anti-theft systems
