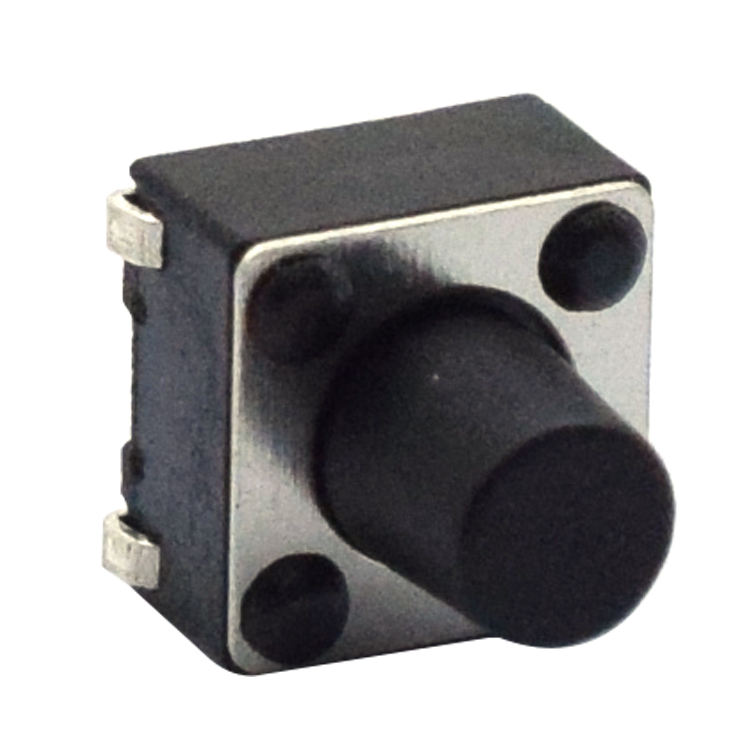

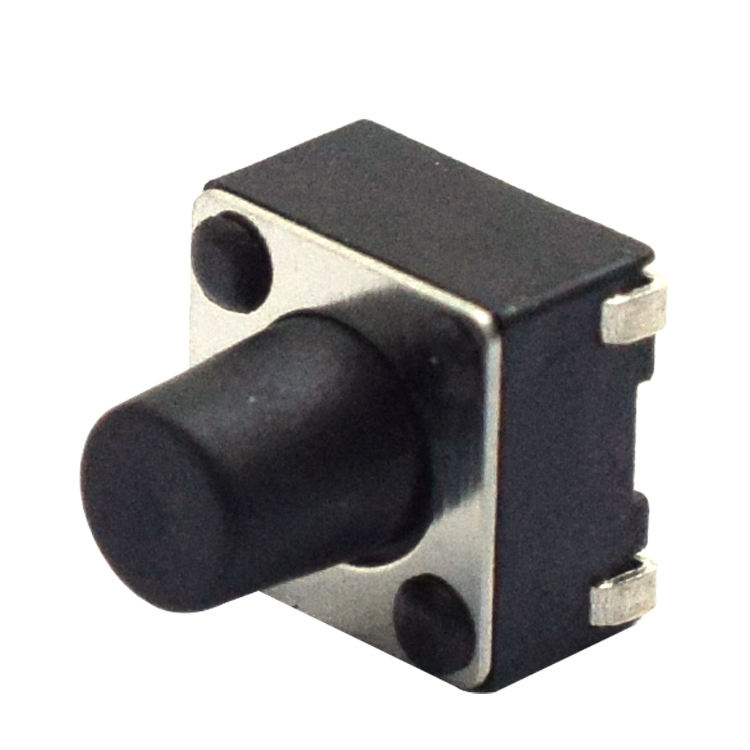

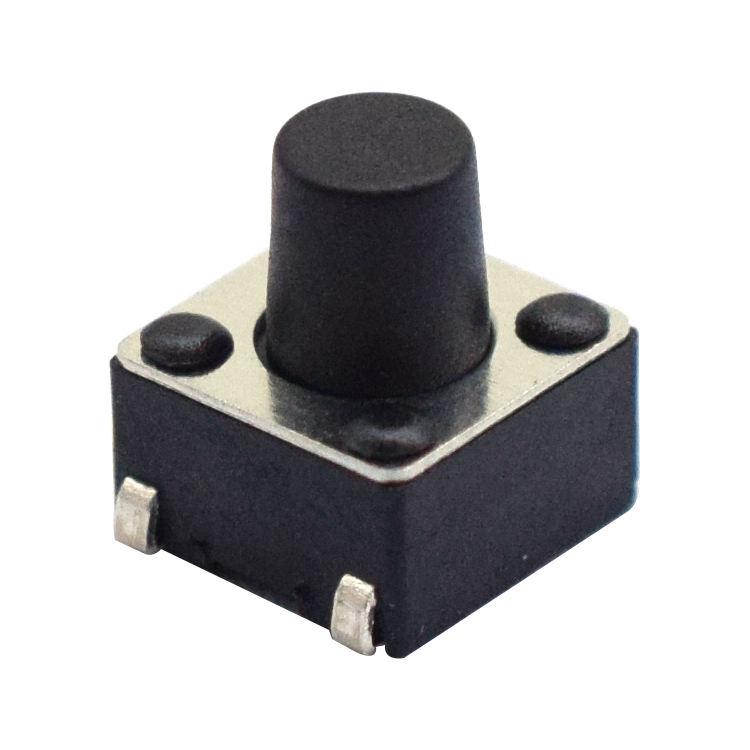

    50mA DC12V momentary 6*6 bend silicone push button micro smd tact switch

    50mA DC12V momentary 6*6 bend silicone push button micro smd tact switch Featured Image
    • 50mA DC12V momentary 6*6 bend silicone push button micro smd tact switch
    • 50mA DC12V momentary 6*6 bend silicone push button micro smd tact switch
    • 50mA DC12V momentary 6*6 bend silicone push button micro smd tact switch
    • 50mA DC12V momentary 6*6 bend silicone push button micro smd tact switch
    • 50mA DC12V momentary 6*6 bend silicone push button micro smd tact switch
    • 50mA DC12V momentary 6*6 bend silicone push button micro smd tact switch

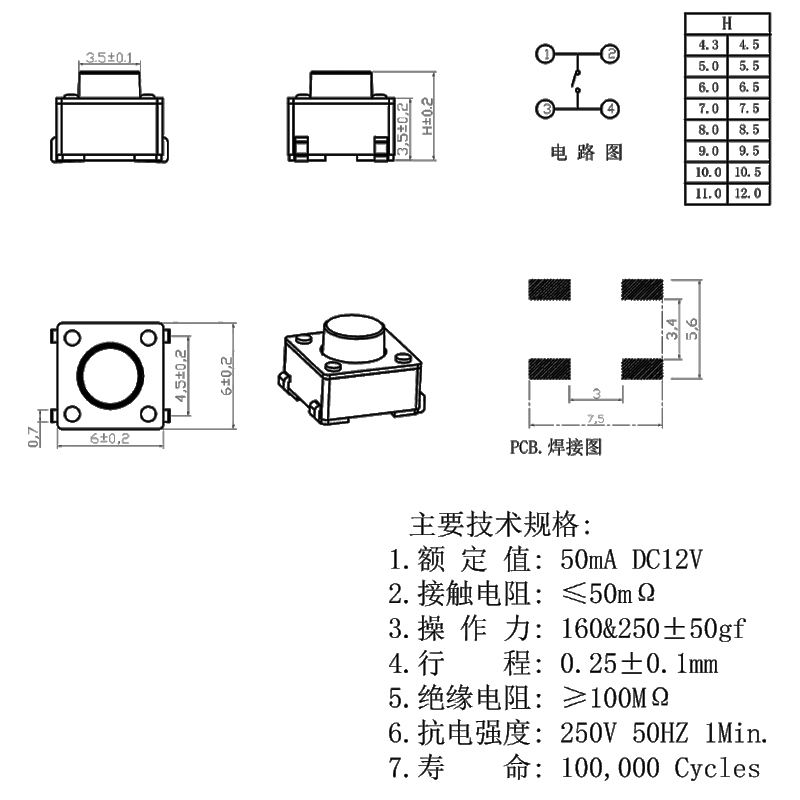

    Short Description:

    product name tact switch
    model number TS667BA
    Rated value 50mA DC12V
    Contact resistance ≤50mΩ
    Operating force 160&250±50gf
    journey 0.25±0.1mm
    Insulation resistance ≥100MΩ
    Electric strength 250V 50HZ 1Min.
    Life ≥100000 times

    Product Detail

    Product Tags

    Main-03 Main-01 Main-07 Main-06 Main-05
