    6 Pin 16 Pin USB 3.1 Connector Type-C Female IP67 IPX7 Waterproof Female Socket Rubber Ring High Current Fast Charging port

    6 Pin 16 Pin USB 3.1 Connector Type-C Female IP67 IPX7 Waterproof Female Socket Rubber Ring High Current Fast Charging port Featured Image
    • 6 Pin 16 Pin USB 3.1 Connector Type-C Female IP67 IPX7 Waterproof Female Socket Rubber Ring High Current Fast Charging port
    • 6 Pin 16 Pin USB 3.1 Connector Type-C Female IP67 IPX7 Waterproof Female Socket Rubber Ring High Current Fast Charging port
    • 6 Pin 16 Pin USB 3.1 Connector Type-C Female IP67 IPX7 Waterproof Female Socket Rubber Ring High Current Fast Charging port
    • 6 Pin 16 Pin USB 3.1 Connector Type-C Female IP67 IPX7 Waterproof Female Socket Rubber Ring High Current Fast Charging port
    • 6 Pin 16 Pin USB 3.1 Connector Type-C Female IP67 IPX7 Waterproof Female Socket Rubber Ring High Current Fast Charging port
    • 6 Pin 16 Pin USB 3.1 Connector Type-C Female IP67 IPX7 Waterproof Female Socket Rubber Ring High Current Fast Charging port

    Short Description:

    Essential details

    Model Number:
    type c 16P IPX7
    Type:
    Other
    Place of Origin:
    China
    Brand:
    SHOUHAN
    model number:
    type c 16P IPX7
    current rating:
    3.0A MAX
    Voltage:
    30 VAC
    Temoerature range:
    -30~+85℃
    contact resistance:
    40 MILLIOHM MAX
    Insulation resistance:
    100 MEGOHMS MIN
    Insertion force:
    6N-20N
    unmating force:
    8N-20N
    durability:
    10000 cycles
    waterproof:
    IPX7

    Product Detail

    Product Tags

    product name type c 16 pin
    model number type c 16P IPX7
    current rating 3.0A MAX
    Voltage 30 VAC
    Temoerature range -30~+85℃
    contact resistance 40 MILLIOHM MAX
    Insulation resistance 100 MEGOHMS MIN
    Insertion force 6N-20N
    unmating force 8N-20N
    durability 10000 cycles
    waterproof IPX7

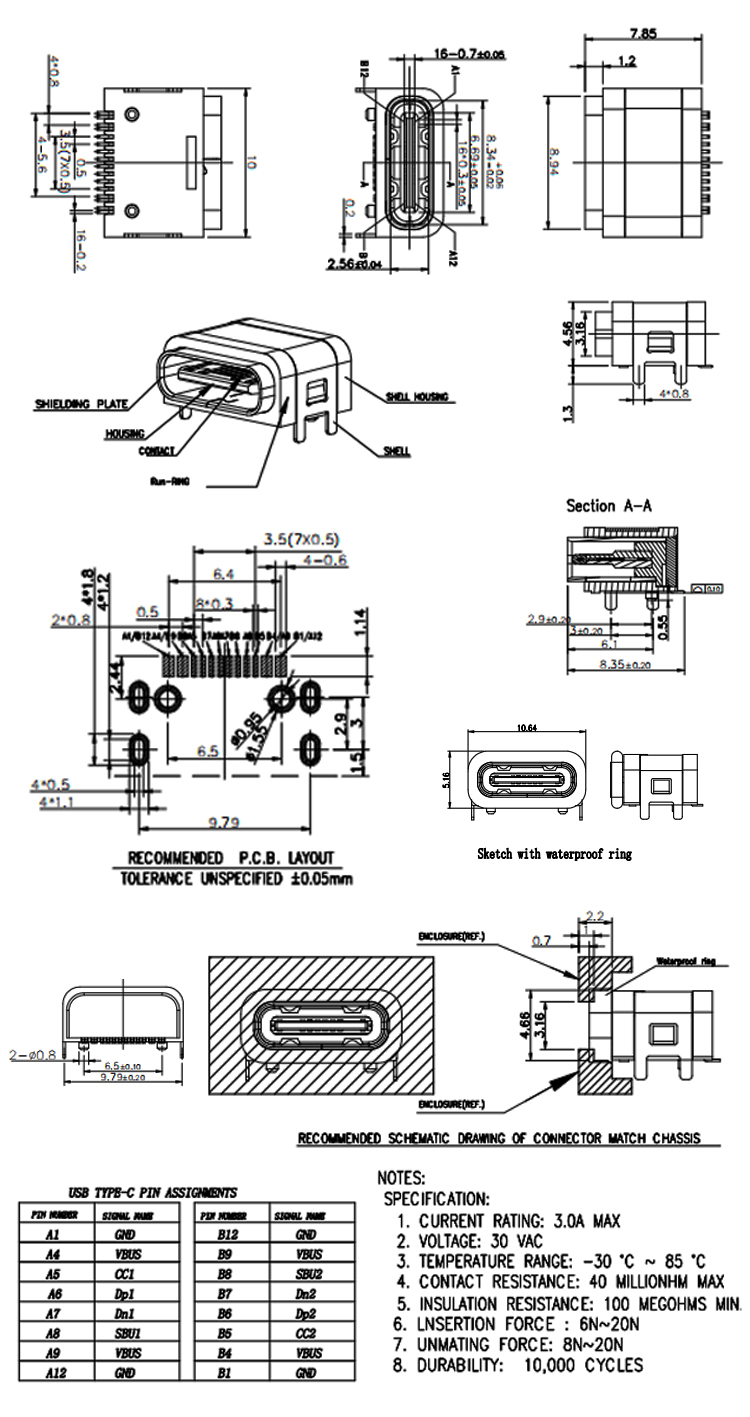

    H21f8e33ebf054211a64e064e1465f24ew
