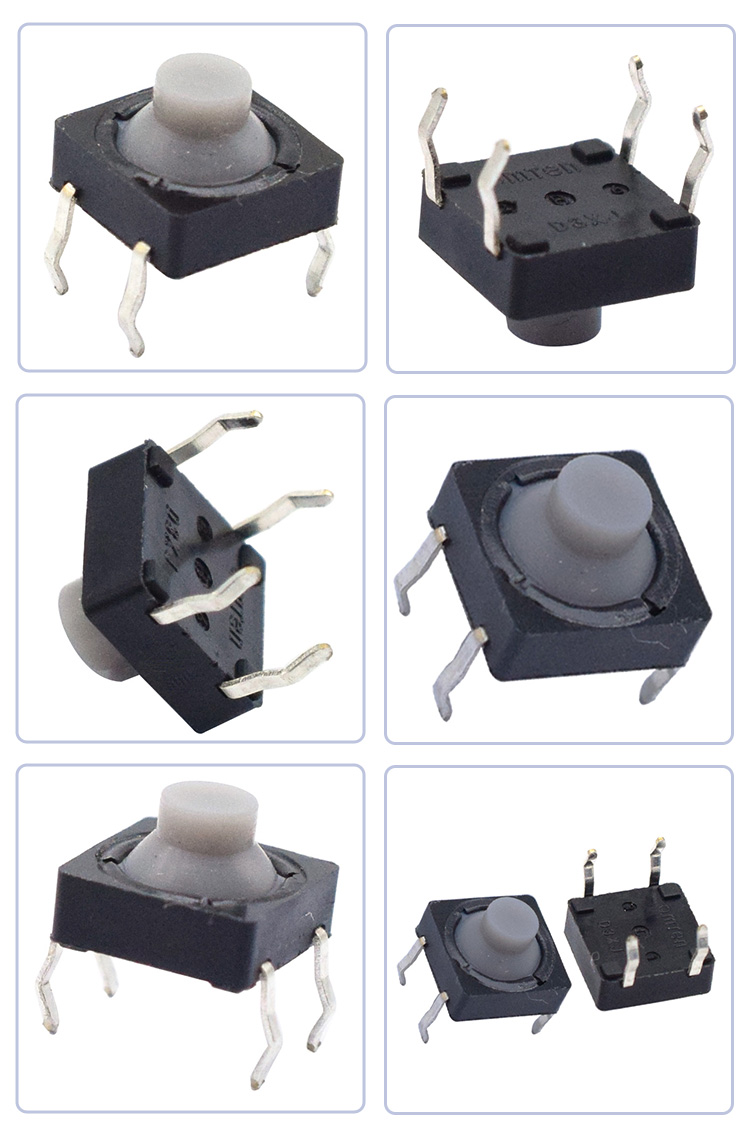

    8X8 mm 4pin tact switch DIP plastic button push button touch switch support customization

    8X8 mm 4pin tact switch DIP plastic button push button touch switch support customization Featured Image
    • 8X8 mm 4pin tact switch DIP plastic button push button touch switch support customization
    • 8X8 mm 4pin tact switch DIP plastic button push button touch switch support customization
    • 8X8 mm 4pin tact switch DIP plastic button push button touch switch support customization

    Short Description:

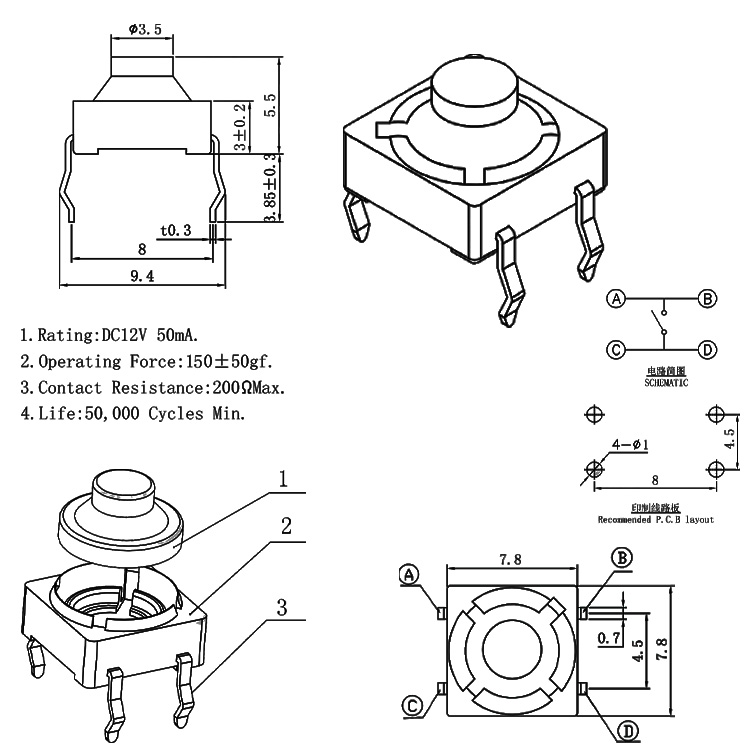

    product name tact switch
    model number TS8855CJ  SKEYAJA010
    rating DC12V 0.05A
    operating force 150±50gf
    contact resistance 200Ω max
    life 50000 (times)
