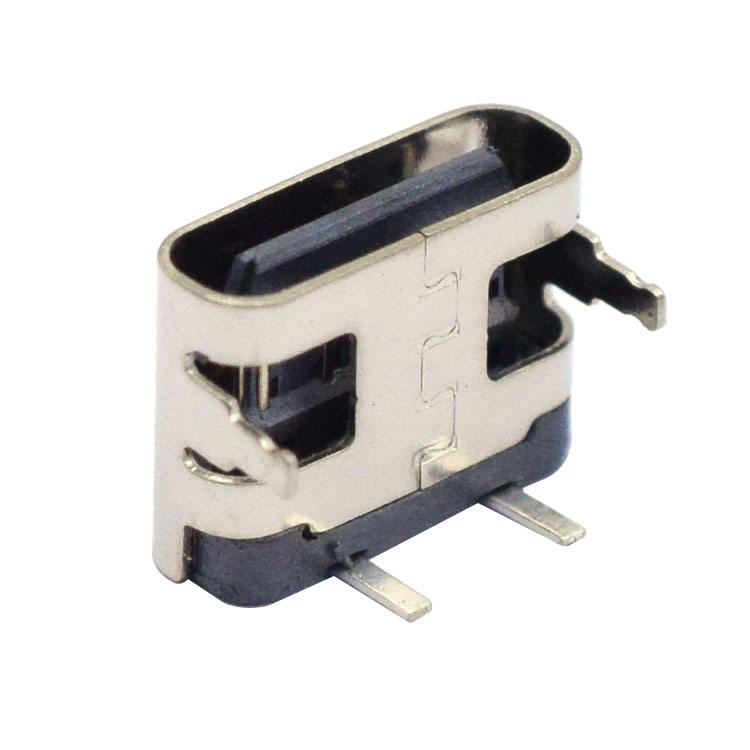

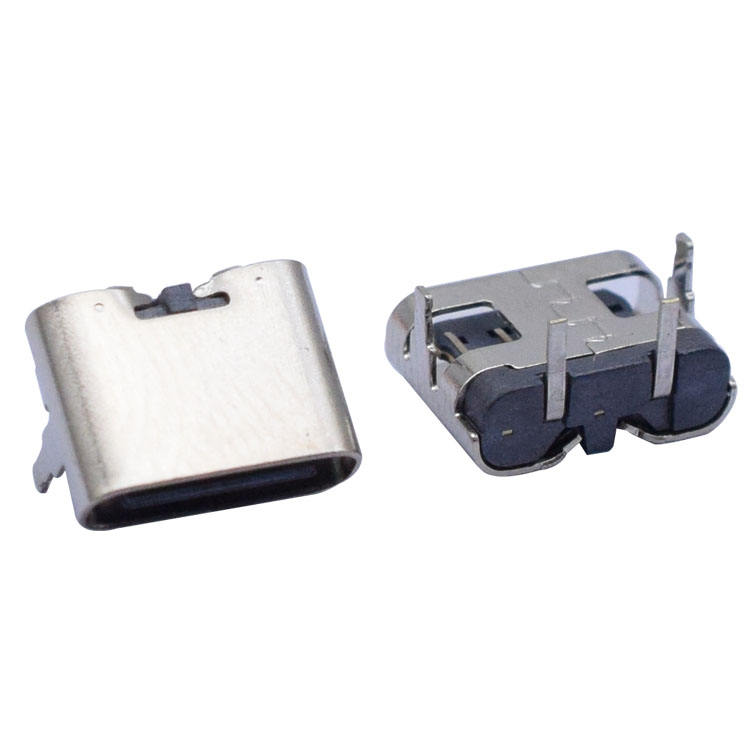

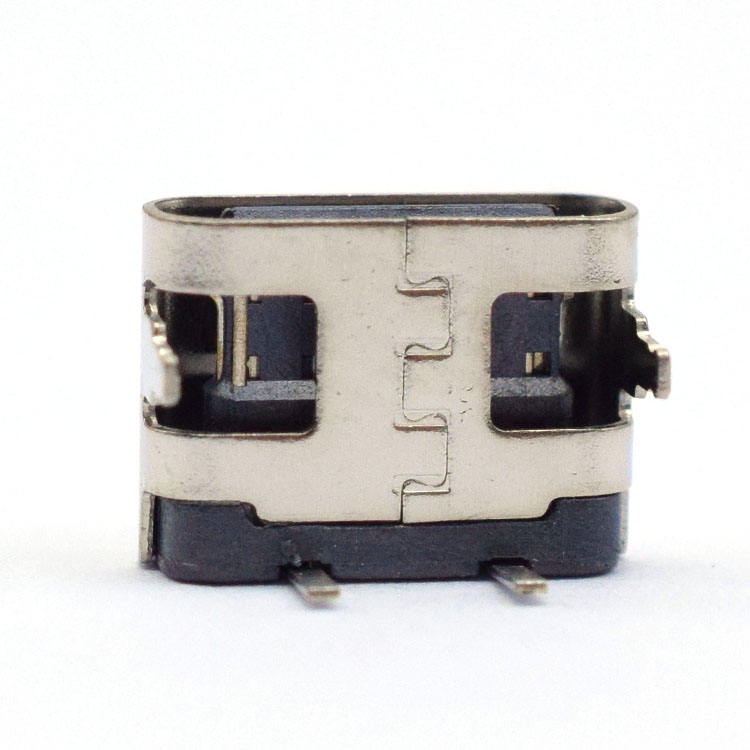

    90 degree usb type c 2 pin female connector socket

    90 degree usb type c 2 pin female connector socket Featured Image
    • 90 degree usb type c 2 pin female connector socket
    • 90 degree usb type c 2 pin female connector socket
    • 90 degree usb type c 2 pin female connector socket
    • 90 degree usb type c 2 pin female connector socket

    Short Description:

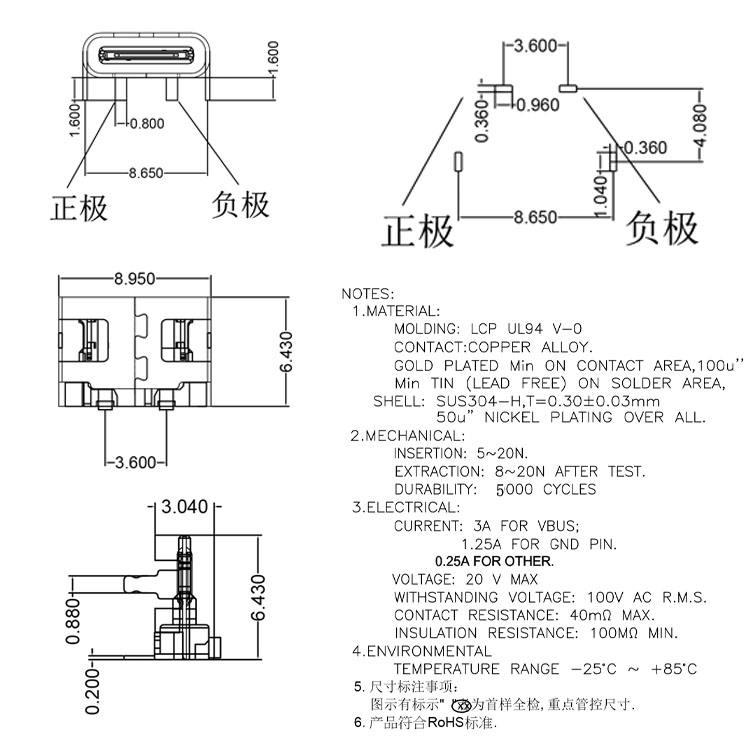

    product name TYPE-C 2PIN connector
    model number TYPE-C 2PIN 90 degree
    molding LCP UL94 V-0
    contact Copper Alloy
    insertion 5-20N
    extraction 8-20N
    durability 5000 cycles
    Voltage 20V MAX
    contact resistance 40mΩ  MAX
    Insulation resistance 100 MΩ Min
    temperature range - 25℃~+85℃

    Product Detail

    Product Tags

    Main-03 Main-04 Main-05 Main-07
