DB-14 panel mount fuse rocker switch female 250V AC power socket connector support customization

Short Description:

product name AC Power Socket
model number DB-14
current rating 10A
voltage rating 250V
Insulation resistance 100 MΩ 500VDC/1Min
Withstand voltage 2500VAC(50-60Hz)  5S
product application All kinds of Power Socket
weight 0.026Kg

Product Detail

Product Tags

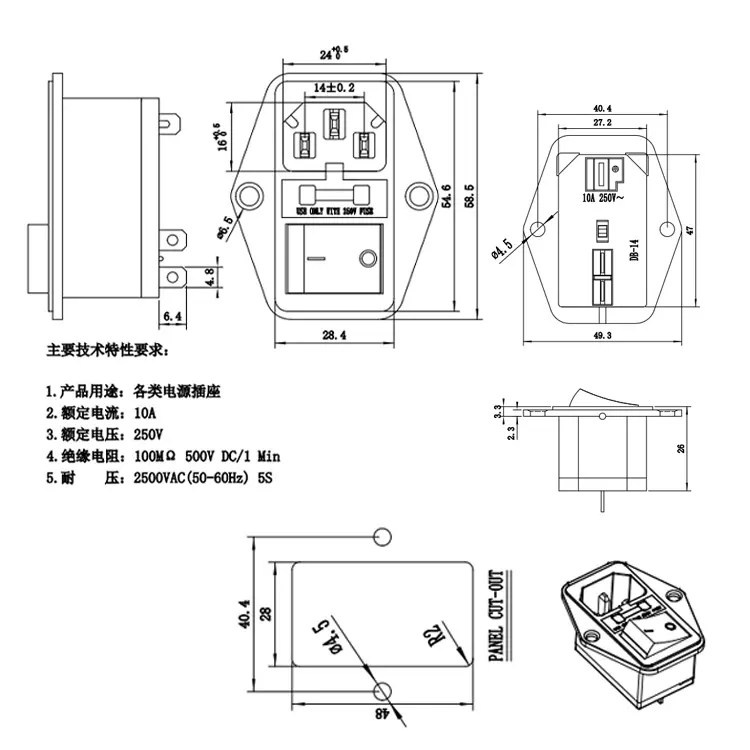

IEC C13 C14 socket panel mount with fuse and rocker switch female  for ac adapter ac connector male

Haifei rocker switch offer a high switching current in a compact design.It is a snap-in mounted rocker switch with a high mechanical life in a rugged nylon 66 housing.They have high quality for long life at heavy loads and industry-standard mounting dimensions.This ac socket can be used in a variety of applications, like Household appliances and industrial equipment.
