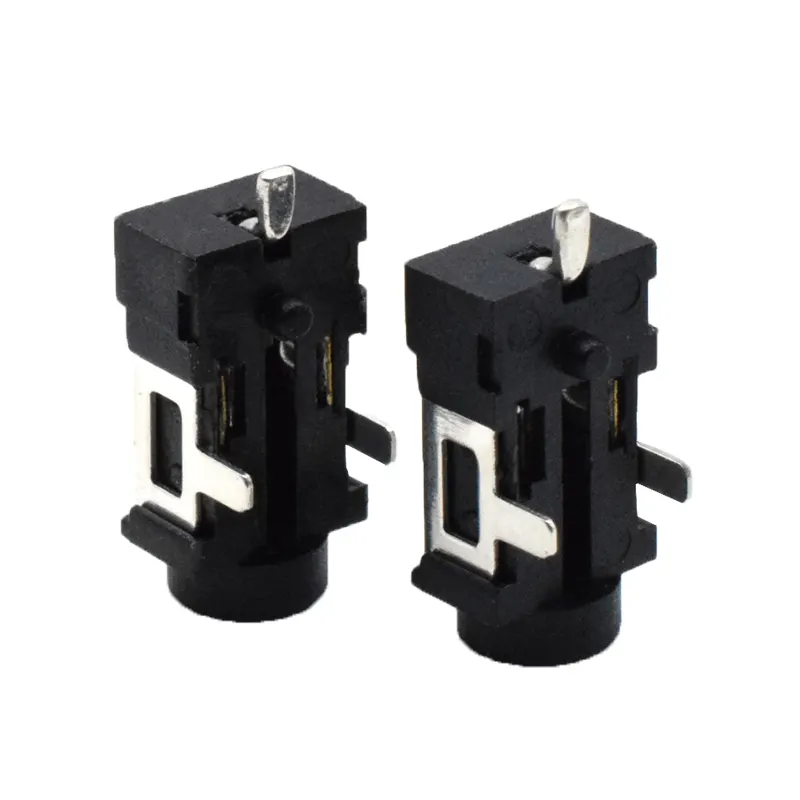

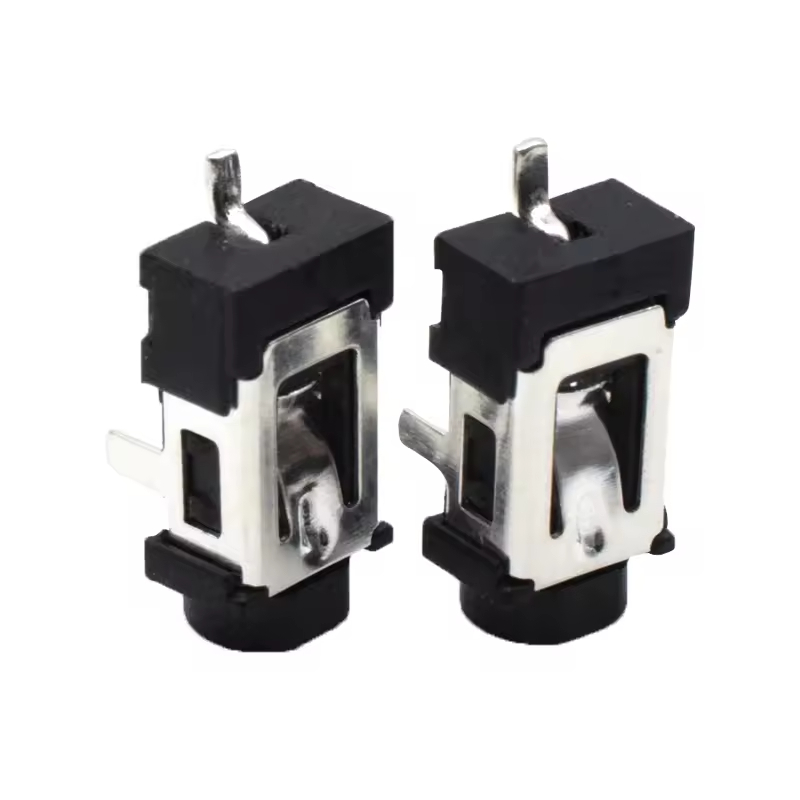

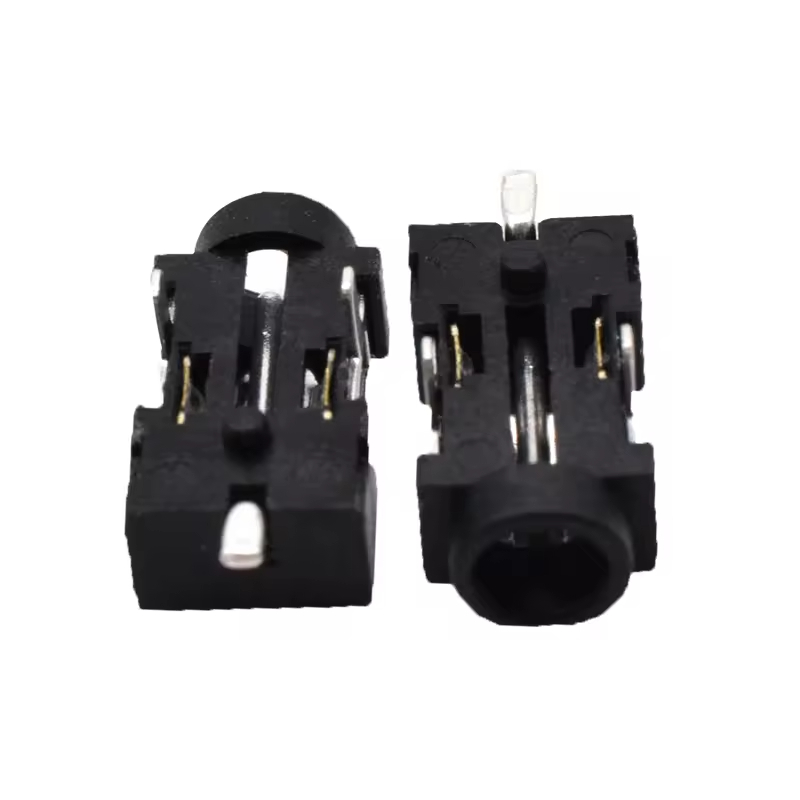

    DC-055B 3 Pin Black DC Power Jack Socket Connector 30V 0.5A female DC socket

    DC-055B 3 Pin Black DC Power Jack Socket Connector 30V 0.5A female DC socket Featured Image
    • DC-055B 3 Pin Black DC Power Jack Socket Connector 30V 0.5A female DC socket
    • DC-055B 3 Pin Black DC Power Jack Socket Connector 30V 0.5A female DC socket
    • DC-055B 3 Pin Black DC Power Jack Socket Connector 30V 0.5A female DC socket
    • DC-055B 3 Pin Black DC Power Jack Socket Connector 30V 0.5A female DC socket
    • DC-055B 3 Pin Black DC Power Jack Socket Connector 30V 0.5A female DC socket

    Short Description:

    product name DC socket
    Product number DC-055B
    contact resistance ≤0.03Ω
    Insulation resistance ≥100M Ω
    Insertion force 3-20N
    temperature range -40℃~55℃
    Rated voltage 30V
    Rated current 0.5A
    certified product ROHS
    Scope of application electronic product
    life ≥3000 times

    Product Detail

    Product Tags

    Main-02 Main-03 Main-04 Main-05
