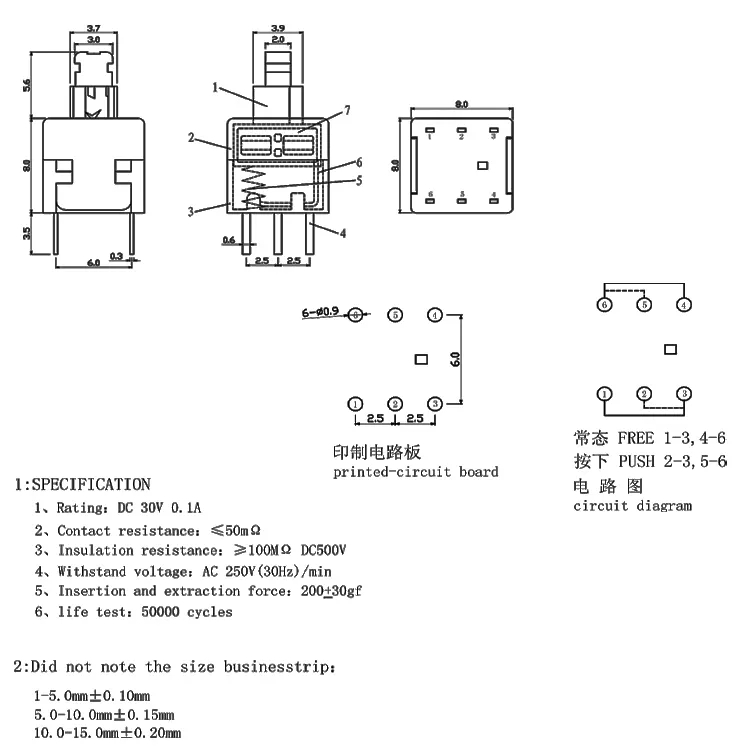

    DC30V 0.1A DIP tact switch 6 pin push button micro switch 8×8 momentary self-latchng Switch

    DC30V 0.1A DIP tact switch 6 pin push button micro switch 8×8 momentary self-latchng Switch Featured Image
    • DC30V 0.1A DIP tact switch 6 pin push button micro switch 8×8 momentary self-latchng Switch
    • DC30V 0.1A DIP tact switch 6 pin push button micro switch 8×8 momentary self-latchng Switch
    • DC30V 0.1A DIP tact switch 6 pin push button micro switch 8×8 momentary self-latchng Switch
    • DC30V 0.1A DIP tact switch 6 pin push button micro switch 8×8 momentary self-latchng Switch
    • DC30V 0.1A DIP tact switch 6 pin push button micro switch 8×8 momentary self-latchng Switch

    Short Description:

    product name NON-Lock Switch
    model number 8*8 NON-Lock Switch
    rating DC30V 0.1A
    contact resistance ≤50mΩ
    Insulation resistance ≥100MΩ/500VDC
    Withstand voltage AC 250V(30Hz)/min
    life test 50000 (times)
