    dip switch Dial Switch 1-12 pin position 2.54mm dip switches

    dip switch Dial Switch 1-12 pin position 2.54mm dip switches Featured Image
    • dip switch Dial Switch 1-12 pin position 2.54mm dip switches
    • dip switch Dial Switch 1-12 pin position 2.54mm dip switches
    • dip switch Dial Switch 1-12 pin position 2.54mm dip switches

    Short Description:



    Specifications
    Electrical Life:  2,000 operations min.
    Contact Resistance: 50mQ max.
    Insulation Resistance: 100MQ min
    Operation Temp: -20°C~ 70°C
    Operation Force: W9.8N max.
    Stroke: 2.0 mm
    Contact Rating: 25mA@24VDC(switching)
    100mA@50VDC(non-switching)






    Product Detail

    Product Tags

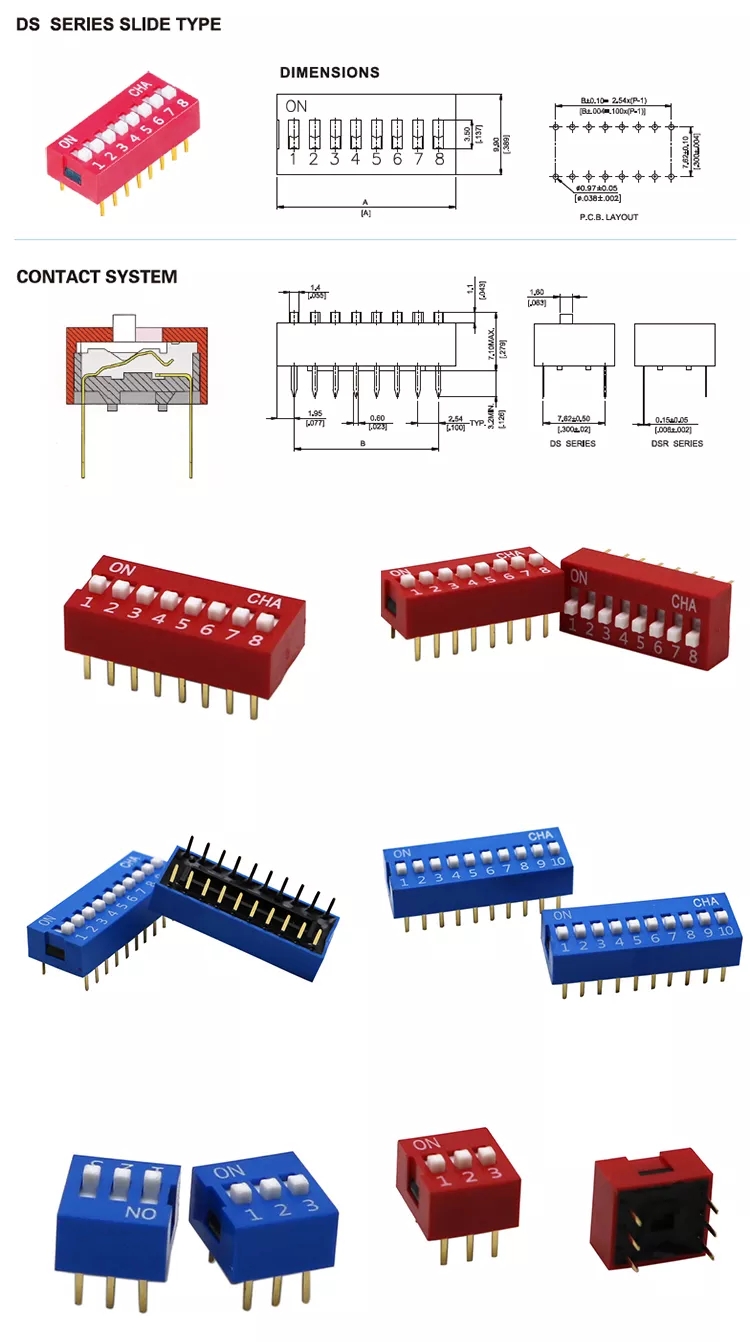

    H319564ce95cf412cba9f5f5744fe1ad2D.webp_1

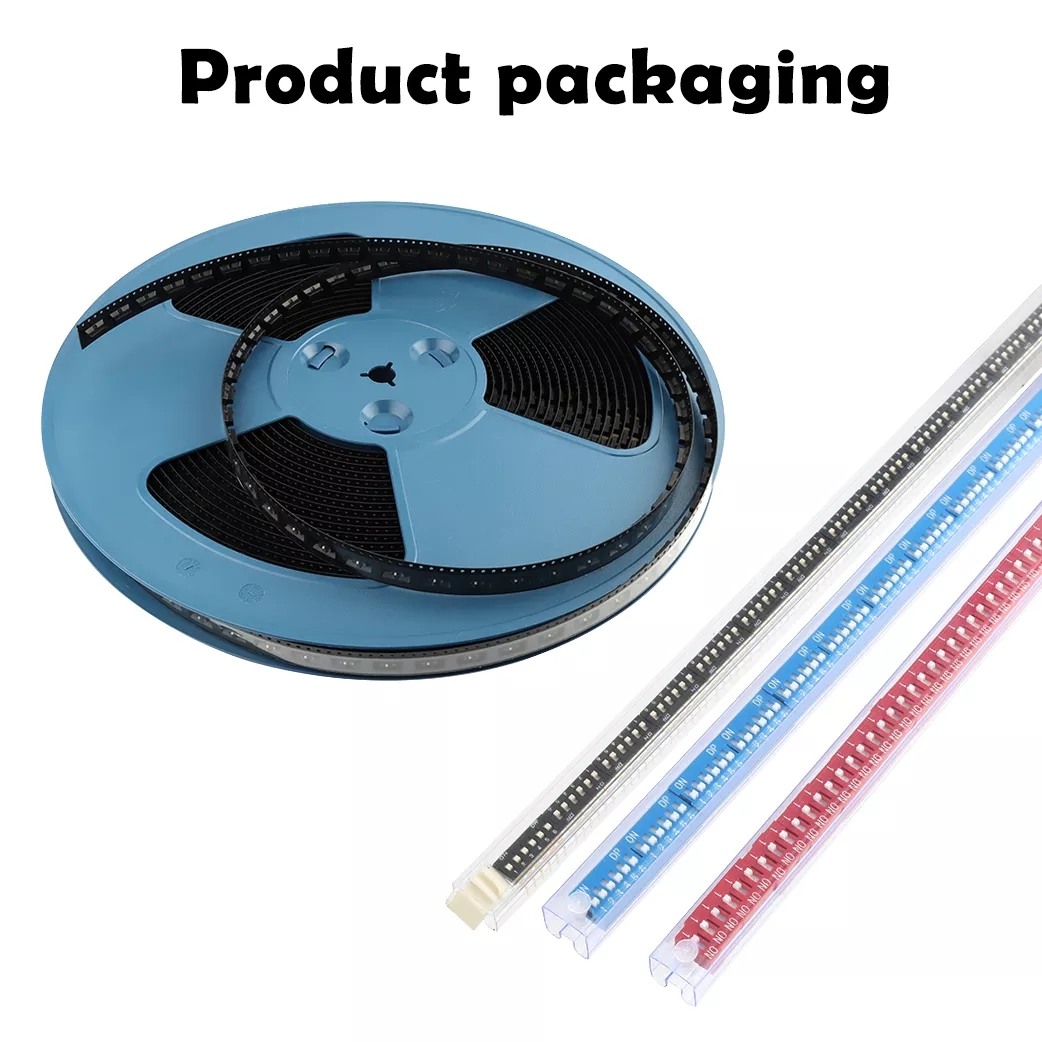

    PACKING

    H179d8dd4e5414bb4878d76f145980b95b.webp_

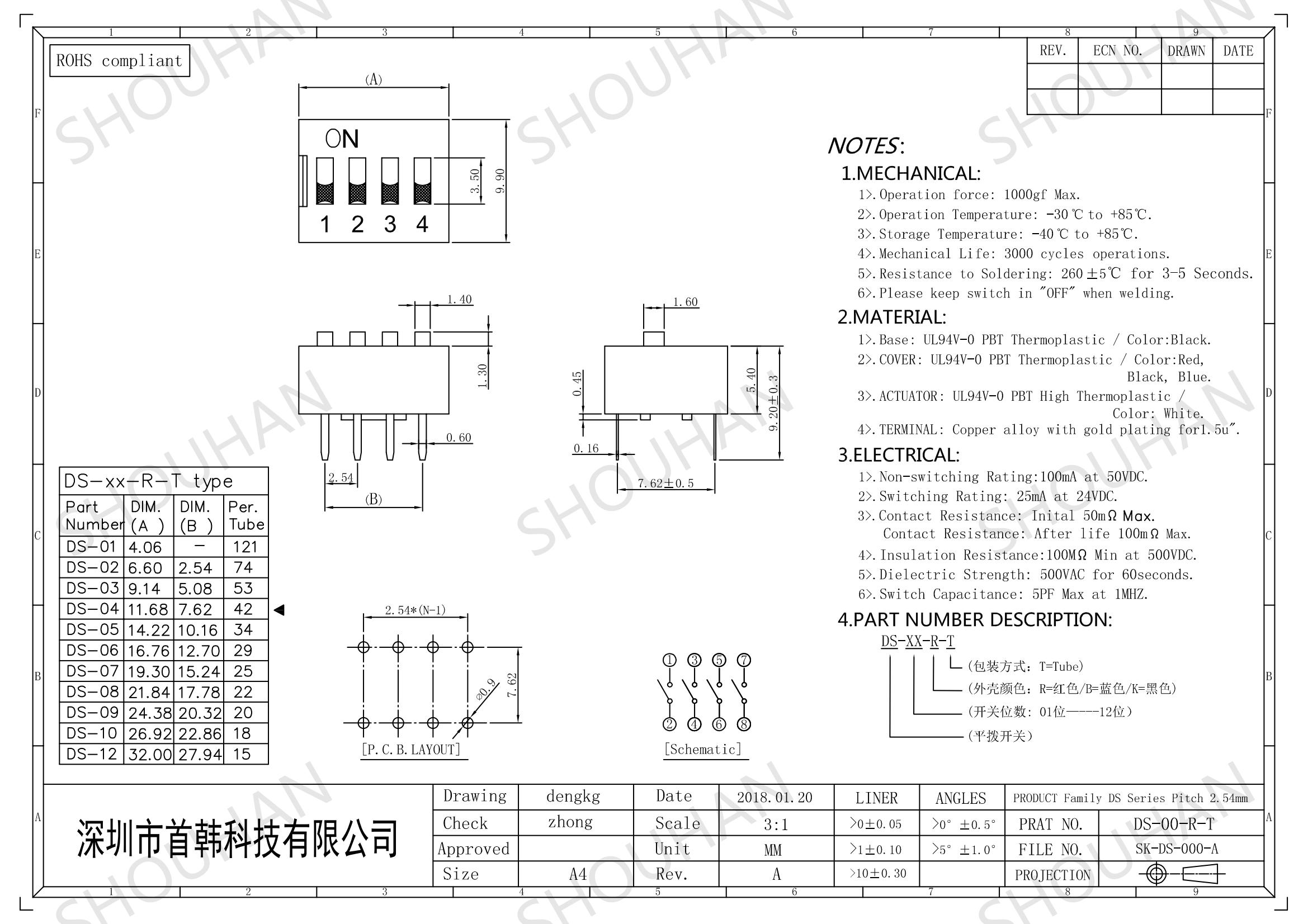

    drawing & specification

    拨码开关2.54-红蓝色插件_002
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
