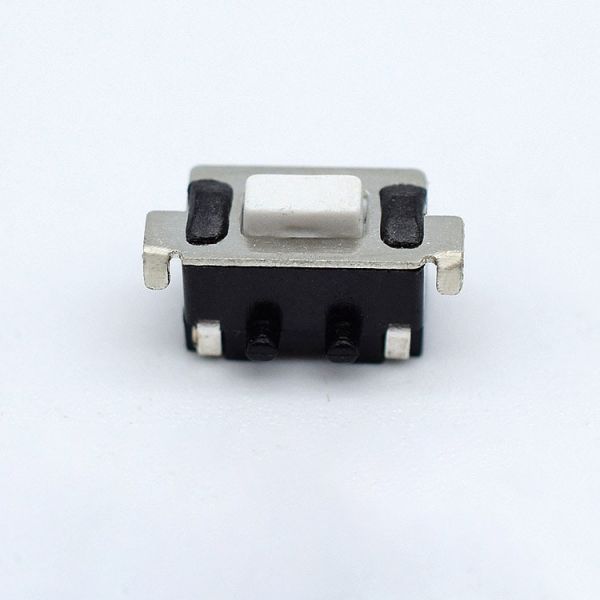

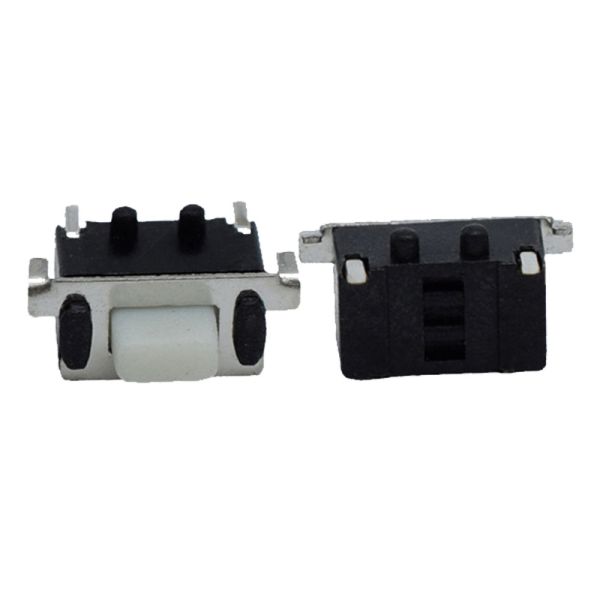

EVPAKE31A Tactile Switch 3*6 SMD 2 Pin Button Switch ON-OFF Switch

Short Description:

Certification:ROHS

Whether the smart:NO

Place of Origin:Guangdong, China

Brand Name:SHOUHAN

Model Number:TS36HCA EVPAKE31A

Protection Level:IP40

Max. Cuurent:50mA

Max. Voltage:12V DC

LED:Other

Insulation Resistance:100MΩ Min

Contact Resistance:100MΩ Max

Operating force:250±40gf

Full Travel:0.25±0.1mm

Operation life:50,000 Cycles

Operating temperature:-20℃~ +70℃

Operation type:Momentary OFF-(ON)

Product name:3*6 Switch Tactile

Dielectric voltage proof:250V AC (50Hz)/1min

Ratings:12V DC, 50mA

Send email to us

Product Detail

Product Tags

Designed with precision, the EVPAKE31A Tactile Switch measures 3*6mm, making it ideal for use in a wide range of electronic devices such as smartphones, tablets, gaming consoles, and many more. Its small form factor allows for seamless integration into even the most space-constrained designs, without compromising on functionality or quality.

Crafted with utmost attention to detail, this switch is equipped with high-quality materials that ensure long-lasting performance. The 2-pin configuration makes it incredibly easy to install, and the intuitive ON-OFF function allows for convenient operation. Whether you’re powering devices on or off, this switch guarantees a smooth and reliable experience every time.

One of the standout features of the EVPAKE31A Tactile Switch is its exceptional tactile feedback. The carefully engineered design provides a satisfying click feel, enhancing the user experience. With this switch, you can be confident that every press will be registered accurately and without any delay.

Moreover, the EVPAKE31A Tactile Switch boasts excellent electrical performance. It has a rated voltage of 12V DC and a contact rating of 50mA, ensuring secure and efficient switching operations. Rest assured that this switch meets the highest industry standards for quality and reliability.
