    EVQ9P701P EVQP7D01P SMD SMT 12V tactile switch 4 pin mini push button tact switch customizable

    EVQ9P701P EVQP7D01P SMD SMT 12V tactile switch 4 pin mini push button tact switch customizable Featured Image
    • EVQ9P701P EVQP7D01P SMD SMT 12V tactile switch 4 pin mini push button tact switch customizable
    • EVQ9P701P EVQP7D01P SMD SMT 12V tactile switch 4 pin mini push button tact switch customizable
    • EVQ9P701P EVQP7D01P SMD SMT 12V tactile switch 4 pin mini push button tact switch customizable
    • EVQ9P701P EVQP7D01P SMD SMT 12V tactile switch 4 pin mini push button tact switch customizable

    Short Description:

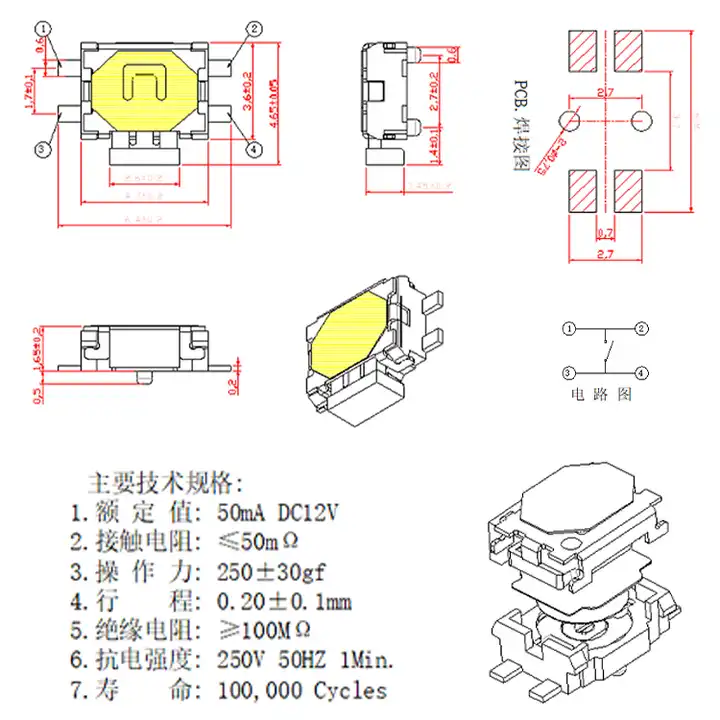

    product name SMD tact switch
    model number TSD4A
    rating 50m A DC12V
    Contact resistance ≤50MΩ
    Operating force 250±30gf
    stroke 0.20±0.1mm
    Insulation resistance ≥100MΩ
    Electric strength 250V 50HZ 1Min.
    Life ≥100000 times

    Product Detail

    Product Tags

    H54a510c77e2a47868376ad9ee01e47a86.jpg_720x720q50
