Factory directly supply Rocker Switch 4svdc - Rocker switch KCD117-4P 6A 250V with led light 4 pin two position on-off switch – Shouhan Detail:

Rocker switch product advantages:

KCD1-104 4P 6250VAC on-off rocker switch 4 pin with small RED lamp illumination.

Black case, solder lug or straight pc terminals, silver or gold plated terminals. Ratings up to 6 amps.

Fast delivery, provide free samples, have RoHS report and CE certification, cycle life can meet

10k times.



Application fields:

Widely used in the fields of small household products, communication equipment, energy generator, electric tools, table lamp, electric motor, electric motor car, electric toy, medical facilities



Factory strengths:

With more than thirteen years of industry experience, the company has passed ISO9001 certification, a number of patent certificates, more than five thousands cooperative customers, many customers of listed companies, one hundred and six employees, twelve hardware punches, eighteen injection molding machines, twenty six full-automatic assembly machines, thirty two full-automatic testing machines, twenty-two semi-automatic testing machines, twelve life testing machines and twenty-five other testing equipments



Our rocker switch can pass the below tests:

1) humidity test

the jack shall be stored at a temperature

of 40±2℃ and a humidity of 90%to 96% for 96 hr, then the jack shall be maintained at standard atmospheric condition for 1 hr for other procedures

2) Temperature Cycling test

DC Voltage 1.5 times as much as rated voltage shall be applied continuously between adjacent at 60±2℃and 90~95%RH for 500hours, the switch shall be allowed to stand under normal temperature and humidity conditions for 1hour, and measurement shall be made within 1hour

After that, water drops shall be eliminated.

After test contact resistance:100mΩMax, Insulation resistance:10mΩMin, rocker switch shall be free from abnormalities in appearance construction.

3) Salt mist test

The switch shall be checked after following test:

(1) Temperature:35±2℃

(2) Salt solution:5±1%(Solids by mass)

(3) Duration: 24±1hour

After test, salt deposit shall be removed by running water, and no remarkable corrosion

shall be recognized in metal part.

4) Cycle life test

10,000 cycles of operation shall be performed continuously at a rate of 80cycles per minute with

6A 250VAC; 10A 125VAC

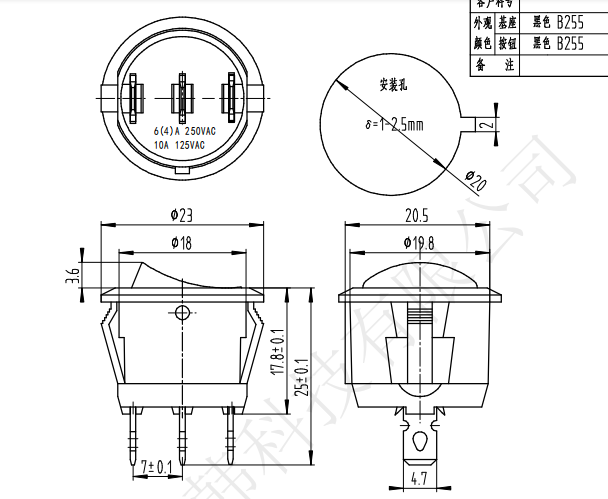

Product detail pictures:

Factory directly supply Rocker Switch 4svdc - Rocker switch KCD117-4P 6A 250V with led light 4 pin two position on-off switch – Shouhan detail pictures

Factory directly supply Rocker Switch 4svdc - Rocker switch KCD117-4P 6A 250V with led light 4 pin two position on-off switch – Shouhan detail pictures

Factory directly supply Rocker Switch 4svdc - Rocker switch KCD117-4P 6A 250V with led light 4 pin two position on-off switch – Shouhan detail pictures
