Factory Price For Usb C Magnetic Adapter 24pins Type C Connector - HOT SALE TYPE C 6 Pin Board SMT Waterproof Female L=7.5mm, With Locate Column Two DIP Feet IPX8 Class B USB C Type Connetor – Shouhan

Short Description:


Product Detail

Product Tags

Related Video

Feedback (2)

Our advantages are lower prices,dynamic sales team,specialized QC,strong factories,high quality products and services for 12 volt barrel plug, dc adapter plug types, dc power jack 2.1 mm, "Quality", "honesty" and "service" is our principle. Our loyalty and commitments remain respectfully at your support. Call Us Today For even further info, get hold of us now.
Factory Price For Usb C Magnetic Adapter 24pins Type C Connector - HOT SALE TYPE C 6 Pin Board SMT Waterproof Female L=7.5mm, With Locate Column Two DIP Feet IPX8 Class B USB C Type Connetor – Shouhan Detail:

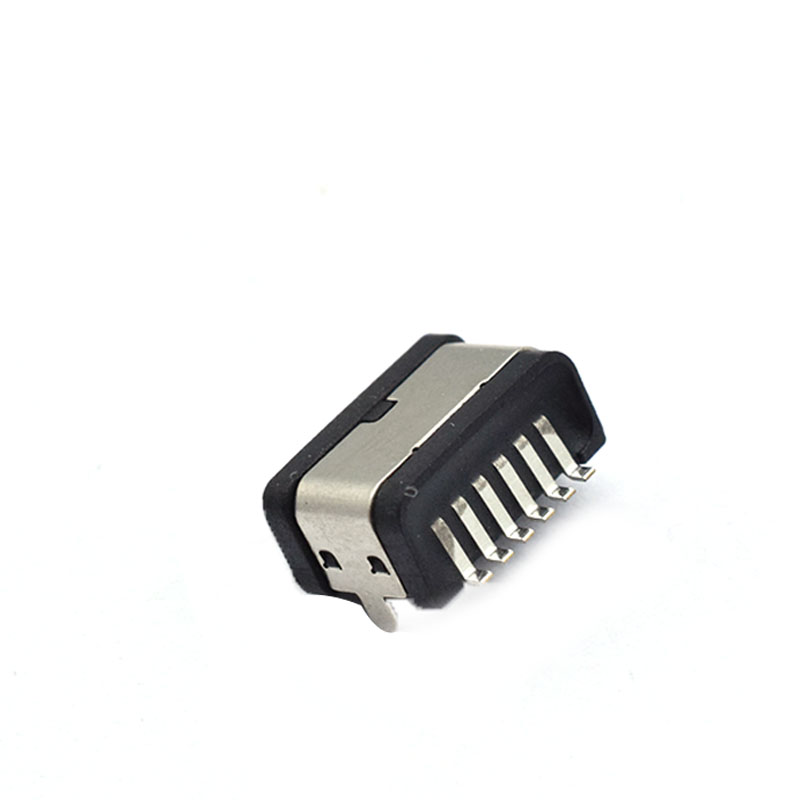

HOT SALE TYPE C 6 Pin board SMT waterproof female L=7.5mm, With Locate column two DIP feet IPX8 class B USB C Type Connetor

Product Name TYPE C 6P IPX8 B
Size 10.54*4.76*7.50mm(Length)
Waterproof Level IPX8
Rating Voltage 30V
Operating temperature -20℃~+85℃
Contact Resistance 40mΩ±10mΩ Max
Insulation Resistance 100mΩ Min
Withstand Voltage 100VR.M.S.
Contact Current VBUS Pin:3A ;GND Pin:1.25A; Other Pin:0.25A
Mechanical Life 10,000Cycles
Connection Force 0.51-2.04kg
Disconnection Force 0.51-2.04kg

Back view of Type C(6 Pin SMD)

6

Vertical View and Front Of Type C(The middle piece of metal has two DIP pins)


Bottom View of  Type C(two fixed columns)



微信图片_20211230114229

微信图片_20211230114433

FAQ

Q: Are you a factory or trading company?
A: We are a factory,  our price is  competitive.welcome to visit our factory.

Q: How about your quality control?
A: All the products will be 100% checked before the shipment.

Q: How could I get a sample?
A: Free sample,you can take it from our office by  your express delivery or pay express fee to us to send you.

Q: What is your warranty ?
A: Within 90 days after shipment  if quality problem we will solve it well or we accept return of goods and refund your money .

Q: Shipping
A: UPS / Fedex / DHL / TNT / EMS. or pls contact us directly which way your pre ferred.

3人联系方式




Product detail pictures:

Factory Price For Usb C Magnetic Adapter 24pins Type C Connector - HOT SALE TYPE C 6 Pin Board SMT Waterproof Female L=7.5mm, With Locate Column Two DIP Feet IPX8 Class B USB C Type Connetor – Shouhan detail pictures

Factory Price For Usb C Magnetic Adapter 24pins Type C Connector - HOT SALE TYPE C 6 Pin Board SMT Waterproof Female L=7.5mm, With Locate Column Two DIP Feet IPX8 Class B USB C Type Connetor – Shouhan detail pictures

Factory Price For Usb C Magnetic Adapter 24pins Type C Connector - HOT SALE TYPE C 6 Pin Board SMT Waterproof Female L=7.5mm, With Locate Column Two DIP Feet IPX8 Class B USB C Type Connetor – Shouhan detail pictures


Related Product Guide:

Our primary objective is always to offer our clients a serious and responsible small business relationship, offering personalized attention to all of them for Factory Price For Usb C Magnetic Adapter 24pins Type C Connector - HOT SALE TYPE C 6 Pin Board SMT Waterproof Female L=7.5mm, With Locate Column Two DIP Feet IPX8 Class B USB C Type Connetor – Shouhan, The product will supply to all over the world, such as: Swiss, Roman, Liberia, We have established long-term, stable and good business relationships with many manufacturers and wholesalers around the world. Currently, we are looking forward to even greater cooperation with overseas customers based on mutual benefits. Please feel free to contact us for more details.
  • The company has a good reputation in this industry, and finally it tured out that choose them is a good choice.
    5 Stars By Belinda from Portland - 2018.02.21 12:14
    It's really lucky to find such a professional and responsible manufacturer, the product quality is good and delivery is timely, very nice.
    5 Stars By Jean Ascher from Netherlands - 2018.12.11 14:13
