    Gold Plated HD Multimedia Interface type a female Vertical Clamp H-D-M-I female socket connector 19 Pin for 1.6mm PCB

    Gold Plated HD Multimedia Interface type a female Vertical Clamp H-D-M-I female socket connector 19 Pin for 1.6mm PCB Featured Image
    • Gold Plated HD Multimedia Interface type a female Vertical Clamp H-D-M-I female socket connector 19 Pin for 1.6mm PCB
    • Gold Plated HD Multimedia Interface type a female Vertical Clamp H-D-M-I female socket connector 19 Pin for 1.6mm PCB
    • Gold Plated HD Multimedia Interface type a female Vertical Clamp H-D-M-I female socket connector 19 Pin for 1.6mm PCB
    • Gold Plated HD Multimedia Interface type a female Vertical Clamp H-D-M-I female socket connector 19 Pin for 1.6mm PCB
    • Gold Plated HD Multimedia Interface type a female Vertical Clamp H-D-M-I female socket connector 19 Pin for 1.6mm PCB

    Short Description:



    product name H-D-M-I Female Connector
    Model Number H-D-M-I-19P-F1.6
    voltage/current 40V/1A
    contact resistance 10MΩ max
    Insulation resistance 100 MΩ Min
    Insertion force 4.5kgf MAX
    Pull out force 1.0kgf MIN
    current rating 0.5 Amp Max.
    voltage rating 40 V ac(r.m.s)Max.
    Operating temperature range -25℃~+85℃

    Product Detail

    Product Tags

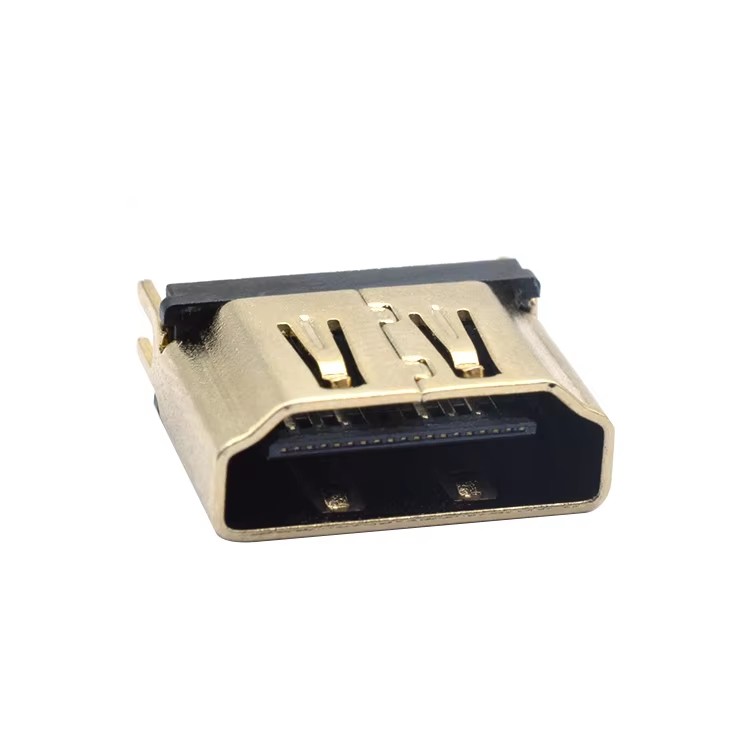

    Hadfc453106e04d99b1bf4d140fd6644aN.avif
