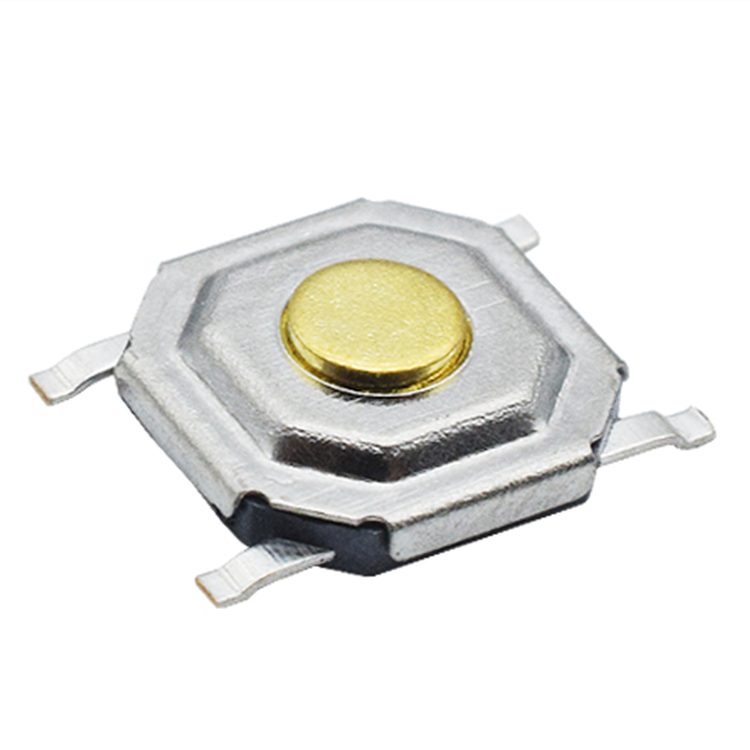

PTS526SMG20SMTR21 4×4 Copper Head Tactile Switch SMD 4 pin 5.2*5.2*1.5mm for earphone EVQPLHA15 SKQGABE010
-
Product Name TS5215A Size 5.2*5.2*1.5mm(Height) Waterproof Level – Rating Voltage 12V Operating temperature -20℃~+80℃ Contact Resistance 100mΩ Max Insulation Resistance 100mΩ Min Withstand Voltage 250VAC(50/60Hz)/min Contact Current 50mA Operating Life 100,000Cycles Operating Force 260±50g
