Title : Pitch 2.54mm DIP Switch red blue SLPS DIP Switch
Basic Info.
  • Brand Name: MATX
  • Max. Current: 24VDC
  • Max. Voltage: 25mA
  • Pitch: 2.54mm
  • Colour: Red Blue
  • Base: UL94V-0 PBT Thermoplastic black
  • Cover: UL94V-0 PBT Thermoplastic red
  • Terminal: copper alloy plating
  • Packing: Tube or Tape and Reel
  • Electrical life: 2000 operations per switch 24VDC,25mA
  • Delivery time: 10-15days
  • Min.Order: 100 Piece/Pieces
  • Means of Transport: Ocean, Air, Land
Supply Capacity
  • Production Capacity: 500000pins/day
  • Packing:tube or tape and reel
  • Delivery Date: according to the order quantity

Details of Pitch 2.54mm DIP Switch red blue SLPS DIP Switch

  1).Material:

a.base:UL94V-0 PBT Thermoplastic black

b.cover:UL94V-0 PBT Thermoplastic red,blue

c.button:UL94V-0 PBT Thermoplastic white

d.terminal:copper alloy plating

  2).Mechanical:

a.operating force:0.2kgf(max)

b.stroke:2.00mm

c.operation temp:-20℃~+70℃

d.storage temp:-40℃~+85℃

  3).Electrical:

a.electrical life:2000 operations per switch 24VDC,25mA

b.Non-switching rating:100mA,50VDC

c.Switching rating:25mA,24VDC

d.the contact impedance A:initial value of the maximum 50mΩ, B testing after the maximum 100mΩ.

e.insulation resistance:(at 500VDC) 100mΩ min

f.dielectric strength:500VAC/1minute

g.capacitance:Max 5 pF

h.the loop:single contact single selection

4).the loop:single contact single selection:

a.for best results,please follow these recommendation:keep all swith contacts in their “OFF” position for all operations

b.wave soldering:recommended solder temperature at 250±5℃,3-5 seconds.

c.hand welding:use 30 watt iron control temperature at 320℃.the welding time is about 2 seconds.

d.cleaning:cleaning process using ultrasonic method,can give better results,use steam mode,temperature should not exceed 51℃.

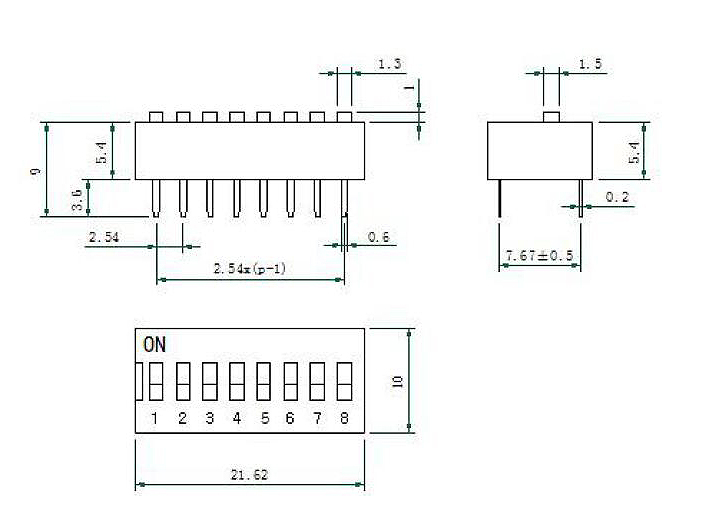

5).Dimension

part number position DIM.A.(mm)
MX 1001-1P 1 3.90
MX 1001-2P 2 6.64
MX 1001-3P 3 9.18
MX 1001-4P 4 11.72
MX 1001-5P 5 14.20
MX 1001-6P 6 16.80
MX 1001-7P 7 19.34
MX 1001-8P 8 21.88
MX 1001-9P 9 24.42
MX 1001-10P 10 26.96
MX 1001-12P 12 32.04



5.Package of 2.54mm DIP Switch high quality SLPS

1.we pack the DIP Switch with IC TUBE or Tape and Reel,so keep the goods are in high quality when delivery.

2.we pack the DIP SWITCH with two steps,inner is tube or tape and reel,outer is carton.

3.we pack the DIP SWITCHas your special requirements.
