    hot sale high quality copper head PJ-210 3 pin plug universal DIP female headphone audio socket phone Jack 30V 0.2A customizable

    hot sale high quality copper head PJ-210 3 pin plug universal DIP female headphone audio socket phone Jack 30V 0.2A customizable Featured Image
    • hot sale high quality copper head PJ-210 3 pin plug universal DIP female headphone audio socket phone Jack 30V 0.2A customizable
    • hot sale high quality copper head PJ-210 3 pin plug universal DIP female headphone audio socket phone Jack 30V 0.2A customizable
    • hot sale high quality copper head PJ-210 3 pin plug universal DIP female headphone audio socket phone Jack 30V 0.2A customizable
    • hot sale high quality copper head PJ-210 3 pin plug universal DIP female headphone audio socket phone Jack 30V 0.2A customizable
    • hot sale high quality copper head PJ-210 3 pin plug universal DIP female headphone audio socket phone Jack 30V 0.2A customizable
    • hot sale high quality copper head PJ-210 3 pin plug universal DIP female headphone audio socket phone Jack 30V 0.2A customizable

    Short Description:



    product name headphone socket
    Product number PJ-210
    Rated electrical load 30V 0.2A
    Contact resistance ≤0.02Ω
    Insulation resistance ≥100M Ω
    Pressure resistance AC250V(50Hz)min
    Insertion force 3-10N
    life 5000 cycles
    Material copper head

    Product Detail

    Product Tags

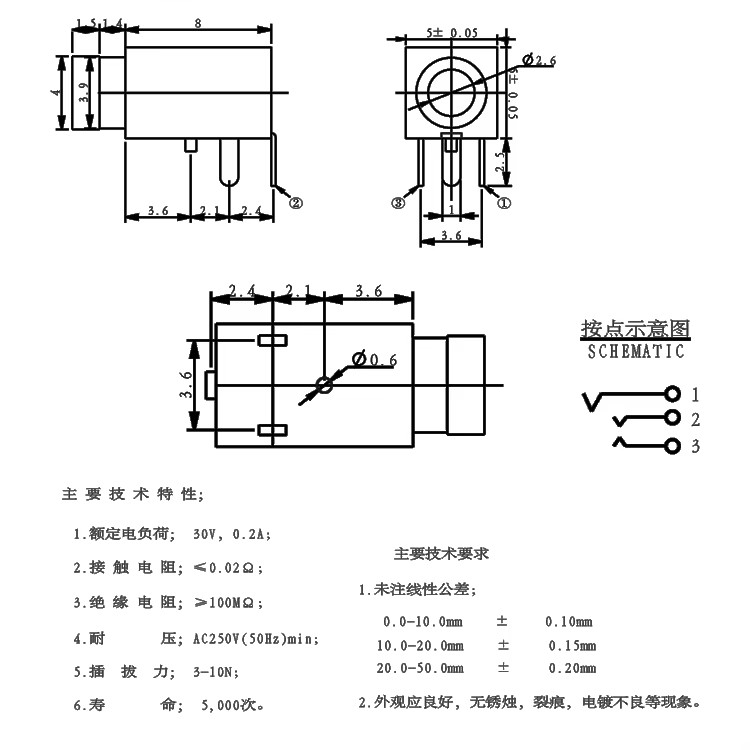

    H09e4cbbee55742baaa9331919722a48bE.avif
