    HOT SALE Micro 180 degree flat edge Micro USB Connector Plugs Female Terminal 6.9mm micro usb b 5 pin connector usb 3.0 connector

    HOT SALE Micro 180 degree flat edge Micro USB Connector Plugs Female Terminal 6.9mm micro usb b 5 pin connector usb 3.0 connector Featured Image
    • HOT SALE Micro 180 degree flat edge Micro USB Connector Plugs Female Terminal 6.9mm micro usb b 5 pin connector usb 3.0 connector
    • HOT SALE Micro 180 degree flat edge Micro USB Connector Plugs Female Terminal 6.9mm micro usb b 5 pin connector usb 3.0 connector
    • HOT SALE Micro 180 degree flat edge Micro USB Connector Plugs Female Terminal 6.9mm micro usb b 5 pin connector usb 3.0 connector

    Short Description:

    Product description
    Item name: Micro 180 degree flat edge usb connector
    Rating: DC 30V 0.2A
    Insulation resistance: ≥1000mΩ min. 500V DC
    Dielectric strength: 250V AC for 1 min
    Contact resistance: ≤50mΩ
    Insertion force: ≤35N
    Extraction force: ≥10N
    Usage:
    -Mainly used in high end industries,such as digital camera interface products,computer accessories,electronic toys,mobile phone charging interface and other products need to charge.

    Product Detail

    Product Tags

    Quick Details

    Model Number:
    Micro USB 6.9
    Type:
    Micro USB Type A
    Place of Origin:
    Guangdong, China
    Brand:
    SHOUHAN
    Packaging:
    REEL
    Description:
    Micro USB 6.9
    D/C:
    SH2107
    Product name:
    MICRO 5p 6.9 micro usb female connector horizontal charger
    interface type:
    USB
    Color:
    Silver
    contact resistance:
    ≤30mΩ
    insulation resistance:
    ≥100mΩ
    Withstand voltage:
    AC100V(50Hz)/min
    Operating temperature:
    -30℃~+80℃
    Output force:
    8-20N
    Input Force:
    35N MAX
    Life:
    3000 cycles min
    Product Description1

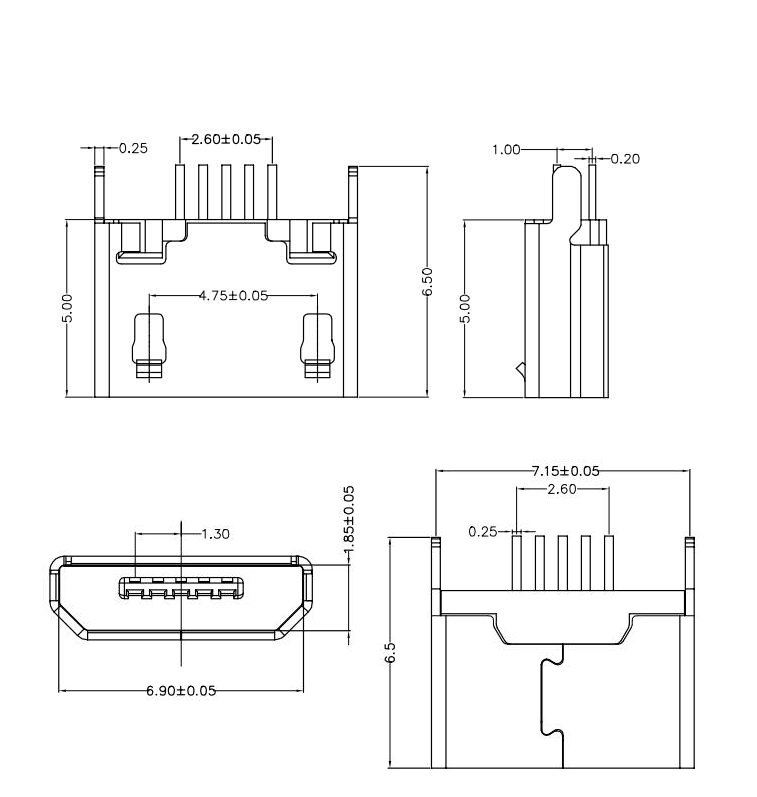

    1. Size: 6.9mm

    2. Standard: 5pin

    3. Certification: ROHS



    Product Name
    Micro 5p AF
    Model
    6.9mm
    Cycle
    3000
    temperature
    -30℃-+80℃
    voltage rating
    30V
    rated current
    1A
