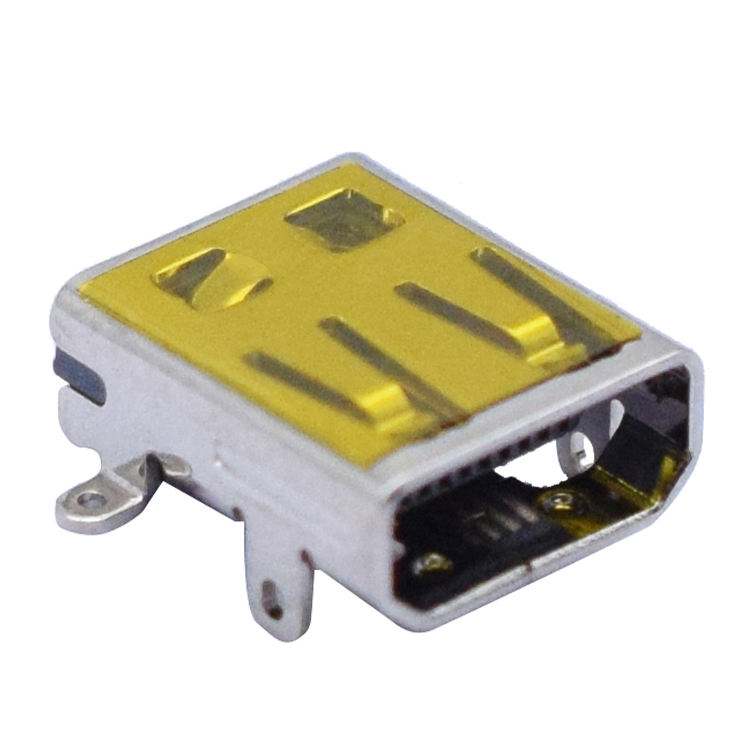

    micro female H-D-M-I connector 19Pin Insert front and stick back double row horizontal SMT

    micro female H-D-M-I connector 19Pin Insert front and stick back double row horizontal SMT Featured Image
    • micro female H-D-M-I connector 19Pin Insert front and stick back double row horizontal SMT
    • micro female H-D-M-I connector 19Pin Insert front and stick back double row horizontal SMT
    • micro female H-D-M-I connector 19Pin Insert front and stick back double row horizontal SMT
    • micro female H-D-M-I connector 19Pin Insert front and stick back double row horizontal SMT
    • micro female H-D-M-I connector 19Pin Insert front and stick back double row horizontal SMT

    Short Description:

    Place of Origin:China
    Brand:SHOUHAN
    Product name:H-D-M-I Connector
    Model number:micro H-D-M-I D 19P
    Life span:5000 (times)
    Rated voltage:40V
    Rated current:0.5A
    Operating temperature:-20℃~+85℃
    Insertion removal force:5-44.1N

    Product Detail

    Product Tags

    Main-03 Main-04 Main-05 Main-06
