    HOT SALE Micro USB connector micro 5 pin DIP USB connector female part miniature usb socket

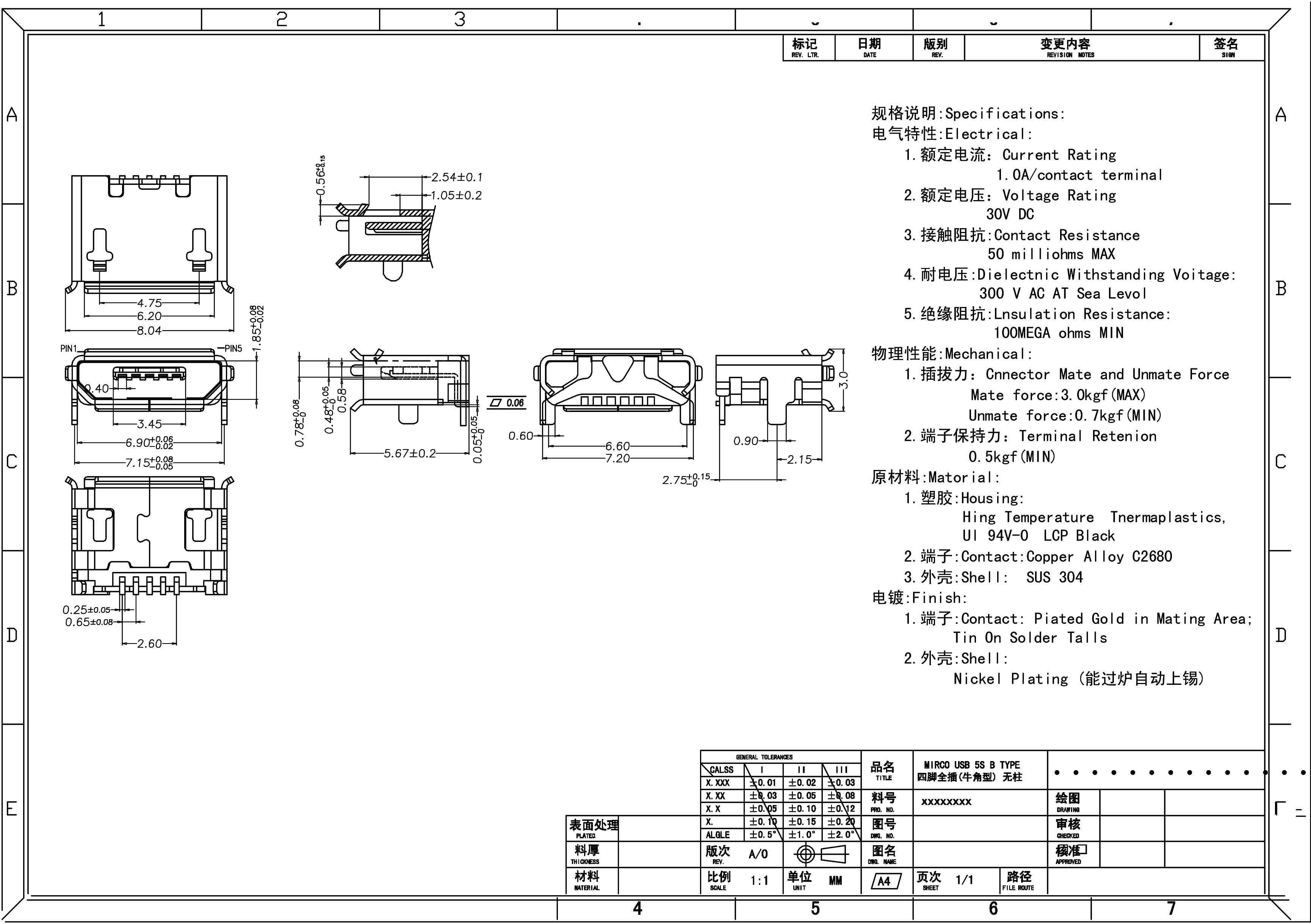

    HOT SALE Micro USB connector micro 5 pin DIP USB connector female part miniature usb socket Featured Image
    • HOT SALE Micro USB connector micro 5 pin DIP USB connector female part miniature usb socket
    • HOT SALE Micro USB connector micro 5 pin DIP USB connector female part miniature usb socket

    Short Description:

    Product descriptionItem name: Micro usb connector
    Rating: DC 30V 1A
    Insulation resistance: ≥100mΩ min. 500V DC
    Dielectric strength: 300V AC for 1 min
    Contact resistance: ≤50mΩ
    Insertion force: ≤30N
    Extraction force: ≥7N
    Usage:
    -Mainly used in high end industries,such as digital camera interface products,computer accessories,electronic toys,mobile phone charging interface and other products need to charge.

    Product Detail

    Product Tags

    Quick Details

    Place of Origin:
    China
    Brand Name:
    SHOUHAN
    Model Number:
    USB Connector smd
    Type:
    usb
    Application:
    USB
    Gender:
    Female
    Pins:
    5P
    Product name:
    USB connector micro 5 pin DIP USB connector female part
    Item:
    USB micro 5pin
    Color:
    Silver
    Connector type:
    Female Terminals
    Pin:
    5 pin
    Operating temperature:
    -20℃~85℃
    Current Rating:
    1A
    Voltage rating:
    30V
    Operating force:
    8N~35N

    1
