    mini 7 pin slide switch 2 position DC 5V 300mA slide switch

    mini 7 pin slide switch 2 position DC 5V 300mA slide switch Featured Image
    • mini 7 pin slide switch 2 position DC 5V 300mA slide switch
    • mini 7 pin slide switch 2 position DC 5V 300mA slide switch
    • mini 7 pin slide switch 2 position DC 5V 300mA slide switch
    • mini 7 pin slide switch 2 position DC 5V 300mA slide switch

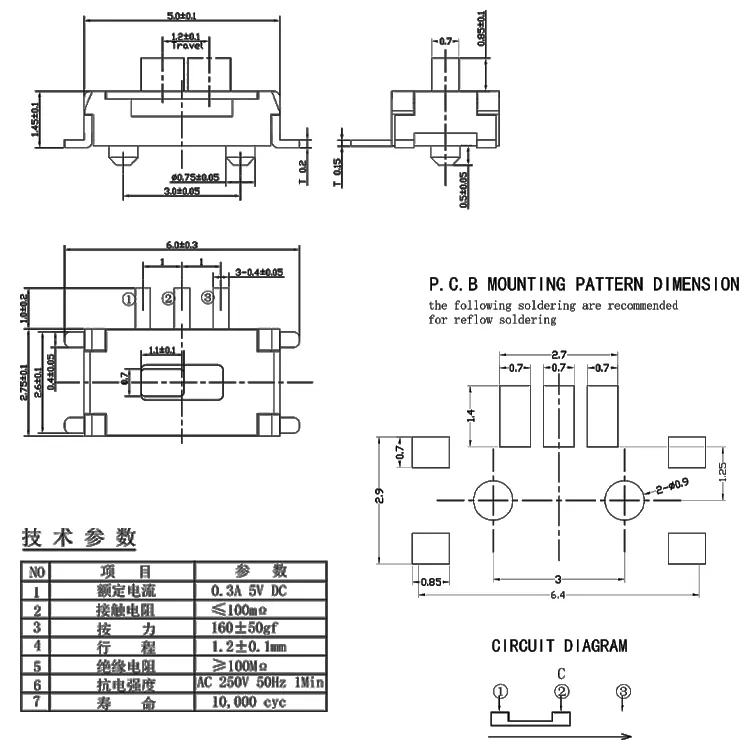

    Short Description:

    product name slide switch
    model number MSK12CO2
    rating DC 5V 300mA
    temperature range -25℃~+70℃
    contact resistance ≤100mΩ
    Insulation resistance ≥100MΩ
    operation force 160±50gf
    Travel 1.2±0.1mm
    Electric strength AC 250V(50Hz)/min
    Life 10000 cycles
