    mini push button on off switch self-locking waterproof IP67 6*6 4pin tactile switch micro momentary tact switch

    mini push button on off switch self-locking waterproof IP67 6*6 4pin tactile switch micro momentary tact switch Featured Image
    • mini push button on off switch self-locking waterproof IP67 6*6 4pin tactile switch micro momentary tact switch
    • mini push button on off switch self-locking waterproof IP67 6*6 4pin tactile switch micro momentary tact switch
    • mini push button on off switch self-locking waterproof IP67 6*6 4pin tactile switch micro momentary tact switch
    • mini push button on off switch self-locking waterproof IP67 6*6 4pin tactile switch micro momentary tact switch

    Short Description:

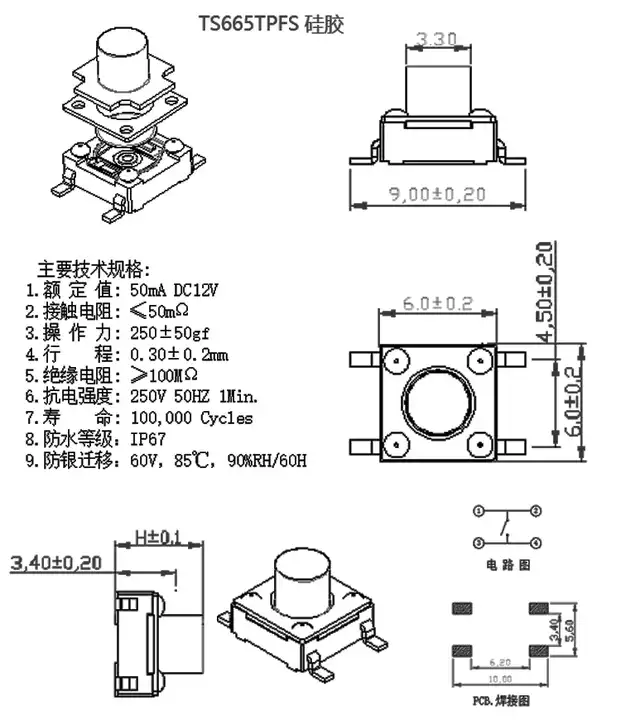

    product name 6×6 tact switch
    model number TS665TPFS
    rating 50m A DC12V
    Contact resistance ≤50MΩ
    Operating force 250±50gf
    stroke 0.35±0.2mm
    Insulation resistance ≥100MΩ
    Electric strength 250V 50HZ 1M in.
    Life span ≥100000 times
    Waterproofing class IP67
    Anti-silver migration 60V,85℃,90%RH/60H

    Product Detail

    Product Tags

    Hd5051da82abf4a2b8a2425158f22c0c66.jpg_720x720q50
