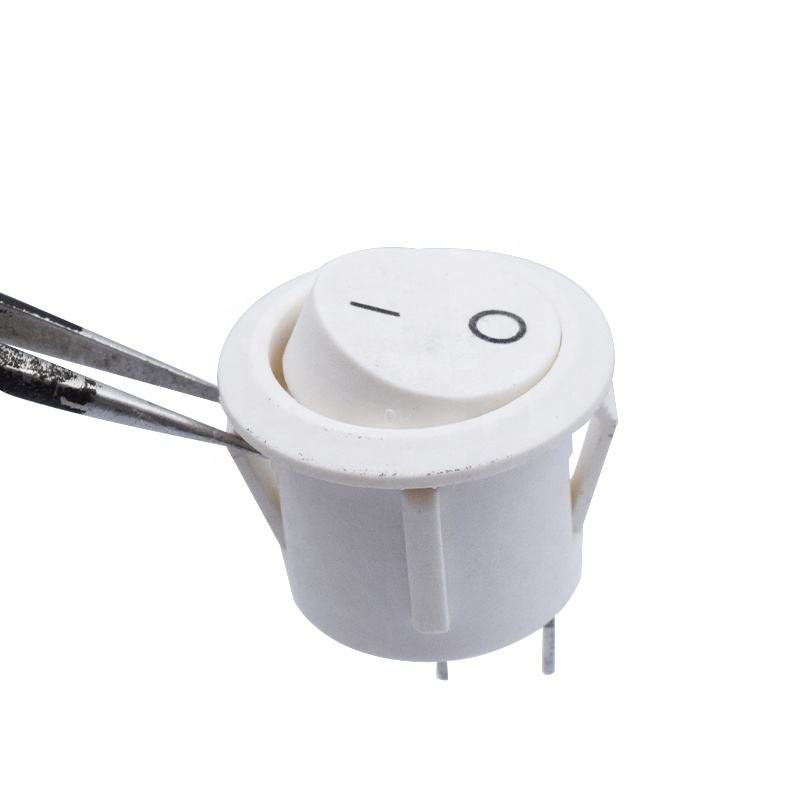

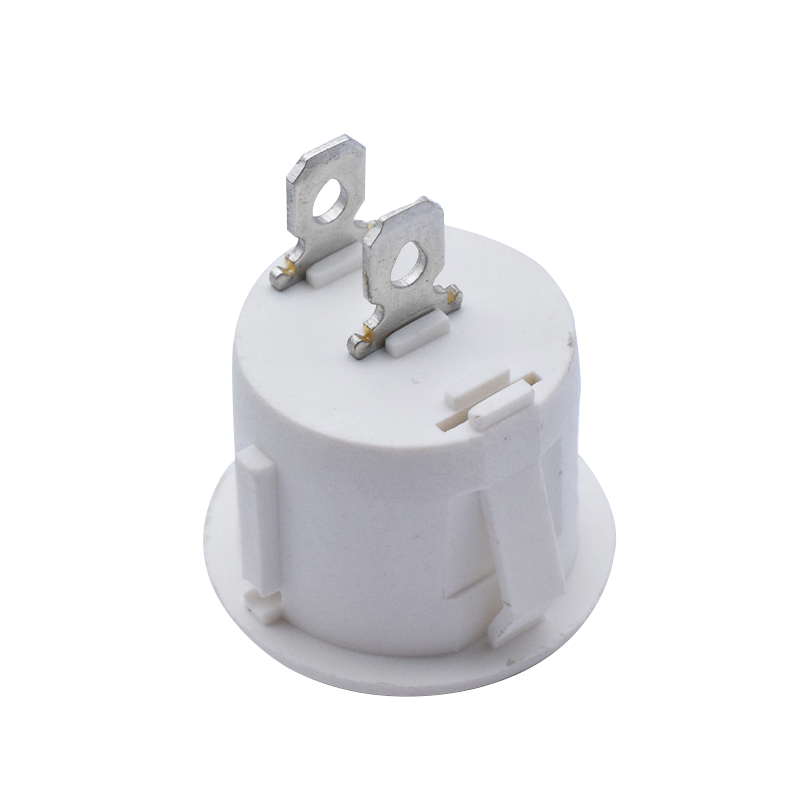

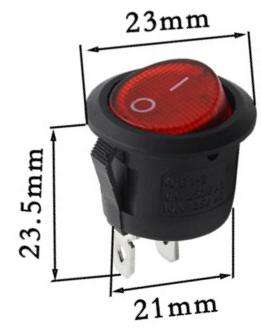

    Mounting hole 20mm series switch with light 2 Pin on-off Round Rocker Switch

    Mounting hole 20mm series switch with light 2 Pin on-off Round Rocker Switch Featured Image
    • Mounting hole 20mm series switch with light 2 Pin on-off Round Rocker Switch
    • Mounting hole 20mm series switch with light 2 Pin on-off Round Rocker Switch
    • Mounting hole 20mm series switch with light 2 Pin on-off Round Rocker Switch
    • Mounting hole 20mm series switch with light 2 Pin on-off Round Rocker Switch
    • Mounting hole 20mm series switch with light 2 Pin on-off Round Rocker Switch

    Short Description:

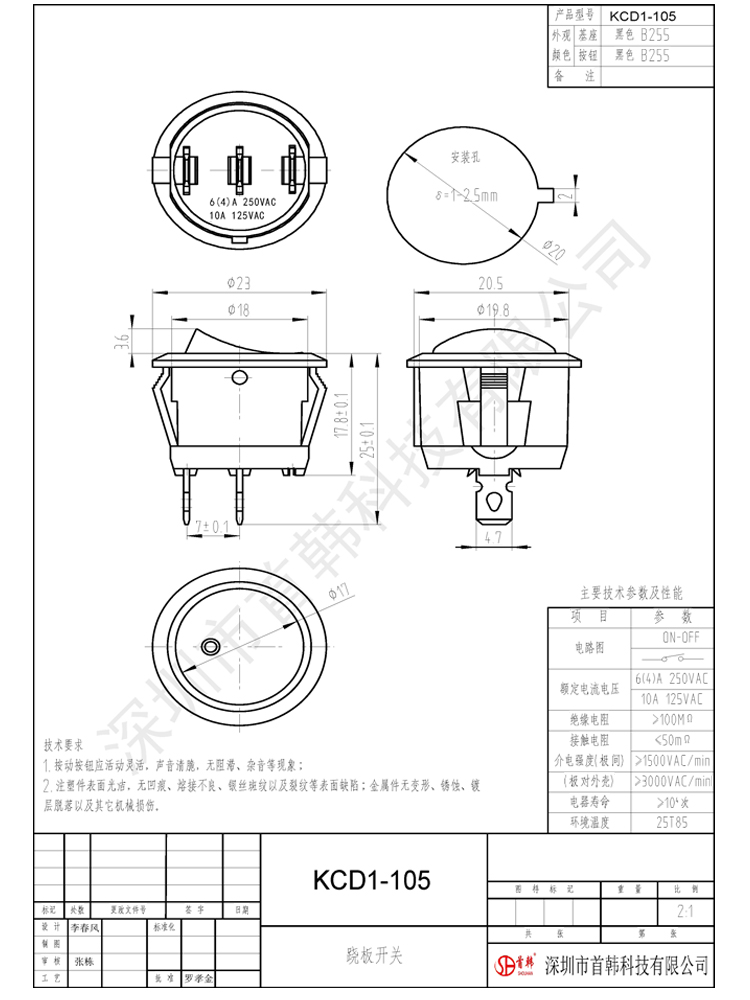

    model KCD1-105
    product name Rocker Switch
    Rated current and voltage 6(4)A  250VAC,10A  125VAC
    Insulation resistance ≥100MΩ
    Contact resistance ≤50MΩ
    Dielectric Strength (Interpole) ≥1500VAC/min
    pole pair housing ≥3000VAC/min
    Electrical life ≥10*4 times
    ambient temperature 25T85
    PIN number 2pin

    Product Detail

    Product Tags

    Detail-01 Main-04 Main-05 Detail-06
