    MST-22D18G2 6 pin on off micro slide switches handle black 12VDC 50mA

    MST-22D18G2 6 pin on off micro slide switches handle black 12VDC 50mA Featured Image
    • MST-22D18G2 6 pin on off micro slide switches handle black 12VDC 50mA
    • MST-22D18G2 6 pin on off micro slide switches handle black 12VDC 50mA
    • MST-22D18G2 6 pin on off micro slide switches handle black 12VDC 50mA

    Short Description:





    product name slide switch
    Product number MST-22D18G2
    Rated value 12VDC 50mA
    contact resistance ≤100mΩ
    Insulation resistance ≥100M Ω
    operating force 250±30gf
    full travel 2±0.1mm
    handle height 2mm
    Mechanical life 10000 times+
    switch type bipolar bipolar
    Operating temperature -30℃~+80℃

    Product Detail

    Product Tags

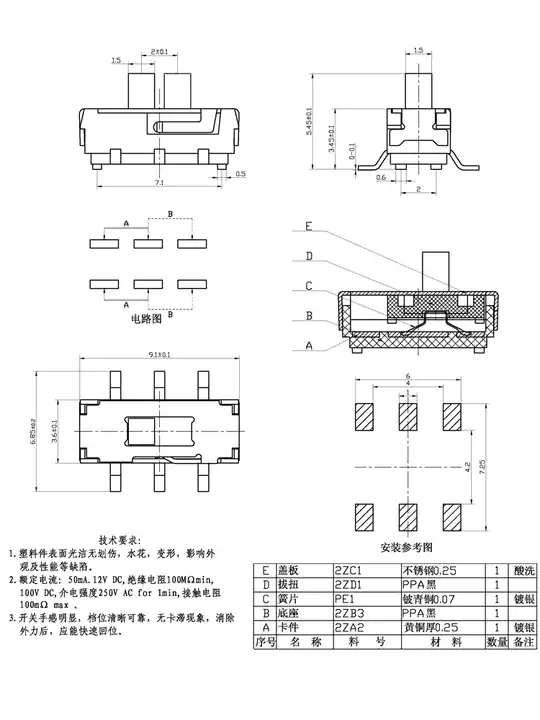

    H5d962664480d4fb398736c8fc1cc3855H.jpg_720x720q50
