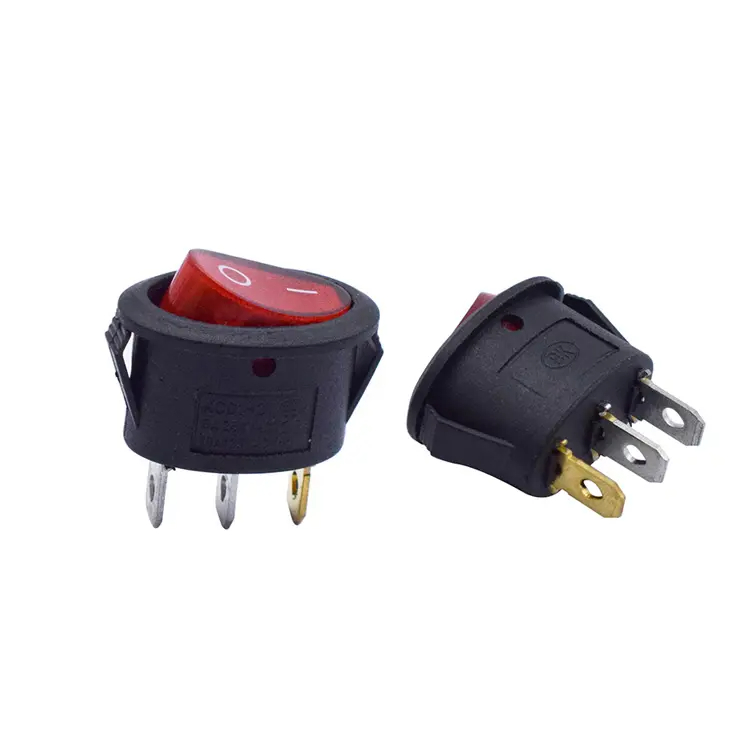

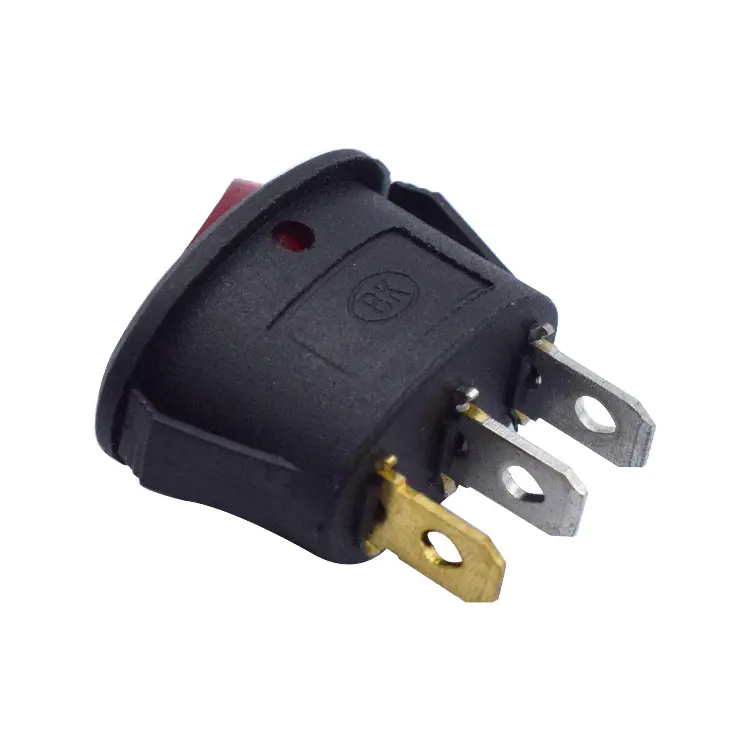

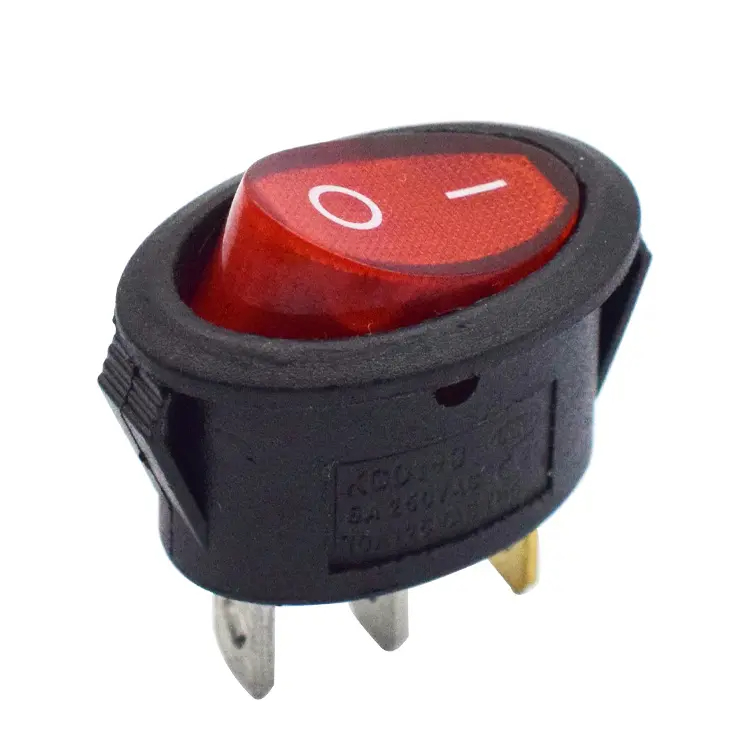

    multiple models 2 position round led boat kcd 1 rocker switch 3pin

    multiple models 2 position round led boat kcd 1 rocker switch 3pin Featured Image
    • multiple models 2 position round led boat kcd 1 rocker switch 3pin
    • multiple models 2 position round led boat kcd 1 rocker switch 3pin
    • multiple models 2 position round led boat kcd 1 rocker switch 3pin
    • multiple models 2 position round led boat kcd 1 rocker switch 3pin
    • multiple models 2 position round led boat kcd 1 rocker switch 3pin

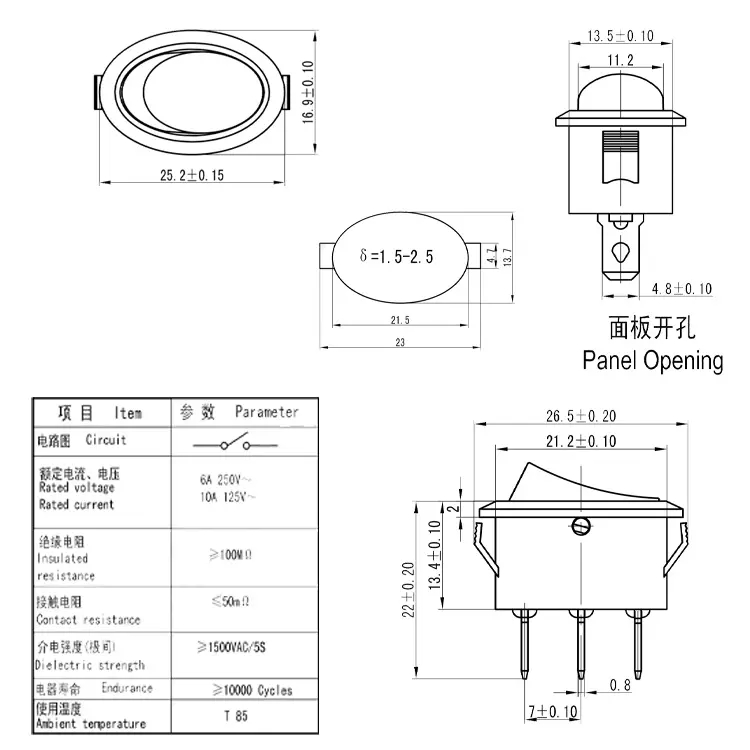

    Short Description:

    product name rocker switch
    model number KCD1-311-3P
    Rated current and voltage 6A 250V  10A 125V
    Insulated resistance ≥100MΩ
    contact resistance ≤50MΩ
    Dielectric strength ≥1500VAC/5S
    Electrical life ≥10000 times
    ambient temperature T85

    Product Detail

    Product Tags

    Main-02 (1) Main-01 Main-06 Main-05 (1)
