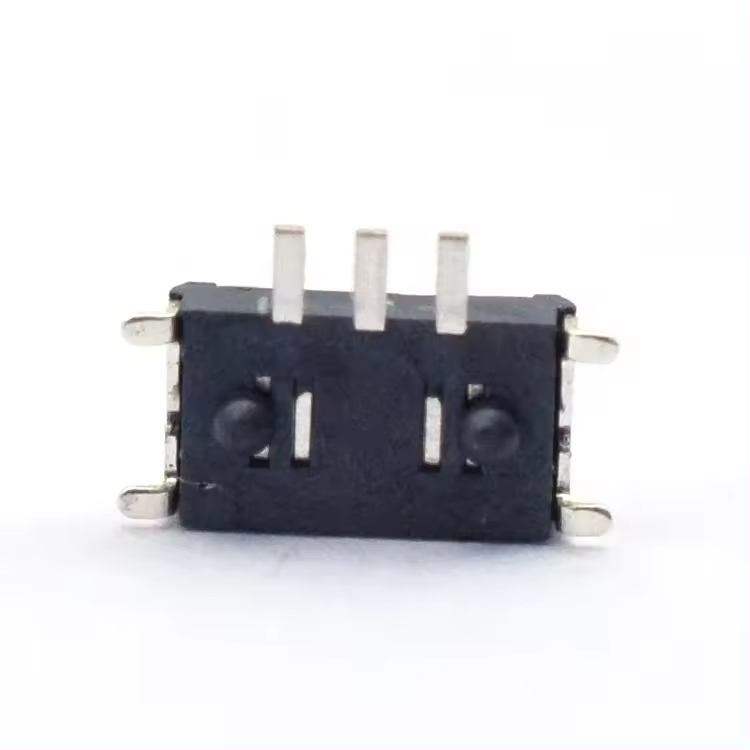

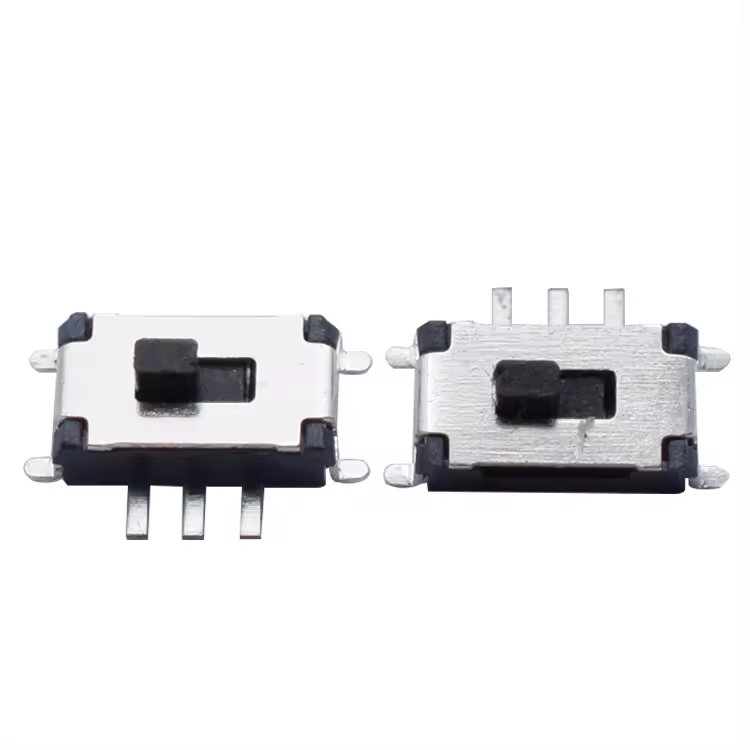

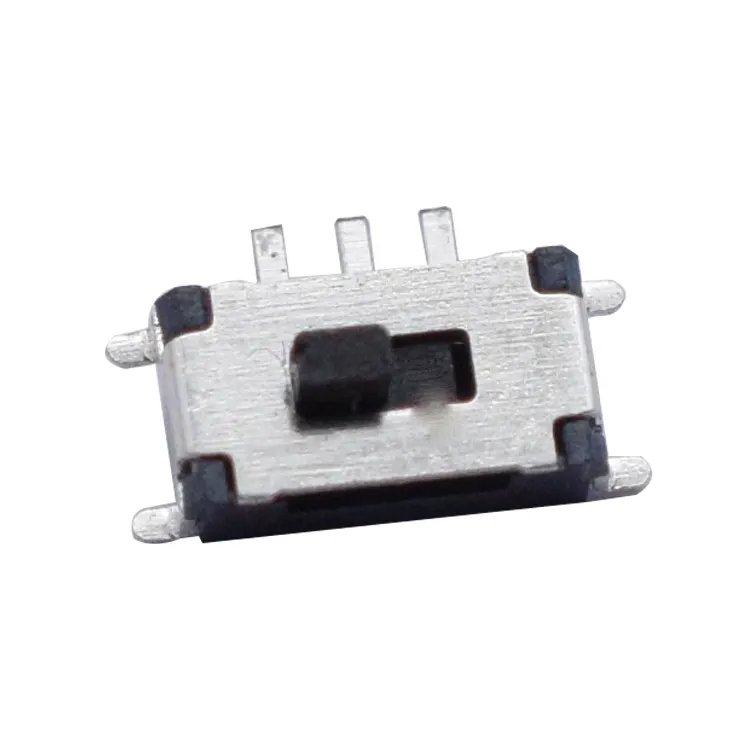

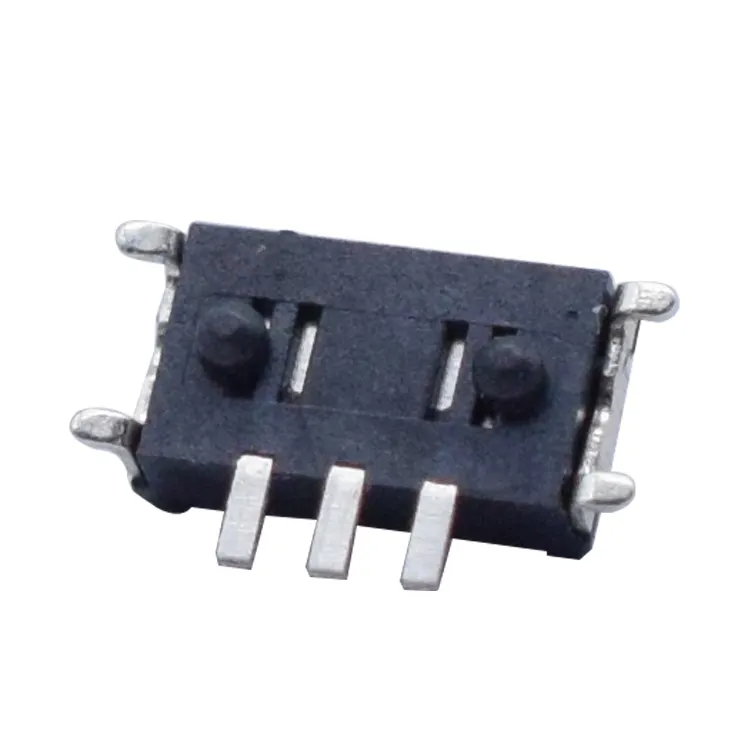

    multiple models MSK12CO2 SMD SMT mini 7 pin micro slide switch 2 position

    multiple models MSK12CO2 SMD SMT mini 7 pin micro slide switch 2 position Featured Image
    • multiple models MSK12CO2 SMD SMT mini 7 pin micro slide switch 2 position
    • multiple models MSK12CO2 SMD SMT mini 7 pin micro slide switch 2 position
    • multiple models MSK12CO2 SMD SMT mini 7 pin micro slide switch 2 position
    • multiple models MSK12CO2 SMD SMT mini 7 pin micro slide switch 2 position
    • multiple models MSK12CO2 SMD SMT mini 7 pin micro slide switch 2 position
    • multiple models MSK12CO2 SMD SMT mini 7 pin micro slide switch 2 position

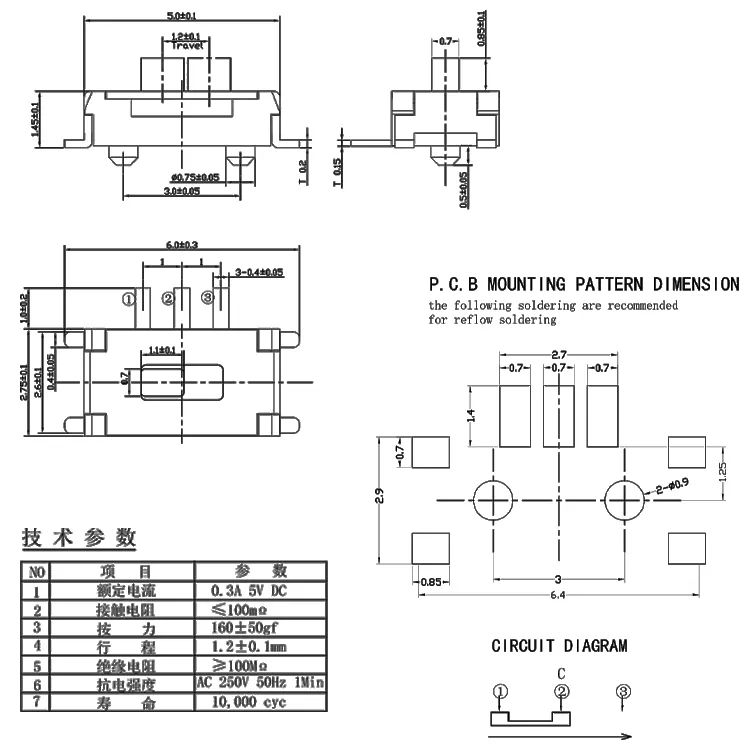

    Short Description:

    product name slide switch
    model number MSK12CO2
    rating DC 5V 300mA
    temperature range -25℃~+70℃
    contact resistance ≤100mΩ
    Insulation resistance ≥100MΩ
    operation force 160±50gf
    Travel 1.2±0.1mm
    Electric strength AC 250V(50Hz)/min
    Life 10000 cycles

    Product Detail

    Product Tags

    Main-02 Main-03 Main-04 Main-05 Main-06
