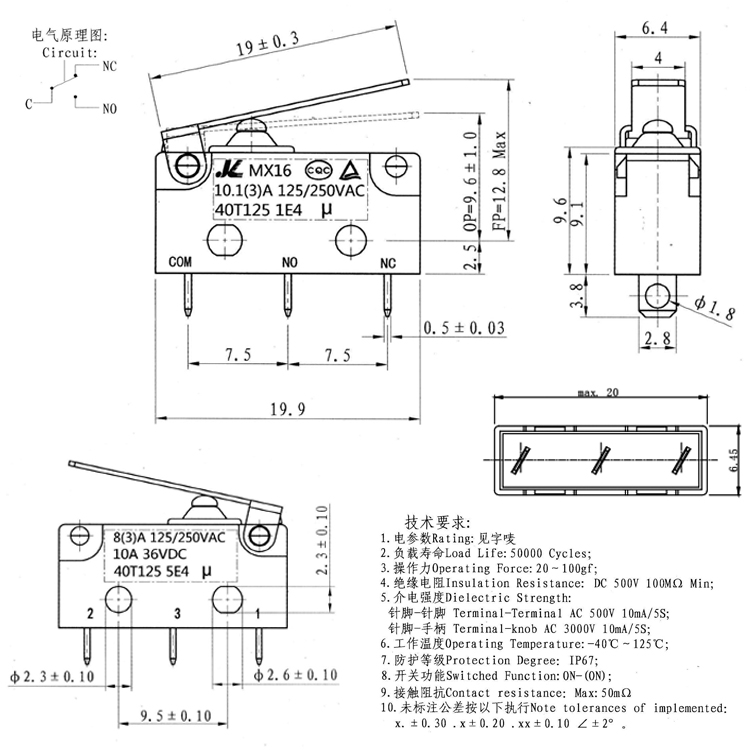

MX16-AAB-01 waterproof IP67 Momentary 3pin on off Micro switch
| product name | Waterproof Micro Switch |
| Product number | MX16-AAB-01 |
| Support customization | yes |
| load life | 50000 cycles |
| operating force | 20-100gf |
| Insulation resistance | DC 500V 100MΩ Min |
| Operating Temperature | -40℃~125℃ |
| protection degree | IP67 |
| Switched function | ON-(ON) |
| contact resistance | 50 MΩ Max |
