    one-stop purchase 1.25mm pitch 5 pin SMT type wire PCB wafer connector

    one-stop purchase 1.25mm pitch 5 pin SMT type wire PCB wafer connector Featured Image
    • one-stop purchase 1.25mm pitch 5 pin SMT type wire PCB wafer connector
    • one-stop purchase 1.25mm pitch 5 pin SMT type wire PCB wafer connector
    • one-stop purchase 1.25mm pitch 5 pin SMT type wire PCB wafer connector
    • one-stop purchase 1.25mm pitch 5 pin SMT type wire PCB wafer connector
    • one-stop purchase 1.25mm pitch 5 pin SMT type wire PCB wafer connector
    • one-stop purchase 1.25mm pitch 5 pin SMT type wire PCB wafer connector

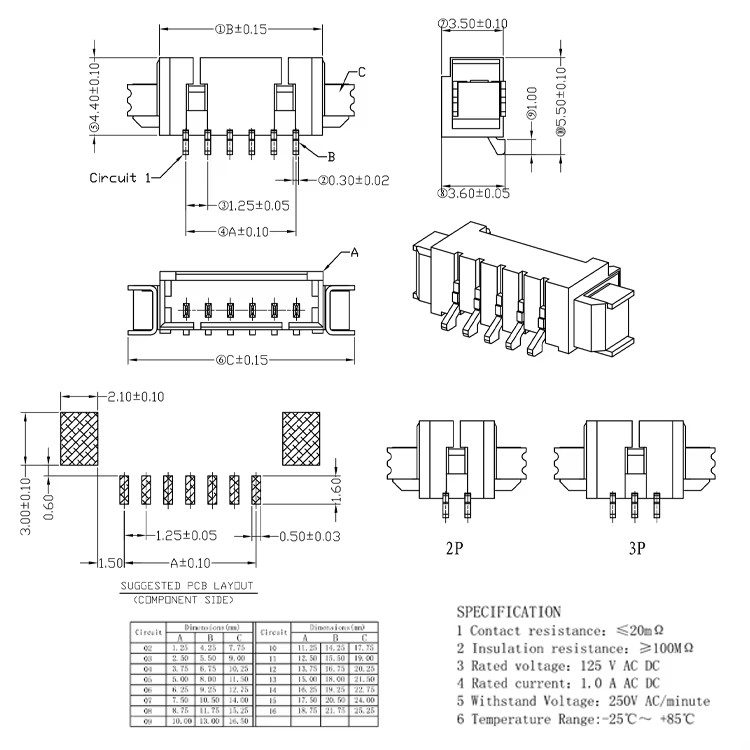

    Short Description:





    product name wafer connector
    model number 1.25-3P-WT
    contact resistance ≤200mΩ
    Insulation resistance ≥100MΩ
    rated voltage 125V AC,DC
    rated current 1.0A AC,DC
    Withstand voltage 250V AC/minute
    Temoerature range -25℃~+85℃

    Product Detail

    Product Tags

    H9977216ea32f4dbeb0c1f1135afc10242.avif
