one-stop purchase 6pin 2.54mm Single row straight insert pin header male connector pcb support customization

one-stop purchase 6pin 2.54mm Single row straight insert pin header male connector pcb support customization Featured Image

Short Description:

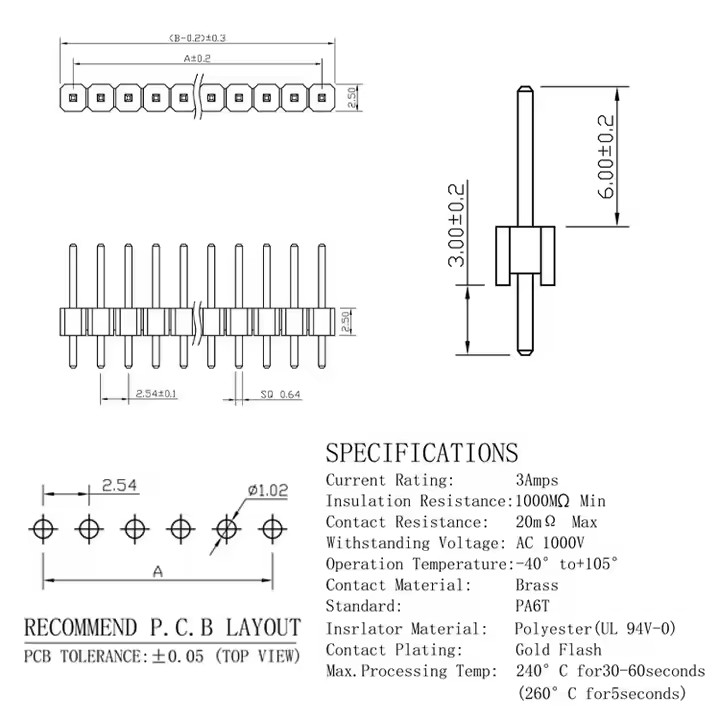

product name	pin header connector
model number	2.54PH H2.5 6PIN
current rating	3Amps
Insulation resistance	1000MΩ Min
contact resistance	20mΩ Max
Withstand voltage	AC 1000V
Operating temperature	-40℃~+105℃
Contact material	brass
standard	PBT
Insrlator Material	polyester(UL 94V-0)
contact plating	Gold Flash

Send email to us

Product Detail

Product Tags

Previous: USB Type A Dual Port 8Pin 180 Degree Angle Female Socket PCB Mount Solder Connector

Next: EVQQ2F02W 5 pin 12v 6×6 silicone button on tact switch mini push button switch manufacture

2.54 male connector

2.54mm pin header

Single row pin header
