    pcb SMT patch 8X8 momentary self-latching push button switch

    pcb SMT patch 8X8 momentary self-latching push button switch Featured Image
    • pcb SMT patch 8X8 momentary self-latching push button switch
    • pcb SMT patch 8X8 momentary self-latching push button switch
    • pcb SMT patch 8X8 momentary self-latching push button switch
    • pcb SMT patch 8X8 momentary self-latching push button switch
    • pcb SMT patch 8X8 momentary self-latching push button switch

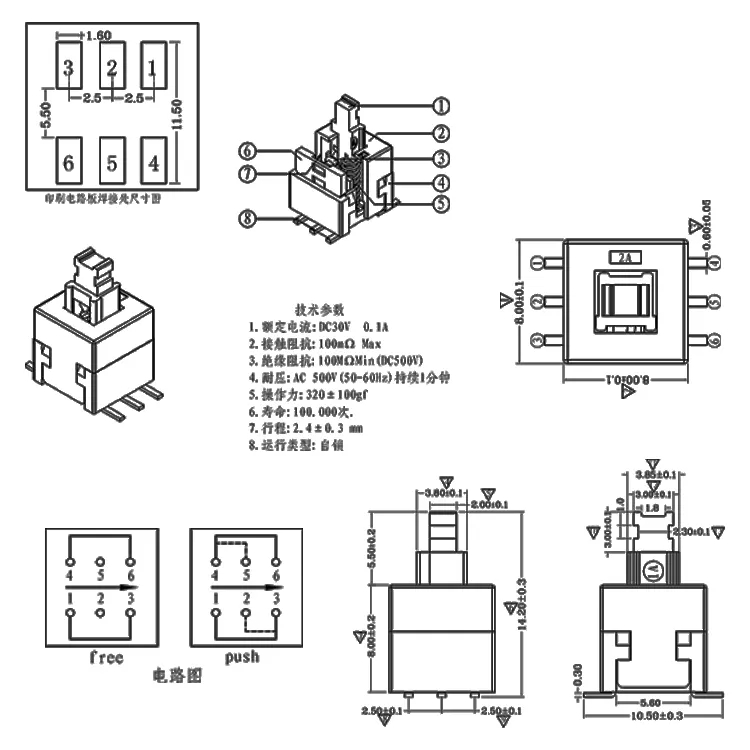

    Short Description:

    product name NON-Lock Switch
    model number 8*8 NON-Lock Switch
    rating DC30V 0.1A
    Contact resistance 100mΩ Max
    Insulation resistance 100 MΩ Min
    Withstand voltage AC 500V(50Hz)/min
    Operating force 320±100gf
    Life span ≥100000 times
    journey 2.4±0.3mm
