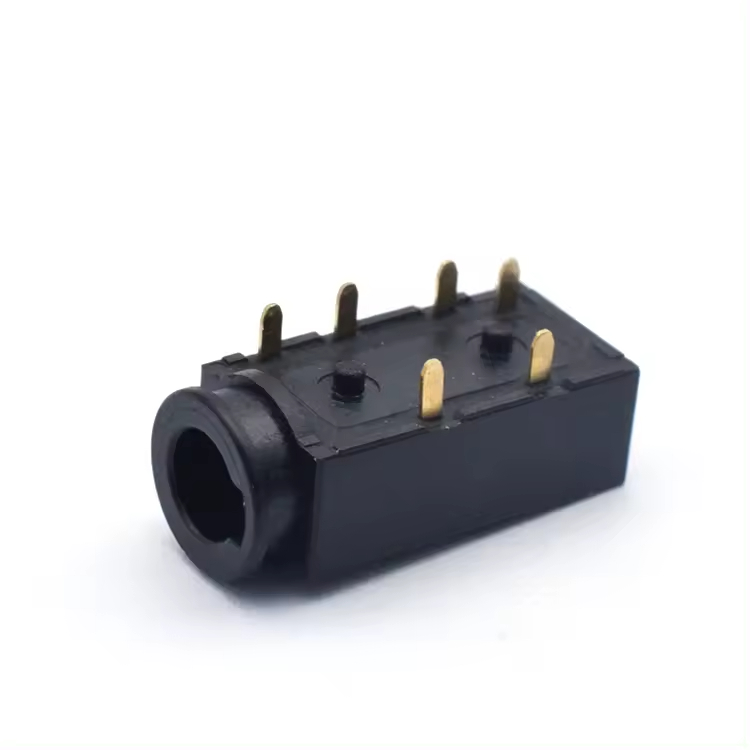

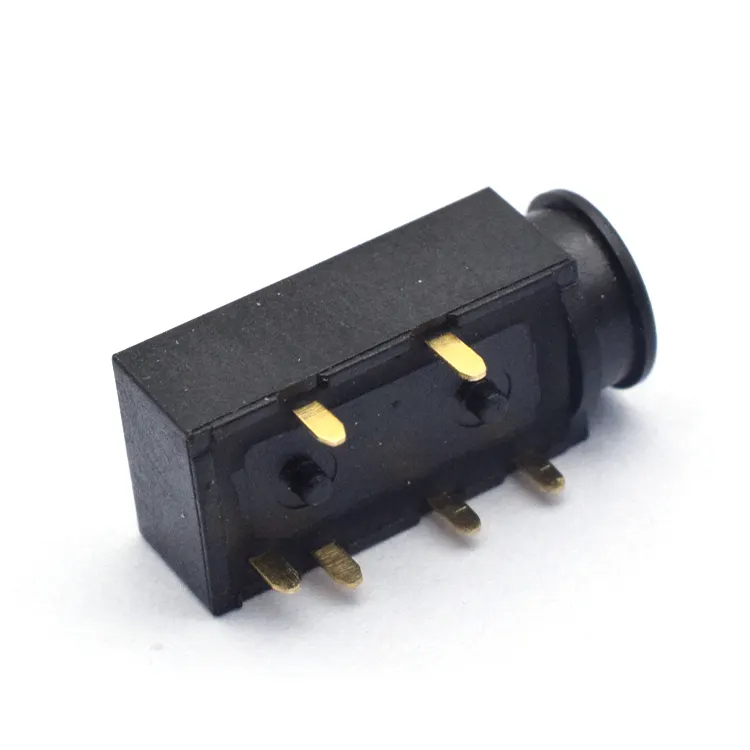

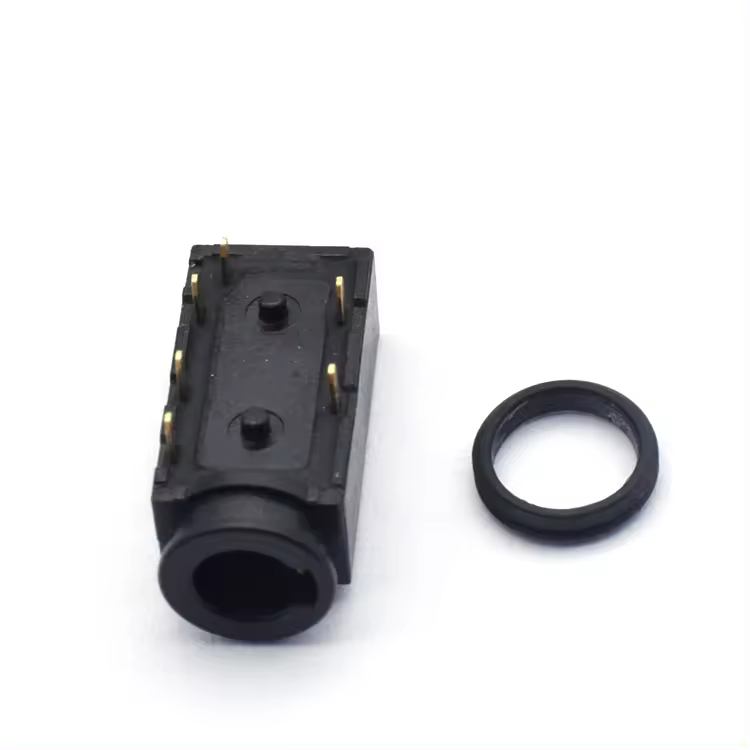

    PJ-1841 IP67 Audio Jack 6 pin Pcb DIP Panel female headphone jack socket connector

    PJ-1841 IP67 Audio Jack 6 pin Pcb DIP Panel female headphone jack socket connector Featured Image
    • PJ-1841 IP67 Audio Jack 6 pin Pcb DIP Panel female headphone jack socket connector
    • PJ-1841 IP67 Audio Jack 6 pin Pcb DIP Panel female headphone jack socket connector
    • PJ-1841 IP67 Audio Jack 6 pin Pcb DIP Panel female headphone jack socket connector
    • PJ-1841 IP67 Audio Jack 6 pin Pcb DIP Panel female headphone jack socket connector
    • PJ-1841 IP67 Audio Jack 6 pin Pcb DIP Panel female headphone jack socket connector

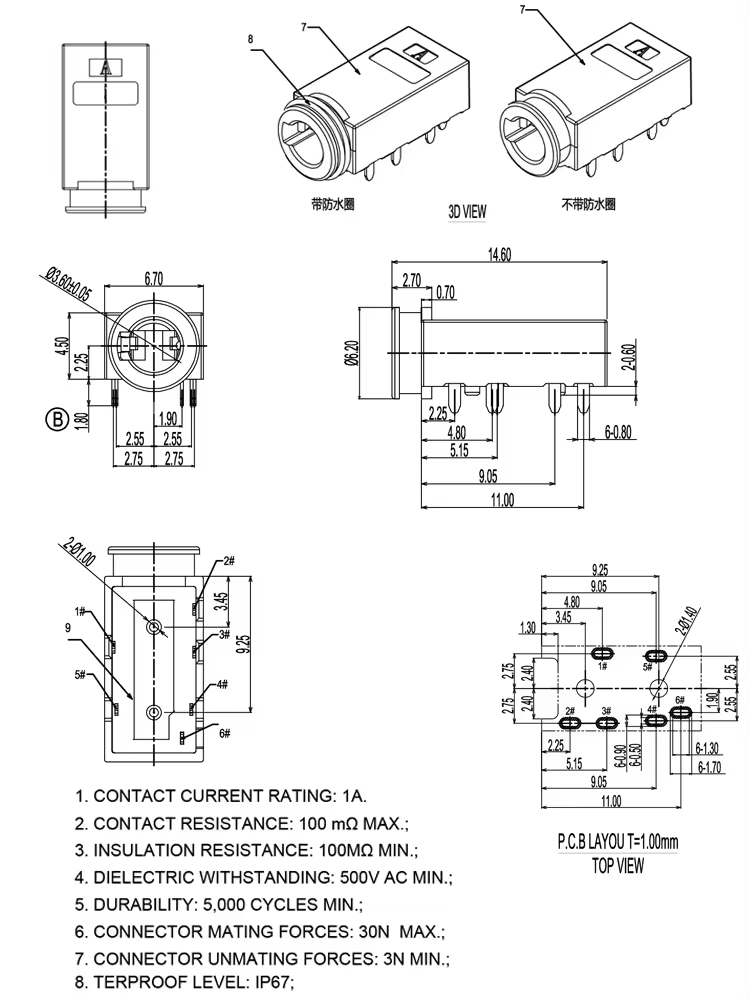

    Short Description:

    product name headphone socket
    Product number PJ-1841
    Certification ROHS
    contact current rating 1A
    contact resistance 100 mΩ Max
    Insulation resistance 100 MΩ Min
    dielectric withstanding 500V AC for 1Min
    durability 5000 cycles min
    Insertion force 3-30N
    waterproof level IP67

    Product Detail

    Product Tags

    Main-02 Main-01 Main-05 Main-04
