    PJ-210 3 pin female headphone audio socket phone Jack socket 30V 0.2A

    PJ-210 3 pin female headphone audio socket phone Jack socket 30V 0.2A Featured Image
    • PJ-210 3 pin female headphone audio socket phone Jack socket 30V 0.2A
    • PJ-210 3 pin female headphone audio socket phone Jack socket 30V 0.2A
    • PJ-210 3 pin female headphone audio socket phone Jack socket 30V 0.2A
    • PJ-210 3 pin female headphone audio socket phone Jack socket 30V 0.2A
    • PJ-210 3 pin female headphone audio socket phone Jack socket 30V 0.2A

    Short Description:

    Customized:Yes
    Customized support:yes
    Place of Origin:Guangdong, China
    Brand Name:SHOUHAN
    Model Number:PJ-210
    Rated Voltage:30V
    Rated Current:0.2A
    WIFI:NO
    product name:headphone socket
    Product number:PJ-210
    Rated electrical load:30V 0.2A
    Contact resistance:≤0.02Ω
    Insulation resistance:≥100M Ω
    Pressure resistance:AC250V(50Hz)min
    Insertion force:3-10N
    life:5000 cycles
    Material:copper head
    Warranty:3 months
    Certification:CE

    Product Detail

    Product Tags

    Feature：

    ·Material: plastic and metal. Solid connection switch with waterproof rubber cap, more convenient to operate. Delicate appearance with strong Construction. Look chic and high-end on your equipment
    · Easy to install, Each of the terminals has a machine screw for quick connections.

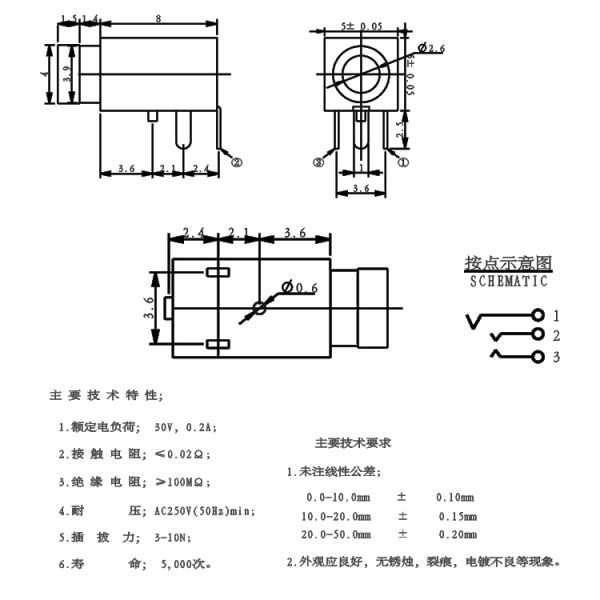

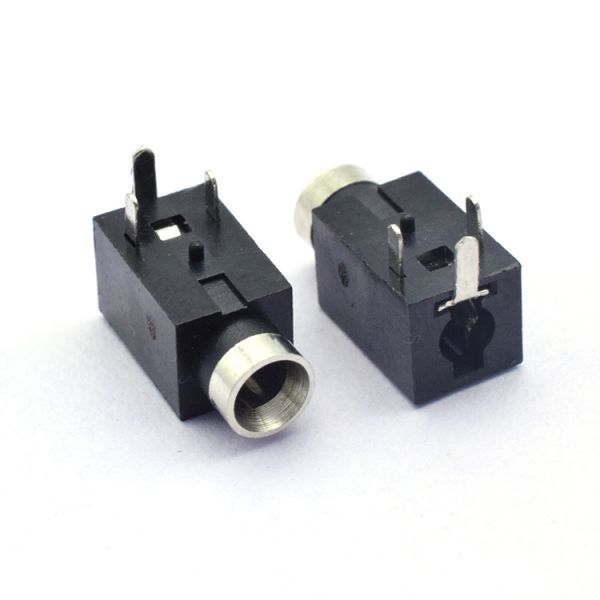

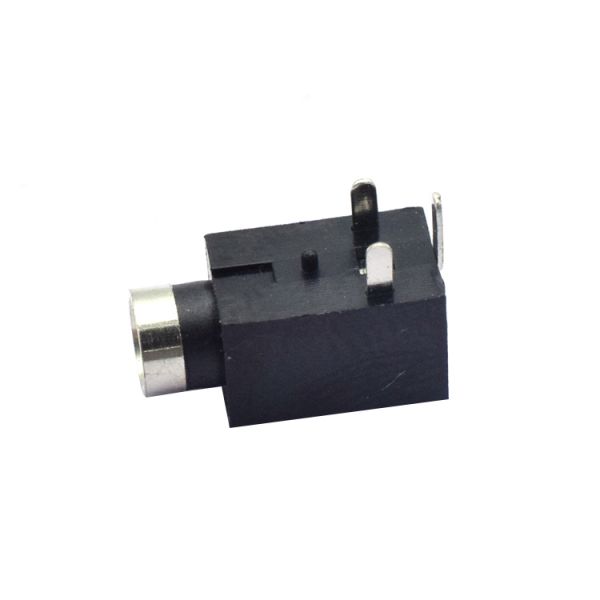

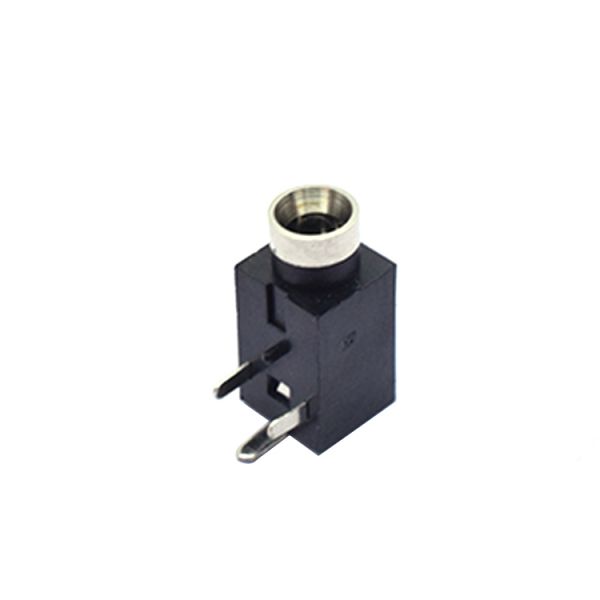

    Hf6fa9d0399b94f09b44a2031a9e73df3c Ha2e9469889624ad4954be206ecdc3207Y Ha84e22c127e54d71b3cc334d53e0e6ddM Hebe99529e0354e47b9bab231e9e64976M
