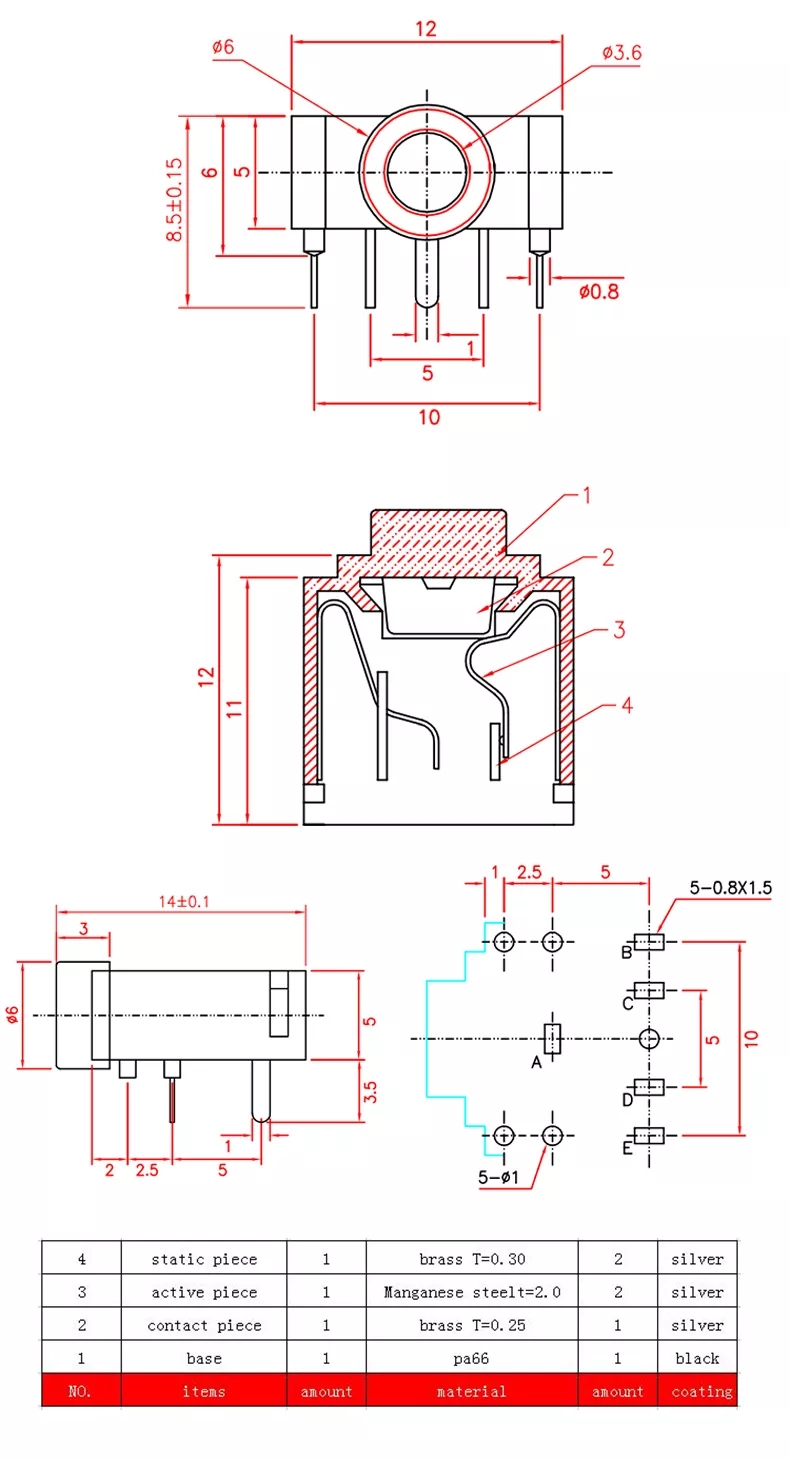

PJ-307 PJ307 3.5mm headphone jack female earphone socket 5 pin 5p audio port

Short Description:

Product name PJ-307 PJ307 3.5mm headphone jack female earphone socket 5 pin 5p audio port
Rating DC 30V 1A
Contact resistance ≤30mΩ
Insulation resistance ≥100MΩ
Withstand voltage 500V AC
Insertion and extraction force 3-30N
Life test 5,000 cycles

Product Detail

Product Tags




Application of Head phone jack:

1. Audio and video products: MP3, MP4, DVD;

2. Digital products: digital camera, digital camera, etc;

3. Remote control: remote control for vehicle, roll door and home anti-theft products;

4. Communication products: mobile phone, car phone, telephone, building equipment, PDA, etc;

5. Household appliances: TV, microwave oven, rice cooker, electric wind, electronic body scale, electronic fat scale, electronic kitchen scale, etc;

6. Security products: videophone, monitor, etc;

7. Toys: electronic toys, etc;

8. Computer products: camera, recorder, etc;

9. Fitness equipment: running machine, massage chair, etc;
